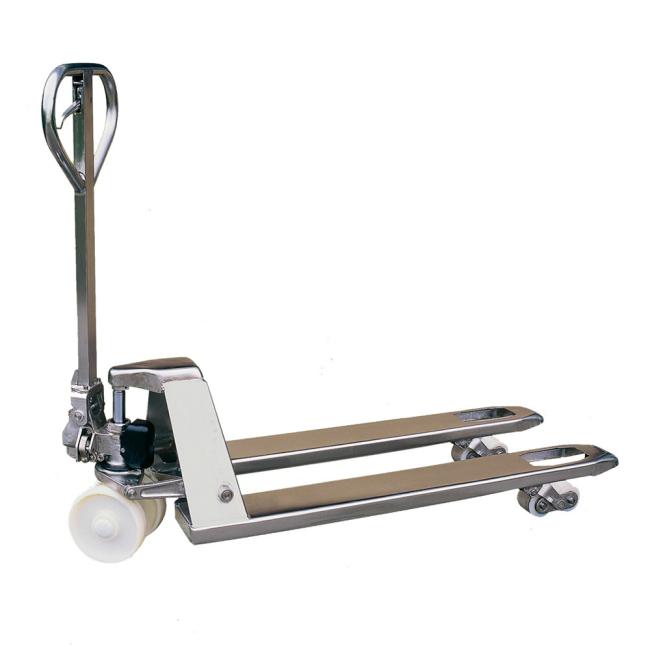

HPT30N CE Galvanized 2000kg 2500kg Hydraulic Hand Pallet Truck
Multi function hand pallet jack 2500kg 2.5 ton galvanized manual pallet truck
Features
Fully enclosed fork front end, acid resistant chassis, durable, compact and flexible
The design of stainless steel manual pallet truck is the first choice for operation in humid or harsh environment, and its advantages are particularly prominent in the specific working environment requiring absolute hygiene. According to different operation requirements, there are different designs to choose from.
Kad has rich experience in the production of stainless steel manual pallet carrier for many years, which ensures reliable performance and strong kinetic energy.
Description
All parts are made of stainless steel, including hydraulic pump, fork rack, handle, push rod, bearing, bolt and bolt, etc.It is suitable for meat or other food industry, milk canning and all areas where humic acid agent is used
Parameters
| Item | Galvanized | Stainless | |
| Capacity Q | (kg) | 2500 / 3000 | 2000 |
| Min.fork height H | (mm) | 75/85 | 75/85 |
| Max.fork height H1 | (mm) | 188 /198 | 188 /198 |
| Steering wheel | (mm) | 180X50 | 180X50 |
| Load roller | (mm) | 74X70 80X70 | 74X70 80X70 |
| Size of fork ExS | (mm) | 160 | 160 |
| Width overall forks B | (mm) | 550/685 | 550 / 685 |
| Fork length L | (mm) | 1150 /1220 | 1150 /1220 |
| Net wpinht | (kg) | 79 | 82 |
