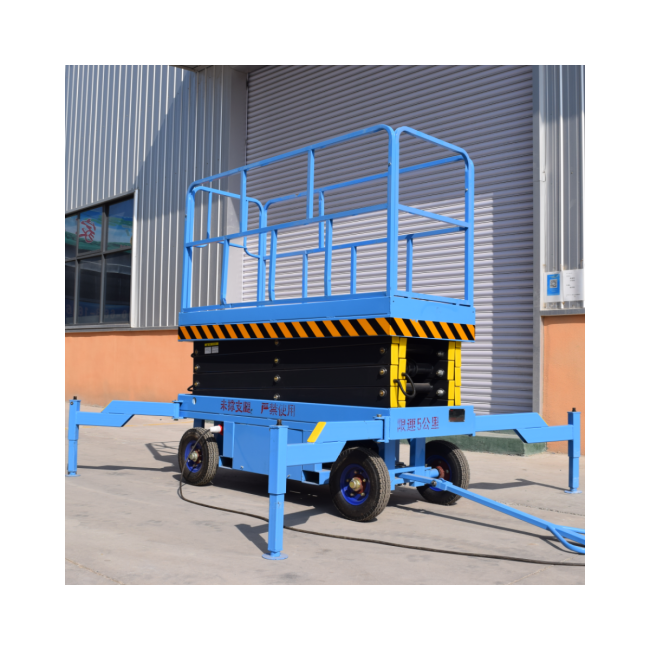

It is mainly used for the installation and maintenance of star hotels, modern factories, business halls, hotels, lobbies, restaurants, stations, exhibition halls, shopping malls and other narrow spaces, and is a good helper for equipment maintenance and paint decoration; it can pass through ordinary doors and elevators easily, with low energy consumption, no pollution, and no damage to the ground.It can be easily pushed to the designated place with beautiful structure, compact body, light weight, safe and reliable.
| Model | MX580S | MX600SN | MX800SN | MX800S | MX1000S | MX1200S |
| S.W.L | 230kg | 230kg | 230kg | 450kg | 320kg | 320kg |
| S.W.L on Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max.Workers Number | 2 | 2 | 2 | 2 | 2 | 2 |
| Working height max | 7.8m | 8m | 10m | 10m | 12m | 13.8m |
| Platform height max | 5.8m | 6m | 8m | 8m | 10m | 11.8m |
| Overall Length | 1.81m | 2.43m | 2.43m | 2.43m | 2.43m | 2.43m |
| Overall Width | 0.76m | 0.81m | 0.81m | 1.15m | 1.15m | 1.15m |
| Overall Height (Rails Up) | 2.16m | 2.18m | 2.3m | 2.31m | 2.42m | 2.55m |
| Overall Height (Rails Down) | 1.82m | 1.85m | 1.87m | 1.76m | 1.91m | 2.03m |
| Platform size (L*W) | 1.67m*0.74m | 2.27m*0.81m | 2.27m*0.81m | 2.27m*1.12m | 2.27m*1.12m | 2.27m*1.12m |
| Platform extension size | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m |
| Ground Clearance (Stowed) | 0.09m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m |
| Ground Clearance (Raised) | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m |
| Wheelbase | 1.36m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m |
| Turning radius (inside) | 0m | 0m | 0m | 0m | 0m | 0m |
| Turning radius (outside) | 1.64m | 2.10m | 2.10m | 2.20m | 2.20m | 2.20m |
| Lift/Drive Motor | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw |
| Travel Speed (Stowed) | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h |
| Travel Speed (Raised) | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h |
| Raise/Lower time | 18/22sec | 35/25sec | 40/30sec | 40/30sec | 60/40sec | 70/45sec |
| Power source | 4*6V/210Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/240Ah | 4*6V/260Ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum Working Slope | 1.5°/3° | 2°/3° | 1.5°/3° | 2°/3° | 2°/3° | 1.5°/3° |
| Tire size | 305*100 | 380*129 | 380*129 | 380*129 | 380*129 | 380*129 |
| Weight | 1400kg | 1945kg | 2100kg | 2175kg | 2468kg | 2830kg |
Main Features
Safety Features of Man pushing Around Aerial Work Platform
1.Toe protection boards on the platform
2.Anti-skid deck on the platform
3.Auxiliary Lowering
4.Dual limit switch for safety
5.Operation voltage at 24V
6.Safety belt holding
7.Anti-burst valve on the cylinder
8.Emergency stop button both on platform and ground
9.Short Circuit and leakage protection system for AC version
10.Fuse for DC version for electric shock protection

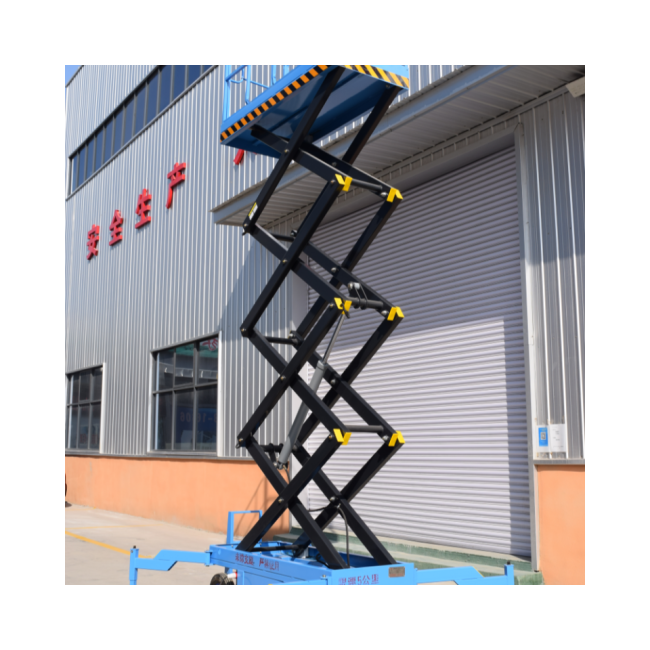

The double scissor lift is lightweight, corrosion-resistant, and aesthetically pleasing. Simultaneously adopting a double mast operation mode makes the equipment more stable and reliable during operation. In addition, the device also has the characteristic of stable lifting, which can ensure the safety and stability of goods during the lifting process.
Stable lifting and lowering
The double scissor lift adopts advanced mechanical structure and control system, which can ensure the safety and stability of goods during the lifting process. At the same time, the equipment is also equipped with safety protection devices and fault alarm systems, which can effectively ensure the safety and stability of the equipment.
