Inverter Transformer Inverter 12v Inverter Sug Fronius Inverter 15kva Inverter Inverter Ac
Price:
$245-$255
MOQ:
1pcs
Delivery Time:
15-20days
Brand:
SUG
Product Description

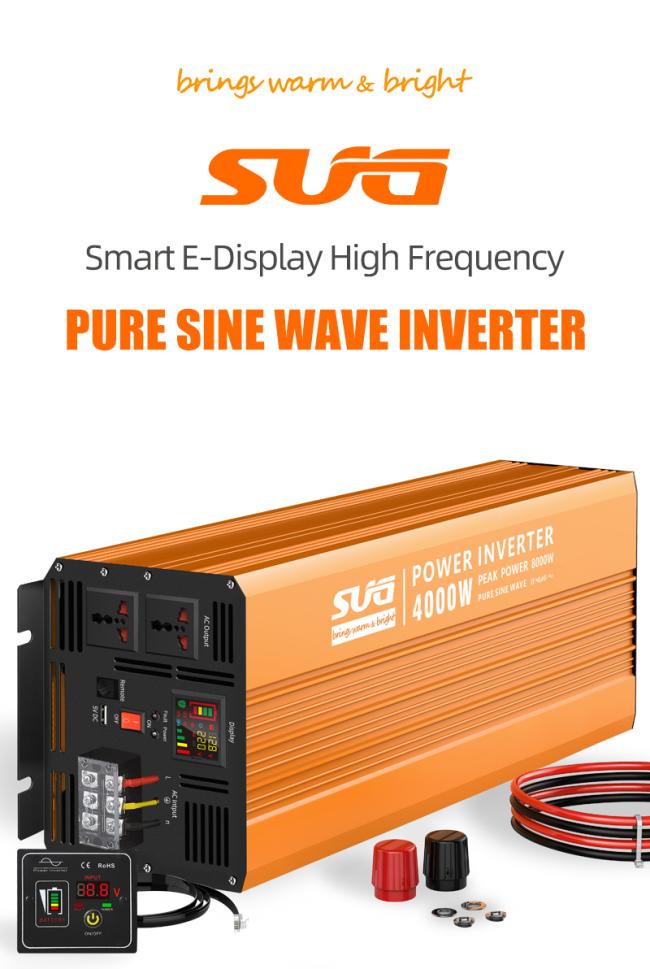

Inverter Transformer Inverter 12v Inverter Sug Fronius Inverter 15kva Inverter Inverter Ac
The voltage of high-tech energy inverter on SUG is about 220V±3%, which is different from many inverters in the market when the output voltage drops rapidly when the load is output. Greatly affects the running state of the load. SUG high and new energy inverter can still output 220V voltage stably and run at full load to ensure user safety.
| Model | SGPE4000-121 | SGPE4000-122 | SGPE4000-241 | SGPE4000-242 | SGPE4000-481 | SGPE4000-482 |
| Rated Power | 4000W | |||||
| Surge Power | 8000W(few seconds) | |||||
| Input Voltage | 12VDC | 24VDC | 48VDC | |||
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5VDC | |||||
| Frequency | 50Hz±3 or 60Hz±3 | |||||
| Output Waveform | Pure Sine Wave | |||||
| Soft Start | YES | |||||
| AC Regulation | THD<3%(Linear Load) | |||||
| Output Efficiency | 94% MAX | |||||
| No Load Current | 2.6A | 1.3A | 0.6A | |||
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V | |||
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | |||
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | |||
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | |||
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | |||
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V | |||
| Cooling Way | Intelligent Cooling Fan | |||||
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit | |||||
| Working Temperature | -10ºC - +50ºC | |||||
| Net Dimension | 48.5*21.6*15.6cm (L×W×H) | |||||
| Meas./Ctn | 63.5*30.8*24cm/1pcs | |||||
| N.W./Unit | 10.5kg | |||||
| G.W./Ctn | 12.7KGS | |||||
| Packing | Honeycomb carton | |||||
| Warranty | 2 Years | |||||
