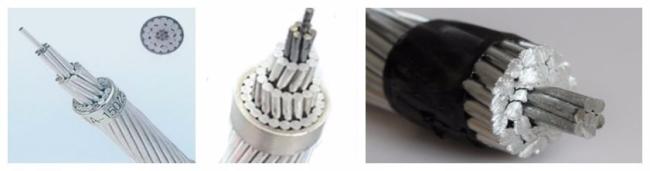

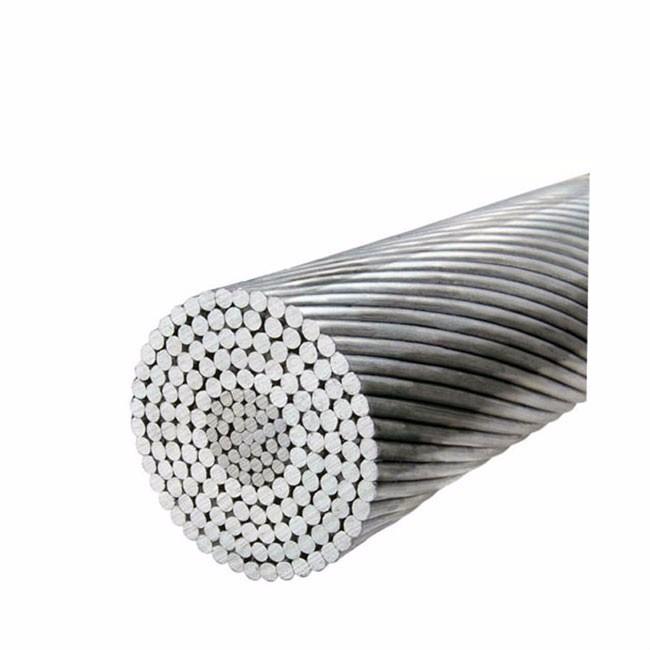

Aac Ant Acsr Drake All Aluminium Conductor 11.0mm Diameter
Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross linked polyethylene (XLPE) insulated conductors.
2. Standards: IEC 60502/BS/DIN/ASTM/GB/NF C 33-209
3. Construction
PHASE CONDUCTORS : Phase conductors made of aluminium wires are circular stranded, rounded and compacted with smooth circular surface. Our products are available 16 mm2 as solid, 25 to 70 mm2 7 wired; from 95 mm2 to onwards as 19 wired confirming TS 11654.
MESSENGER (NEUTRAL) CONDUCTOR : Bare, round, stranded and compacted aluminium alloy (294 N/mm2).
INSULATION : Phase conductors of Aerial Bundled Cables are insulated by black coloured PE or XLPE which are weather resistant.
|
Conductor size
(mcm) |
Number and diameter of wire (mm)
|
Cross-sectional Area
(mm2) |
Overall diameter (mm)
|
Weight (kg/km)
|
Calculated Breaking load
|
Calculated D.C.
resistance At 20℃ 20℃ (ohm/km) |
|
|
kgf
|
kN
|
||||||
|
66.36
|
7/2.47
|
33.54
|
7.41
|
92
|
1087
|
10.66
|
0.9987
|
|
77.47
|
7/2.67
|
39.19
|
8.01
|
108
|
1270
|
12.45
|
0.8547
|
|
105.60
|
7/3.12
|
53.52
|
9.36
|
148
|
1734
|
17.00
|
0.6259
|
|
123.30
|
7/3.37
|
62.44
|
10.01
|
172
|
2023
|
19.84
|
0.5364
|
|
133.10
|
7/3.50
|
67.35
|
10.50
|
186
|
2091
|
20.51
|
0.4973
|
|
155.40
|
7/3.78
|
78.55
|
11.34
|
217
|
2439
|
23.92
|
0.4264
|
|
167.80
|
7/3.93
|
84.91
|
11.79
|
234
|
2636
|
25.85
|
0.3945
|
|
195.70
|
7/4.25
|
99.30
|
12.75
|
274
|
3083
|
30.23
|
0.3373
|
|
211.60
|
7/4.42
|
107.4
|
13.26
|
296
|
3335
|
32.71
|
0.3119
|
|
246.90
|
7/4.77
|
125.1
|
14.31
|
345
|
3884
|
38.09
|
0.2678
|
|
394.50
|
19/3.66
|
199.9
|
18.30
|
551
|
6012
|
58.96
|
0.1676
|
|
400.00
|
19/3.69
|
203.2
|
18.45
|
560
|
6112
|
59.94
|
0.1648
|
|
450.00
|
19/3.91
|
228.1
|
19.55
|
629
|
6861
|
67.28
|
0.1468
|
|
465.40
|
19/3.98
|
236.4
|
19.90
|
652
|
7110
|
69.73
|
0.1417
|
|
500.00
|
19/4.12
|
253.3
|
20.60
|
698
|
9619
|
74.72
|
0.1322
|
|
550.00
|
37/3.10
|
279.3
|
21.70
|
770
|
8577
|
84.11
|
0.1199
|
|
559.00
|
19/4.36
|
283.7
|
21.80
|
782
|
8533
|
83.64
|
0.1181
|
|
600.00
|
37/3.23
|
303.2
|
22.61
|
836
|
9311
|
91.31
|
0.1105
|
|
650.00
|
37/3.37
|
330.0
|
23.59
|
910
|
10134
|
99.38
|
0.1015
|
|
652.40
|
19/4.71
|
331.0
|
23.55
|
913
|
9956
|
97.64
|
0.1012
|
|
700.00
|
37/3.49
|
354.0
|
24.43
|
976
|
10418
|
102.2
|
0.09462
|
|
740.00
|
37/3.59
|
374.5
|
25.13
|
1033
|
11022
|
108.1
|
0.08944
|
|
750.00
|
37/3.62
|
380.8
|
25.34
|
1050
|
11207
|
109.9
|
0.08796
|
|
800.00
|
37/3.73
|
404.3
|
26.11
|
1115
|
11899
|
116.7
|
0.08285
|
|
900.00
|
37/3.96
|
455.7
|
27.72
|
1256
|
13411
|
131.5
|
0.07350
|
|
927.20
|
37/4.02
|
469.6
|
28.14
|
1295
|
13821
|
135.5
|
0.07133
|
|
1000.00
|
37/4.18
|
507.7
|
29.26
|
1400
|
14942
|
146.5
|
0.06598
|

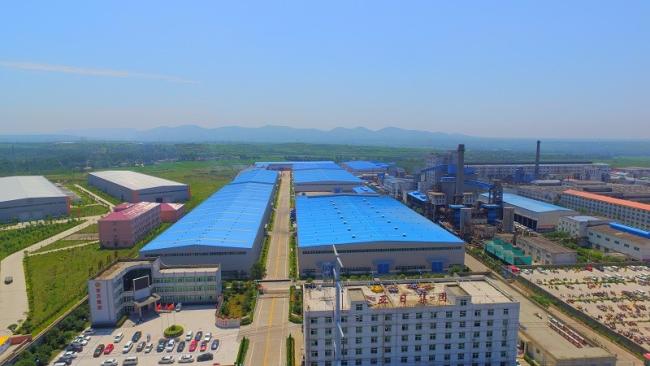

Luoyang Sanwu Cable CO.,Ltd was established in September 2016 ,with registered capital of 5 million RMB and more than 200 employees.Sanwu is a wire and cable manufacturing enterprise integrating with R&D, production and sales. The transportation of manufacturing base is convenient ,which is located in Yichuan Country Industrial Zone, adjacent to the Luoyang southwest highway ,Zhengzhou-Shaolinsi-Luoyang high way .

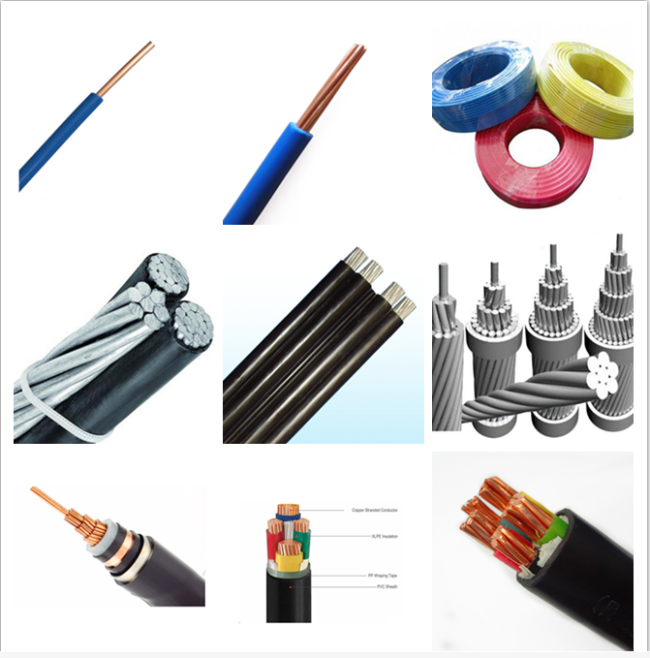

The company has obtained national product safety certification, 3C certification, 3 system certification, German TUV certification and international standard product mark certification, etc. Now Sanwu has three production workshops and more than 40 production lines. We mainly produce and manage electric round aluminum rods, overhead wires, power cables, wires and cables for electrical equipment, and special cables. Sanwu products are widely used in electric power, transportation, new energy, petroleum and petrochemical, national defense, and urban construction. In addition, Leading products overhead conductors are sold well and trusted by users all over the world .
