10MM LED purple light|uv led lamp|purple sun uv|purple glow uv light|10MM UV LEDs|LED Diodes 10mm

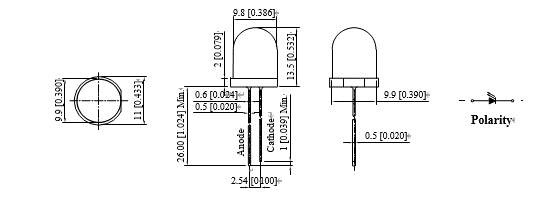

Model: 10MM UV purple DIP LEDs Clear Leds Size: φ10mm
Peak parameters:
|
Color |
Watt Class (W) |
Emitted Color |
Power Dissipation | Forward Current |
Peak Forward Current※1 |
| Pd (mW) | Ifmax (mA) | IFP (mA) | |||
| White | 0.06 | UW | 105 | 30 | 100 |
|
Single-Color |
0.06 | UV | 114 | 30 | 100 |
| 0.06 | UB/UG | 105 | 30 | 100 | |
| 0.06 | UY/UO/OR | 72 | 30 | 100 | |
| 0.06 | IR | 54 | 30 | 100 | |
|
Bi-Color |
0.12 | IR+UV | 72+102 | 60 | 100 |
| 0.12 | UR+UV | 72+105 | 60 | 100 | |
| 0.12 | UR+UY | 72+72 | 60 | 100 |
Note:1. Derate linearly as shown in Figure 4 for temperature above 25°C.
Product number::Absolute Maximum Rating(At TA=25°C)
Notes:
Luminous intensity is measured with a light sensor and filtercombination that approximates the CIE eye-response curve.2θ1/2
is the o-axis angle where the luminous intensity is 1⁄2the peak intensity.c. The dominant wavelength (λd) is derived from
the CIEchromaticity diagram and represents the single wavelength which defines thecolor of the device.
product properties:
Main chip: size violet chip 6*9 wafer 5nm, 810 0916 12131214 1016 1030 1230 3232 4545 various sizes of violet chip, wavelength
between360-435High temperature resistant Japanese glue, 99.99% puregold wire welding;Colloid color: can be customized
according torequirements: colored fog, colorless fog, colored and transparent, colorless andtransparent
Luminous color: can be customized according torequirements: white, red, orange, yellow, ordinary green, emerald green,
blue,two colorsLight-emitting angle: the angle can be adjusted accordingto customer requirements
Product features: high light efficiency, anti-hightemperature, anti-dead lamp, anti-static
Certification standards: SGS certificate in line with EUROHS, EN60425, REACH standards
Packing: anti-static bag packing
Application range: UV glue curing, nail lights, etc.
Product description: UV curing lamps are all packagedwith imported raw materials, and special wavelengths can be
customizedaccording to user requirements.

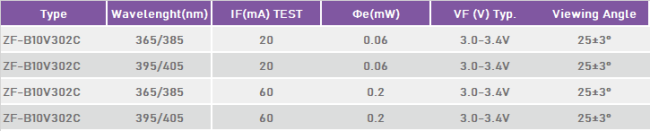

UV wavelength: 365-370-375-380-385-395-400-405-410-415nm,special wavelengths can be made according to customer
requirements.
Application areas:
Color classification and color temperature display
