Dagyee DYG-5-10'' Sus316 Liquid Multi High Precision Security 5 Cartridges Filter Housings 10'' With Clamp

DAGYEE Cartridge Housing

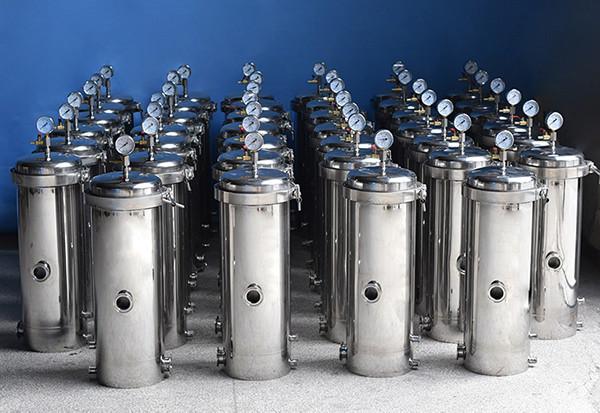

Cartridge filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.

5 Cartridges Filter Housings 10'' With Clamp Specification

DAGYEE Cartridge Housing Feature

• Filter length is available from 10" to 40"
• Filter housing material is available of stainless steel 304 and stainless steel 316L
• Surface finish is food grade mechanical polished or industrial sand blasting
• The steam gas filter is available of single round or muliti round filter housing according to the different flow rate request ,such is 1round ,3 round ,5 round ,7round ,9round or 12round
• Operate pressure can reach 150psi or more​

DAGYEE Cartridge Housing Application

• Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process.
• Pharmaceutical industry: sterile water, oral, infusion and injection water treatment.
• Electronics industry: water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
• Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
• Oil industry: oil field water injection preparation and so on.
• Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
• Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
• Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.

Types of DAGYEE Cartridge Housing

This filter can be applied for most particles so it is broadly for precision filter and sterilization.

• The filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
• The length of folding filter core is 10,20,30,40
• The material of the filter core is PTF,Pplysulfone,nylon,pp,acetyl cellulose
• The diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,and it is selective as hydrophilic (suitable for gas) and hydrophilic (suitable for liquid) according to your requirement.
