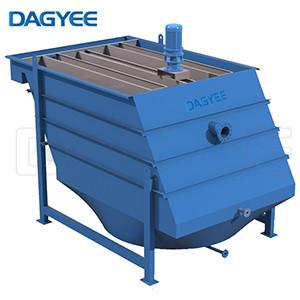

CE 3.35x1.82x3m Carbon Steel 10M3/h Lamella Clarifier

Dagyee DCL-010 CE Certificate Carbon Stee High TSS Removal Lamella Clarifier Supplies

What Is Lamella Clarifier

As the liquid flows upward, the solids settle on the inclined, parallel plates and slide into the sludge hopper at the bottom. Further thickening of the sludge occurs in the hopper due to compaction in the dormant zone beneath the plates. The clarified liquid leaves the plate assembly through submerged orifices or weirs at the top of each plate and collects in channels leading to the clarified water outlet which creates a pressure drop across the collection channels. This action ensures uniform flow distribution across the plates to utilize the full area for settling.

10M3/hr Lamella Clarifier Specifications

Range Of Applications

• Continuous operation.
• Due to its small volume no need to allocate large storage when emptying.
• No drive nor mechanical parts.
• Filling and emptying time is short.
• Small floor area footprint.
• Modular design for future expansions.

Features Of Lamella Clarifier

• Extremely smooth surface (mud does not stick)
• High resistance to shocks (stages of loading, unloading, assembly)
• Excellent hardness values, stiffness, elasticity and tensile strenght
• Resistance to breakage from mechanical stress
• Abrasion resistance
• Excellent electrical and thermal insulating properties
• Unassailable to chemical agents
• No water absorption

Available Designs Of Lamella Clarifier

• Inclined plates spacing of 80-100 mm
• Inclined plate length 1–2 m
• Plate pitches between 50° and 60°
• allow for self-cleaning, pitches require backwash
• Typical loading rates are 5 to 15m/h.
• Set up scraper for easy drainage

Dagyee Lamella Clarifier Focus On More Details
