ISO9001 Steel Bracket 200L Chemical Dosing Equipment

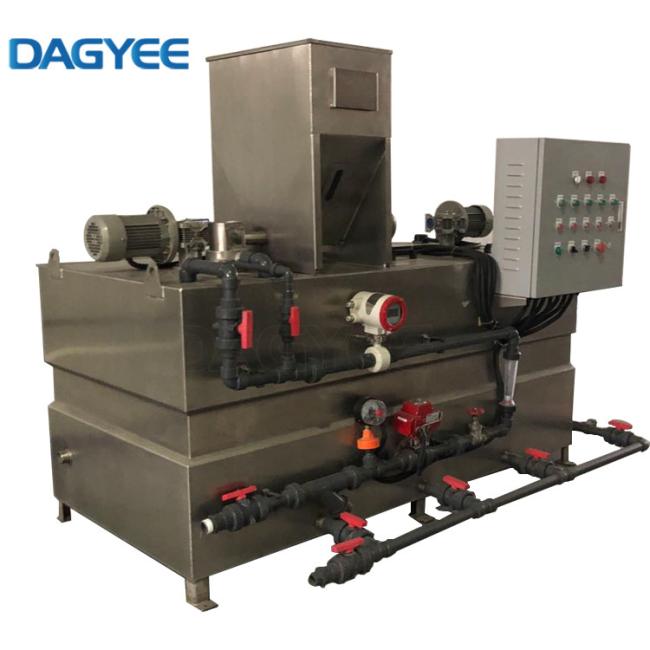

Dagyee DT200 ISO9001 Polymer PAM Make Up Systems Solution Preparation Unit
The automatic dosing machine is widely used in the waste water treatment, it can mix the compounds continuously and effectively, so the reactive polymer solution appears. These main components of the machine: Polymer feed machine (including material hopper), Dry powder infiltration device, Tank, Level controller, Mixer, Dosage water inlet pipe, Electric control panel.
| Model | DT200 |
| Capacity(L/h) | 200 |
| Power(kw) | 0.54 |
| Powder dosage(kg/h) | 0.20 |
| Water inlet flow(m3/h) | 0-0.2 |
| L(mm) | 940 |
| B(mm) | 520 |
| H(mm) | 1450 |
| L1(mm) | 860 |
| B1(mm) | 470 |
| Net weight(kg) | 250 |
The Feature Of Dissolver Dosing Device
- Automatic Polymer Dosing Unit is designed for preparation of solution of powdered flocculant with full-automatic.We can accustom the size of the device to the customer’s request in accordance with the required capacity of the unit. The unit is suitable for continuous operation.
- Professional design to integrate three tanks ( mixing tank,equalization tank and storage tank) into single device, which ensuring continuous operation and saving labour cost; Specially suitable for both dry powder and liquid flocculant (optional);
Complete PAM Batching Metering Systems
- It is especially suitable for municipal sewage treatment plants, industrial waste water treatment and other industries which need to add flocculant solution.
- It is widely used in sludge dewatering machine, wastewater treatment and various processes (food, chemical industry, dyeing and finishing, papermaking etc.) When the powder is dissolved and added.
- It is suitable for dissolving and adding all kinds of dry powder, granule, flocculant and concentrated liquid powder.
Service Of Our Company
Wuxi Dajiang Environmental Technology Co., Ltd. supports its customers in every phase of a project, from the inception of an idea or request,through design and testing to launch and installation. Our in-house research, design and development teams work closely with the local teams, drawing on customer and market inputs. Then using stateof-the-art technologies to optimize costs and using our own specifically designed test benches to ensure rigorous, robust testing, we ensure a quality solution is delivered quickly to market.
