Water Treatment Unit 250m3/h Multi Bag Filter Housing

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: 15 work days
Brand: Dagyee
Product Description

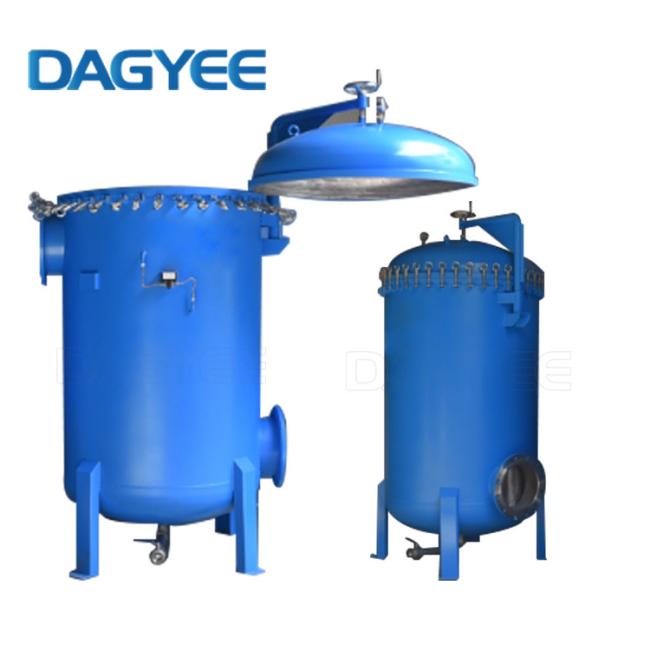

Dagyee DYG-8D-2S Liquid Multi 8 Bag Precision Water Filter Housing For Wine Oil Water Treatment Unit







What Is Cartridge Filter Housing?


Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria. Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.





Multi 8 Bag Filter Housings specification



Model DYG-8D-2S
Material SUS304 SUS316
Filtration accuracy 0.1-200UM
Connection Type Flange /BSP female
Surface treatment Mirror reflection
Housing Dimensions (mm) Ø710*2100
Max. Flow Rate (m3 /h) 250
Max. Operating Conditions (bar/°C) 12/150
Inlet/Outlet (flange) 5''
Length of Filter bag(mm) 810
No. of Filter bag 8
Max. bag Outside Diameter(mm) Ø180





DAGYEE Cartridge Housing Feature

  • Material: SUS304L, SUS316L
  • Cartridge Capacity: 1element, 3element.. 160element
  • Connection Available: Flange, female thread
  • Cartridge Configuration Accepted: 222/Fin, DOE​







Application Of Sanitary Filter Housing

  • Water Treatment, RO system;
  • Pharmaceuticals, API, Biologics;
  • Food and Beverage, Wine, Beer, Mineral Water, Distillation Equipment;
  • Paints, Inks Plating Solutions;
  • Process Chemicals and Electronics Industry ;
  • ​Paints & lacquer industry ;
  • Waste water treatment ;
  • Pharmaceutical industry ;
  • ;Food industry ;
  • Chemical industry ;
  • Beer, wine & spirit industry ;
  • Adhesive.
