Waterproof Tarpaulins Water Treatment Lamella Clarifier

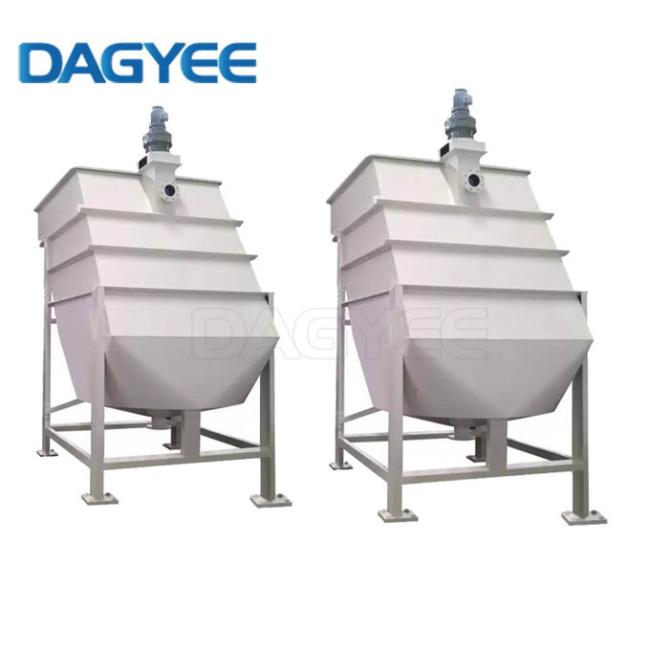

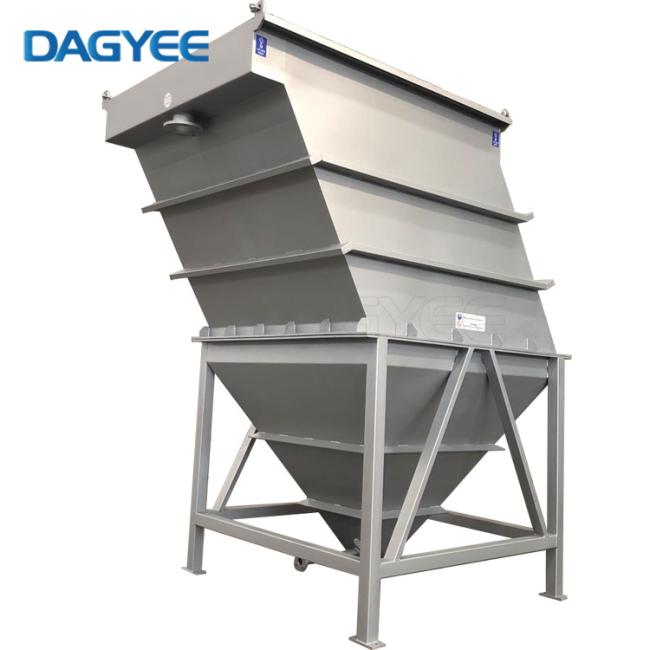

Dagyee DCL-005 1-5m3/H Stainless Steel Lamella Clarifier Anti Corrosion Treatment Inclined Plate Settler
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
5M3/hr Lamella Clarifier Specifications
| Parameter | Units | DCL-005 |
| Flow Rate | m3/h | 0-5 |
| Effective Settling Area | m2 | 5 |
| Efficiency | % | 80-90 |
| Treated water turbidity | NTU | 50-100 |
| Dimensions (Clarifier Only) | L x W x H (m) | 2.55*1.6*2.9 |
| Inlet | Inch | 3 |
| Effluent | Inch | 3 |
| Sludge outlet | Inch | 2 |
| Backwash | Inch | 2 |
| Power | Kw | 0.55 |
| Weight | Kg | 1500 |
| Voltage | Standard | 380V/3Phase/50Hz Or Provide your standard when making an inquiry |
| STANDARD INCLUSIONS + OPTIONS | ||
| Lamella Body Epoxy Coated Carbon Steel | ✓ | |
| Feed Pump | o | |
| Floculator Tanks | o | |
| Flash & Floc Mixers | o | |
| Sludge Scraper | o | |
| Lamella / Floc Tank Support Galvanised Mild Steel Construction | ✓ | |
| Standard Controller | ✓ | |
| Lamella Body – 304ss | o | |
| Lamella Body – 316ss | o | |
| Variable Speed Mixer | o | |
| Access Platform and Ladder | o | |
| Sludge Hopper Actuated Valve | o | |
| Sludge pump | o | |
Advantages Of Using Lamella Clarifier
- Long service life
- Easy to install
- User friendly
- Comprehensive after-sales assistance
- Capable to function well in all weather conditions
Main Process Characteristics
- Unit is Completely Assembled
- Low Installation
- Conservative Design 0.2 GPM/Ft2
- Completely Automatic, Gravity in Gravity Out
- Reduced Floor Space
- Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)
Application Of Lamella Clarifier
- Extremely smooth surface (mud does not stick)
- High resistance to shocks (stages of loading, unloading, assembly)
- Excellent hardness values, stiffness, elasticity and tensile strenght
- Resistance to breakage from mechanical stress
- Abrasion resistance
- Excellent electrical and thermal insulating properties
- Unassailable to chemical agents
- No water absorption
How Does Lamella Clarifier Work
When using, you can choose to add coagulant. The method is to install inclined plate component with an inclination angle of 60 degrees above the suspended layer of sludge. Suspended solids in the raw water, solids or floc alum flowers formed by adding a coagulant are added to the surface area of the inclined plate Accumulate into a thin mud layer, rely on gravity to slide back to the suspended sludge layer, and then sink into the mud hopper. The sewage pipe is discharged into the sludge tank for further treatment or comprehensive utilization. The supernatant gradually rises to the drain of the water collection , which can be directly discharged or reused.
