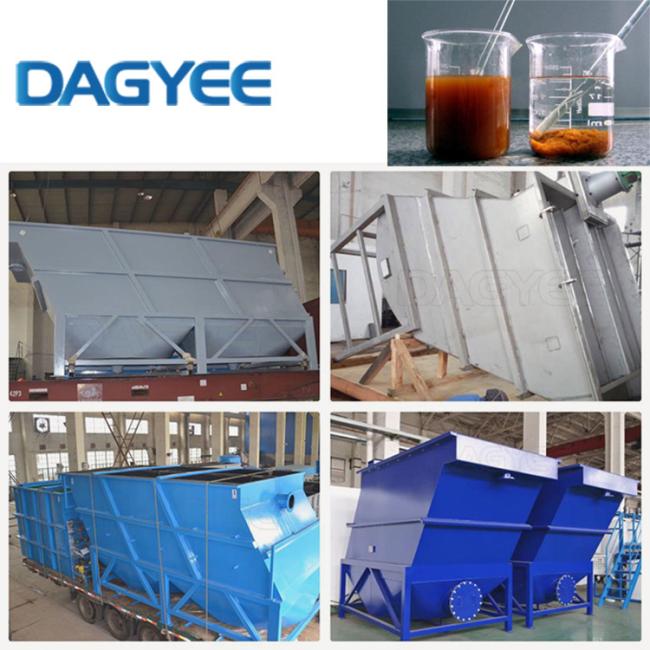

Lamella Inclined Plate Clarifier

Product Description

• The clarifier consists of a series of inclined plates, which are arranged to form a separate sedimentation chamber between adjacent plates.

• The raw water is first fed to Static Mixer.

• Chemicals like alum, poly electrolyte are added prior to static Mixer for proper mixing of chemicals in water.

• Water from Static mixer enters in Flocculator in which paddle type agitator is provided for gentle mixing.

Product Features

• Structural steel support legs

• Epoxy painted carbon steel tank

• Individually removable FRP

• Plates

• Adjustable effluent weir plates

• Standard units can be

• Manufactured for flows from 5

• Gpm to 3000 gpm and above in

• A single above-grade tank

• One-piece prefabricated units

• Are available with up to 1000 sqft

• Of effective settling area

• Single tank construction with

• Integral flash mix/flocculation

• Compartments for smaller units

• Multiple sample connections

Application Of The Product

• Potable water clarification

• Industrial process water

• Sand filter backwash

• Metal finishing

• Mining

• Groundwater

• River pre-sedimentation
