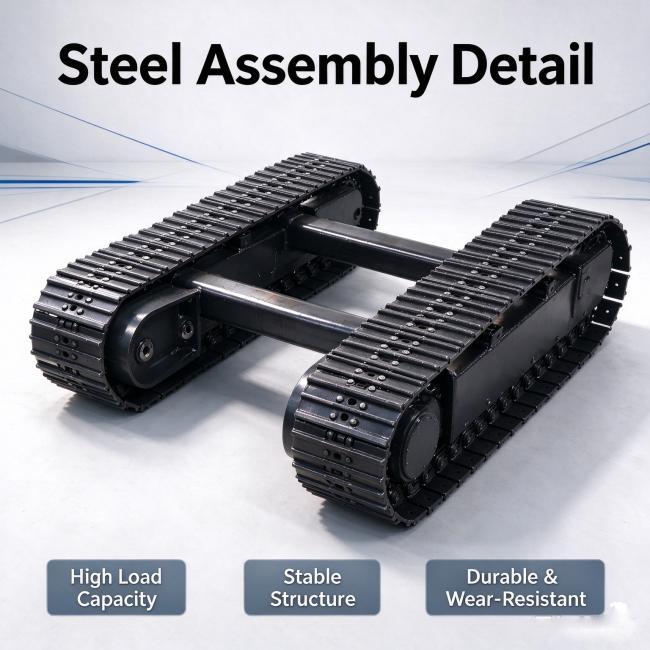

High Durability Steel Crawler Track For Water Borehole Drilling Rig Machines
Our track system is engineered for loads ranging from 300 kg to 400,000 kg. Available in rubber tracks, steel tracks, or interchangeable track systems, these undercarriages offer exceptional versatility. Key features include low soil pressure, 360° turning capability, and superior cross-country maneuverability.
| Attribute | Value |
|---|---|
| Product Name | Strong Steel Crawler Track Undercarriage For Large Water Borehole Drilling Rig Machines |
| Brand | Shitan |
| Loading Capacity | Customized |
| OEM | Acceptable |
| Application | Drilling Rigs |
| Raw Material | Alloy Steel |
| MOQ | 1 Set |
| Motor | Hydraulic Motor |
| Warranty | 12 month |
Key Advantages
- Superior Stability: Large ground contact area ensures excellent stability during operation
- Efficient Operation: Maintains competitive speed while delivering superior performance
- Durable Construction: Engineered for long-lasting operation in demanding conditions
- Customizable: Various steel track dimensions available at no extra cost
The track adjuster precisely controls track tension through a mechanism consisting of bracket, crank arm, worm gear, and screw components. Proper tension is critical for optimal performance and longevity:
- Hard surfaces require tighter tension
- Desert conditions perform better with looser tension
- Regular adjustment compensates for natural wear of track components
Ideal for specialized heavy equipment including:
- Water borehole drilling rigs
- vehicles and tanks
- Construction and mining equipment
- Optimal operating temperature range: -25°C to +55°C
- Average service life: ~2000 hours (varies with conditions)
- Avoid chemical exposure and sharp protrusions that may damage tracks
- Regular cleaning extends lifespan in harsh environments
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:
Pneumatic Drilling Rig / Air Drilling Rig(ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
