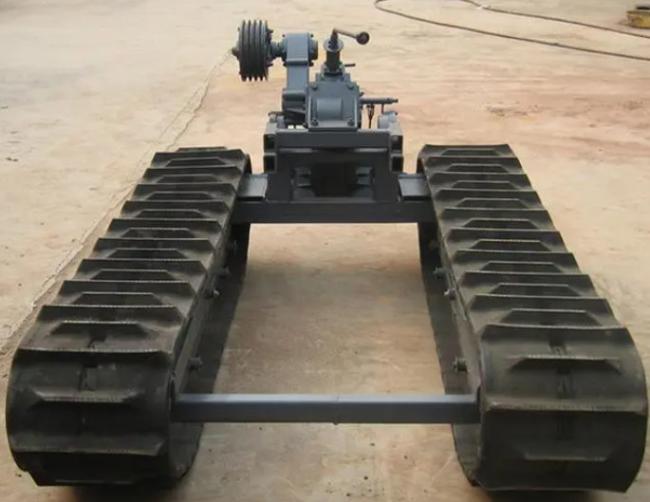

Mine Chassis Rubber Track Undercarriage For Kinds Of Drilling Rigs
Mine Chassis Rubber Track Undercarriage for Kinds Of Drilling Rigs
Product Description
A track system is constructed for loads of 300 kg to 400,000 kg. Depending on the required load and capacities, you can choose a track system with rubber tracks, a track system with steel tracks or a track system with interchangeable tracks, so that you can switch between rubber and steel. The common features of all track systems are the low soil pressure, the 360° turning possibility and the excellent cross-country manoeuvrability.
Product Tech Details
| Product Name | Track Undercarriage |
| Theoretical speed | 0~10(Km/h) |
|
Four gears, forward 3 and backward 1 |
|
| Grade ability | 20 ° uphill 20 ° downhill 20 ° rollover angle 25 |
| Track size | 2.3*1.65m Grounding length 1.6m |
| Track specifications | 3.3*1.85m*0.5m |
| Loading Capacity | 4MT |
Product Advantages
We can customize various tracked undercarriage systems undercarriage chassisand the load capacity is from 0.5 ton to 20 ton. It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and professional consultation.
Product Application
Drilling rig, mine machinery, fire-fighting robot, underwater dredging equipment ,aerial working platform, transport lifting equipment, agricultural machinery, garden machinery, special working machinery, field construction machinery, exploratory machinery, loader, static detection machinery, gadder , anchor machinery and other large, medium and small machinery.
Working Conditions
(1)The temperature of the rubber crawler is generally between -25° + 55°.
(2)The salt of chemicals, oil and seawater will accelerate the aging of the track. In such an environment, the track should be cleaned frequently.
(3)The road surface with sharp protrusions (such as steel bars, stones, etc.) can damage the rubber track.
(4)The edge stone, rut or uneven road surface of the road will cause cracks on the ground side pattern of the track edge. This crack can continue to be used without injuring the steel cord.
(5)Gravel and gravel pavement will cause early wear of the rubber surface in contact with the load-bearing wheel to form a small crack. Severe moisture will invade, causing the core iron to fall off and the steel wire to break.
