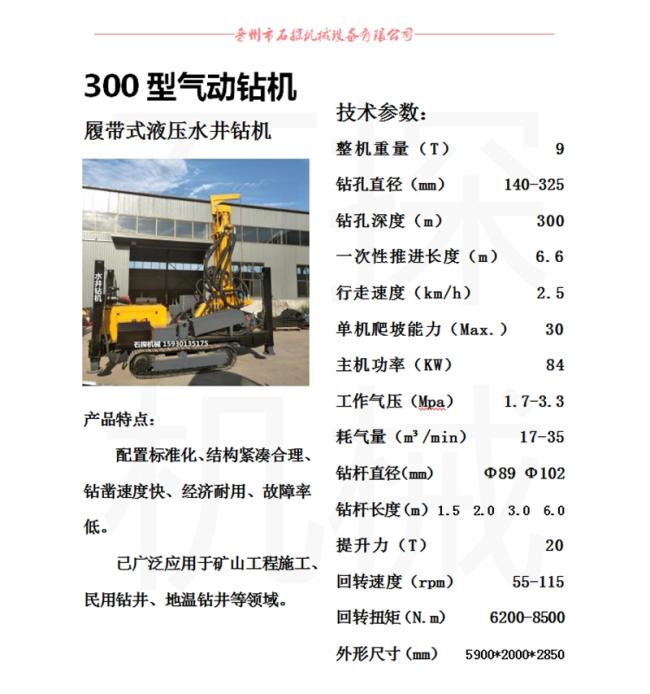

Crawler Chassis Gas 300m Pneumatic Borewell Machine
300m Crawler Chassis Water Gas Dual Purpose Pneumatic Borewell Machine
Pneumatic Borewell Machine Brief Introduction
Pneumatic Borewell Machine is a kind of high efficient and multiple functions drilling equipment, It is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other well holes, It is especially suitable for water intake projects in mountainous and rocky strata. The efficiency is more than ten times higher than that of the traditional rotary drilling rig, and the economic benefit created for the user is very considerable. Especially to solve the soil air DTH drilling difficulties, the construction problems of rotary drill hard rock layer, gravel layer, able to work effectively in a variety of geological structure, to achieve the perfect combination of water and pneumatic drill.
Pneumatic Borewell Machine Main Parameter:
| Drilling diameter(mm) | Ø90- Ø273 |
| Drilling depth( m) | 150-300 |
| Drill rod diameter(mm) | Ø76,Ø89, Ø102 |
| Drill inclination(°) | 90 |
| Rotator output speed(r/min) | 14-500 |
| Rotator output torque(N.m) | 13428-250 |
| Rotator feeding stroke (mm) | 3400 |
| Gyrator pressure (k.N) | 35 |
| Revolver lift(k.N) | 80 |
| Revolver to increase speed(m/min) | 0-12 |
| Walking way / Climbing angle | Crawler walk /15° |
| Input power(Diesel engine)(kW) | 48 |
| Rated speed(r/min) | 2400 |
| Oil pump flow(L/min)/压力Pressure(MPa) | main pump 60/20,Auxiliary pump 60/20 |
| Dimension(L*W*H)mm | 5400X2120X2650 |
| weight(kg) | 7200 |
Pneumatic Borewell Machine main features:
1, The drilling rig mainly adopts mechanical transmission, the other for the hydraulic transmission, can effectively use the power, reduce the overall power loss, making drilling low cost.
2, the drilling rig has more positive speed series and 14-500r / min speed range, and the output torque is 13428-250N.m.
3, the drilling rig with 2 speed reversal, easy to handle accidents.
4, the drilling rig uses a mechanical power head with a long stroke and speed multiplication system, power head stroke is 3800mm, used to improve the drilling efficiency, reducing the blocking drill and burned accidents.
5, the drilling rig precludes the use of double fuel pump, drilling with a single pump, hoisting and lowering with double pump confluence, reducing power loss and shorten the auxiliary time.
6, the drilling rig adopts advanced structure, reasonable layout, easy to maintain and repair.
7, the drilling rig uses crawler chassis, leg cylinder stroke is 1. 5m, so it can be automatically loaded, easy to transport.
8, the drilling rig, in the hydraulic system, reserves part of the functional interface, so the function can be extended according to different user's technical requirements.
Pneumatic Borewell Machine Mainly Suitable
Mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other well holes, It is especially suitable for water intake projects in mountainous and rocky strata.
