50x50cm Panel P2.97 Indoor Led Video Wall
Front Service 3840hz P2.97 Indoor Led Video Wall With 50x50cm Panel Nationstar Led

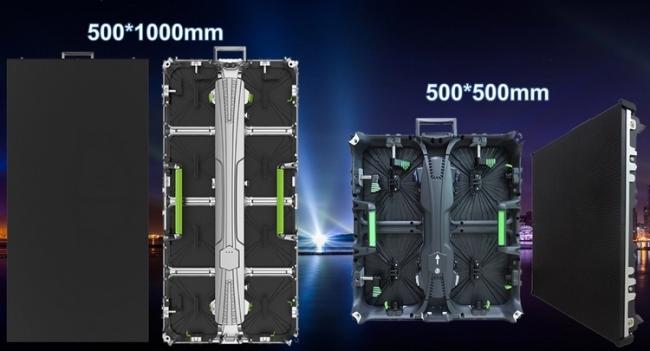

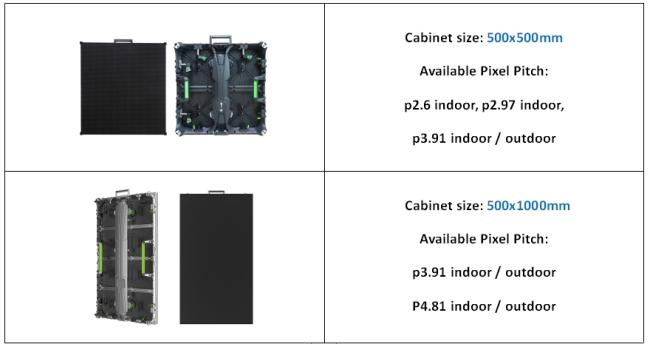

1. Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 500mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.
2. High-precision die-cast aluminum cabinet, seamless unit box.
3. New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.
4. Total hard connection ,easy to take off the power supply and receiving card.
5. Module with touchable back screw , uncessary to prepare tool, easy to fix and take off modules by hand.
6. Corners with small protectors, protect pixel while moving.
| Physical Pitch(mm) | 2.97mm |
| Pixel Configuration | SMD2121 |
| Pixel Density | 112,896 pixels/sqm |
| Module Dimensions (W × H) (mm) | 250x250 |
| Physical Resolution of Module (W x H) | 84x84 |
| Physical Resolution of Panel (W x H) | 168x168/168x336 |
| Panel Material | Die-casting Aluminum |
| Single Cabinet Weight | 8/14 kg / panel |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 400 W / ㎡ |
| Max Power Consumption | 800 W / ㎡ |
| Operating Temp/Humidity | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% |
| Refresh Rate | 3840 Hz |
| Brightness | ≥1,200nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
Advantages:
1. Providing excellent customer service and technical support.
2. We have very strict quality control system for every production procedure.
3. We introduced advanced technology equipment, we can delivery products on time, no matter samples or customized products.
4. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
5. The best price. You are welcome to contact us for a free project evaluation.
Our Service:
1. Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2. Installation and debugging
Wecould send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
3. Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4. Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
