High Contrast AC100~240V Outdoor Advertising Billboard P5mm Front Access

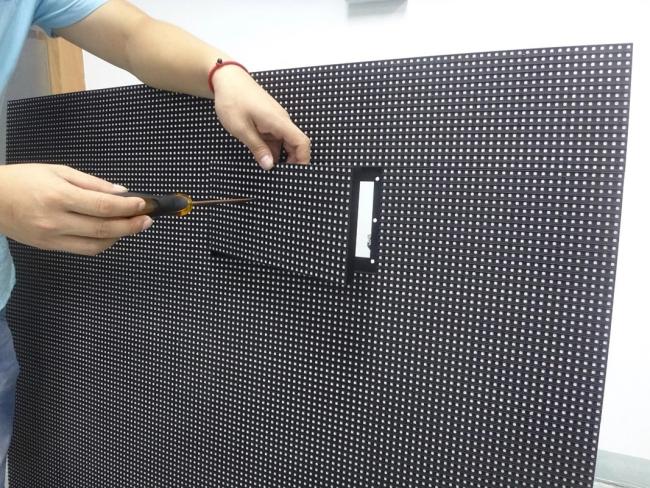

Front Access Advertising Outdoor Fixed LED Display Nova System
Specifictions:
1. Low power consumption, low heat, energy saving and environmental protection.
2. Uniform color, high contrast, the picture is beautiful and natural.
3. Short leading time for fast delivery.
4. Certification:EMC, FCC, IP65
5.. Patent mask design, dust-proof and waterproof, protection level up to IP65.
| LED Screen Information | View Distance | In/meter | 392/10 |
| View Angle (H/V) | Deg. | 140/140 | |
| LED Type | N/A | SMD3535 | |
| Pixel Pitch | Unit | 10 | |
| Brightness | Nits | 6500 | |
|
Module Dimension(WxH)
|
In/mm | 12.6x6.3/320x160 | |
|
Module Pixel(WxH)
|
Pixel | 32x16 | |
|
Cabinet Dimension(WxH)
|
In/mm | 37.8x37.8/960x960 | |
|
Cabinet Pixel(WxH)
|
Pixel | 96x96 | |
|
Cabinet Weight
|
Kg | 50 | |
|
Cabinet Material
|
N/A | Steel | |
|
Maintenance Way
|
N/A | Rear | |
| Power Operating | AC Operation | V | AC100~240V 50-6-Hz switchable |
| Power Consumption(Max./Ave.) | W/m2 | 730/220 | |
| Control System |
Refresh Rate
|
Hz | 1920 |
|
Driving Type
|
Scan | 1/2 | |
|
Digital Processing
|
Bit | 14 | |
|
Gray Scale
|
Level | 16384 | |
|
Support Input
|
N/A | Composite video,S-video,DVI,HDMI,SDI,HD-SDI | |
|
Control Distance
|
Meter | Ethernet cable within 100 meters, Optical fiber within 5KM | |
| Raliability | Ingress Protection | N/A | IP65 front/IP54 back |
| Operating Humidity | RH | 10~95% | |
| Operating Tem. | F/C | -4F~140F/-30~60 | |
| Life Time(50% brightness) | Hour | 100,000 |
Services:
1. Warranty
1) We provide warranty of all components for 2 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the installation of software and hardware, as well as the daily operation and troubleshooting of the LED display.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
3. Certification
We provide the operation manual and all kinds of certification such as CE, RoHS EMC UL and so on.
4. Package&Shipment
1) Usually, we will ship within 20-25 working days after the customer place an order, but the actual arrival time is affected by transportation environment and other aspects.
2) In general,our products are packed in wooden boxes and flight case
LED display, also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,projectors etc. LED display has become a new force in the media industry.
