P3.91mm SMD1921 Energy Saving LED Display 90 Degree Led Screen Seamless Splicing
90 Degree Seamless Splicing Outdoor LED Display With Energy Saving Design
Advantages:

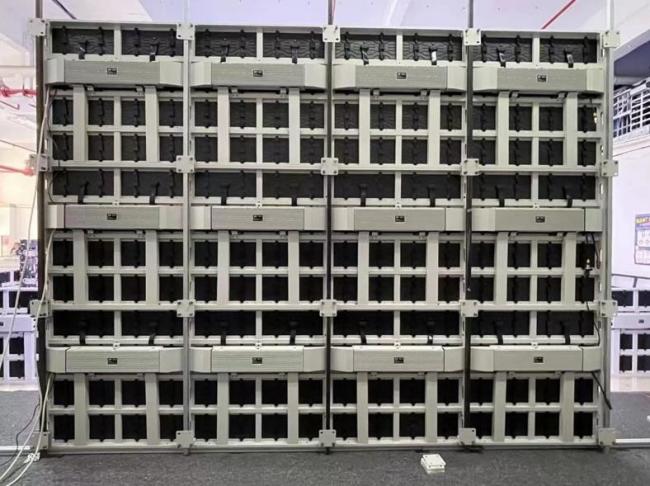

1. Front access, slim aluminum cabinet, easy and fast to install and maintenance.
2. 2.8V&3.8V energy saving design, no need air-conditioner, environmental and save cost.
3. Support 90 degree installation, seamless splicing at the corner.
4. Totally warterproof of front and back IP65.
5. Competitive price, you are welcome to contact us for a free project evaluation.
| Model No. | P10.41 | P7.8 | P6.25 | P5.2 | P4.8 | P3.9 |
| Pixel pitch | 10.4mm | 7.82mm | 6.25mm | 5.2mm | 4.81mm | 3.91mm |
| Pixel density (dots/m2) |
9246 | 16352 | 25600 | 36982 | 43264 | 65536 |
| LED encapsulation | SMD3535 | SMD2727 | SMD2727 | SMD2727 | SMD1921 | SMD1921 |
| Scan rate | 1/2 scan | 1/4 scan | 1/5 scan | 1/6 scan | 1/7 scan | 1/8 scan |
| Module size | 500 x 250 mm | |||||
| Module Resolution | 48 x 24 | 64 x 32 | 80 x 40 | 96 x 48 | 104 x 52 | 128 x 64 |
| Cabinet size | 1000 x 1000 x 73mm (Optional) | |||||
| Cabinet Resolution | 96 x 96 | 128 x 128 | 160 x 160 | 192 x 192 | 208 x 208 | 256 x 256 |
| Weight per Cabinet | 24.5 kg | |||||
| Brightness | ≥6500/ 10000nits |
≥6000/ 10000nits |
≥6000/ 10000nits |
≥5500/ 10000nits |
≥5000/ 10000nits |
≥5000/ 10000nits |
| Max.power consumption | 500W | 500W | 500W | 550W | 800W | 800W |
| Ave.power consumption | 175W | 175W | 175W | 185W | 270W | 270W |
| Energy Saving design | 2.8V & 3.8V Low voltage | 4.6V / 5V voltage | ||||
| Protection Degree | Front IP67/Rear IP65 | |||||
| Service | Front & Rear Dual service | |||||
| Power Supply | AC120 /240V (50Hz) (optional) | |||||
| Refresh Rate | ≥ 1920Hz(3840Hz Optional) | |||||
About US:
SHENZHEN ELITELED ELECTRONICS CO., LTD. is a leading LED display applications products and solutions provider, specialized in LED research and development, manufacturing. Sales and servic, dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE, IP65, IP67, IS9001, ROHS, and other qualifications, product testing reports, patent certificate
After-sale Service:
1. Warranty is for 2 years: During the warranty period, we will maintain and replace the defect components for free if there is any quality problem due to us. After 2 years, we will charge the material and freight cost.
2. Free Training: You can send your engineers to our factory for free of charge training, which includes the software, operation, installation, adjustment, basic repairing, etc.
3. Technical Support: All operation manuals, software, CAD drawings of the steel structure and instruction of installing the cabinets can be provided for free. Online technical support by remote control is also available. If needed, we can send engineers to your country to instruct and help the installation.
4. If you need, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such hotel, food, round trip ticket.
