Commercial SMD3535 6.67mm Energy Saving LED Display Environment Friendly
Environment Friendly Outdoor Large Led Display Screen Commercial Advertising Panel
Energy Saving LED Billboard Features:

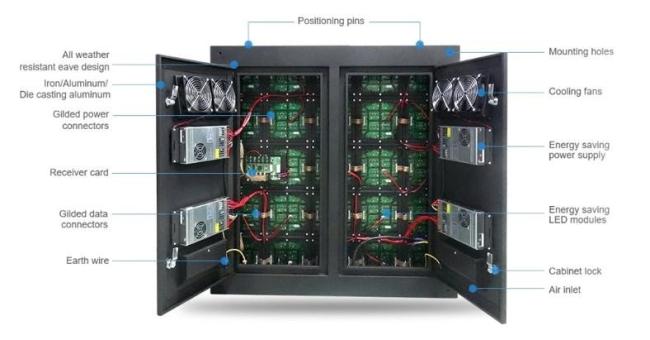

1. Front access, slim aluminum cabinet, easy and fast to install and maintenance.
2. 2.8V&3.8V energy saving design, no need air-conditioner, environmental and save cost.
3. Support 90 degree installation, seamless splicing at the corner.
4. Totally warterproof of front and back IP65.
5. Competitive price, you are welcome to contact us for a free project evaluation.
6. Curved screen adjustable, creative design to meet your requirement.
7. With Energy Saving technique, the power consumption reduce from 350W/Sqm to 150W/Sqm.
|
Model |
P4 |
P5 |
P6 |
P8 |
P10 |
|
Pixel Pitch(mm) |
4 |
5 |
6.67 |
8 |
10 |
|
LED Chips |
SMD1921 |
SMD2525 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Pixel density(dots/m2) |
62500 |
40000 |
22477 |
15625 |
10000 |
|
Driving Method |
1/10 scanning |
1/8 scanning |
1/6 scanning |
1/5 scanning |
1/2 scanning |
|
Module Size(mm) |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
|
Module Resolution |
80*40 |
64*32 |
48*24 |
40*20 |
32*16 |
|
Cabinet Size( W*L mm) |
960*960 |
960*960 |
960*960 |
960*960 |
960*960 |
|
Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
|
Cabinet Weight( Kg/m2 ) |
35 |
35 |
35 |
35 |
35 |
|
Max.Consumption(W/m2) |
800 |
800 |
800 |
800 |
800 |
|
Ave.Consumption(W/m2) |
350 |
350 |
350 |
350 |
350 |
|
Brightness( Nits ) |
≥5500 |
≥5000 |
≥5500 |
≥5800 |
≥6000 |
|
Viewing Angle (Vertical / Horizontal) |
120° / 120° |
120° / 120° |
120° / 120° |
120° / 120° |
120° / 120° |
|
Refresh Rate |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
|
IP Level |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Our Advantages:
1. Providing excellent customer service and technical support.
2. We have very strict quality control system for every production procedure.
3. We introduced advanced technology equipment, we can delivery products on time, no matter samples or customized products.
4. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
5. Our products passed CE, FCC and RoHS certificates.
6. The best price. You are welcome to contact us for a free project evaluation.
After-sale Service:
1. Warranty is for 2 years: During the warranty period, we will maintain and replace the defect components for free if there is any quality problem due to us. After 2 years, we will charge the material and freight cost.
2. Free Training: You can send your engineers to our factory for free of charge training, which includes the software, operation, installation, adjustment, basic repairing, etc.
3. Technical Support: All operation manuals, software, CAD drawings of the steel structure and instruction of installing the cabinets can be provided for free. Online technical support by remote control is also available. If needed, we can send engineers to your country to instruct and help the installation.
4. If you need, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such hotel, food, round trip ticket.
