Full color 2.6-5.2mm Clear Led Display 1/8 Scan Curtain Led See Through Screen
Glass Window Led Display Screen Transparent Curtain LED Video Wall
Advantages of Transparent LED Display:
1. High transparency
Up to 70% transparency rate could keep the internal natural lighting and viewing, the SMD are almost invisible from a certain distance.
2. Light weight
12kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings.
3. Fast installation
Fast lock systems ensure fast installation, saving labor cost.
4. High brightness and energy saving
5000nits brightness ensure the perfect visual performance even under direct sunlight, without any cooling system, saves lots of power.
5. Easy maintenance
Repairing single SMD without taking of single module or entire panel.
6. Stable and reliable
Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.
7. Wide applications
Any building with glass wall, for example, bank, shopping mall, theaters, chain stores, hotels, and landmarks etc.
|
Items |
Parameter |
||
|
Pixel Pitch |
2.6 x 5.2mm |
3.9 x 7.8mm |
7.8 x 7.8mm |
|
LED Lamp |
SMD2121/SMD1921 |
||
|

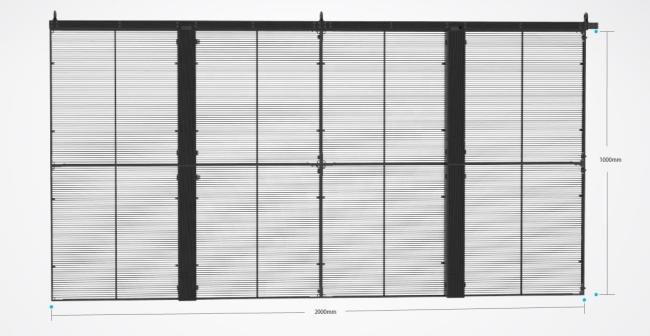

Cabinet Size (mm) |
1000 x 500mm/1000 x 1000mm |
||
|
Cabinet Resolution (dots) |
384 x 96 |
256 x 64 |
128 x 64 |
|
Pixel Density (dots/sqm) |
73728 |
32768 |
16384 |
|
Avg. Consumption (W/sqm) |
150 |
150 |
150 |
|
Max. Consumption (W/sqm) |
300 |
500 |
400 |
|
Scan Mode |
1/16 |
1/16 |
1/8 |
|
Cabinet Weight |
6kg |
||
|
Brightness |
1000-4500nits |
||
|
View Angle |
140°/140° |
||
|
Power Supply |
AC 100V-240V, 50-60Hz |
||
|
Refresh Rate |
1920Hz |
||
|
Operation Humidity |
10% ~ 95% |
||
|
Working Temperature |
-20℃ ~ 50℃ |
||
|
Life Span |
>100,000 hours |
||
|
Application |
Indoor/Semi-outdoor |
||

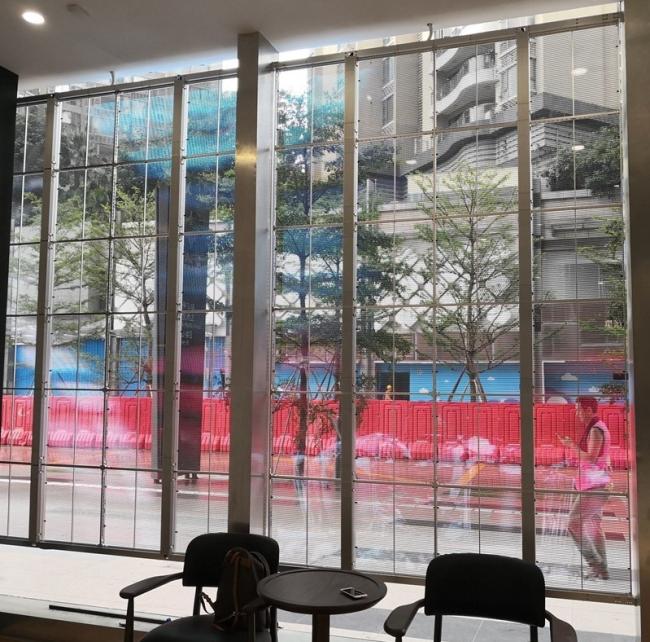

Applications:
After long time technical innovation and development, transparent LED display and led glass screen had been widely accepted by the customers. With the advantages of good heat dissipation, fast installation, high transparency, high brightness and easy maintenance, transparent LED display could be used behind any shape of glass surface, and keep the internal natural lighting and viewing, that’s the reason why it’s the best choice of glass wall advertising.
Looking for an indoor/outdoor rental LED display for an event?
We provide LED screen solutions to take your event to the higher level. Tell us your project , we will make a suitable led screen solution for you.
Why Choose Us?
1. Your inquiries will be replied within 12 hours!
2. Our sellers speak English and Spanish. Engineering men speak English.
3. Make considerate solutions based on your situation and requests.
4. 365 days after service support.
5. All life guarantee and free charge within two years.
6. Protection of your sales area, ideas of design and all your private information.
7. Top Quality + Reasonable Price + Responsible After Service = Successful & Win
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
