Seamless Right Angle Corner Led Screen P10.41 Front Maintenance Led Display
Seamless Right Angle Corner Led Screen Display Front Maintenance And Waterproof
Features:
1. High Brightness: Up to 6000-10000 nits! Make sure the screen is still clear enough even under the sunlight directly.
2. Energy Saving: Using common cathode power supply and led lamp, much lower power consumption and less heat, no need air conditioning.
3. High Performance: Die casting aluminum cabinet with aluminum base module, good heat dissipation and durable, not fear sun, rain or wind at all.
4. Front Maintenance: Easy to install and maintain, saving space and labor cost.
5. COMPETITIVE PRICE: You are welcome to get a free project evaluation. Thank you!
| Model No. | P10.41 | P7.8 | P6.25 | P5.2 | P4.8 | P3.9 |
| Pixel pitch | 10.4mm | 7.82mm | 6.25mm | 5.2mm | 4.81mm | 3.91mm |
| Pixel density (dots/m2) |
9246 | 16352 | 25600 | 36982 | 43264 | 65536 |
| LED encapsulation | SMD3535 | SMD2727 | SMD2727 | SMD2727 | SMD1921 | SMD1921 |
| Scan rate | 1/2 scan | 1/4 scan | 1/5 scan | 1/6 scan | 1/7 scan | 1/8 scan |
| Module size | 500 x 250 mm | |||||
| Module Resolution | 48 x 24 | 64 x 32 | 80 x 40 | 96 x 48 | 104 x 52 | 128 x 64 |
| Cabinet size | 1000 x 1000 x 73mm (Optional) | |||||
| Cabinet Resolution | 96 x 96 | 128 x 128 | 160 x 160 | 192 x 192 | 208 x 208 | 256 x 256 |
| Weight per Cabinet | 24.5 kg | |||||
| Brightness | ≥6500/ 10000nits |
≥6000/ 10000nits |
≥6000/ 10000nits |
≥5500 | ≥5000 | ≥5000 |
| Max.power consumption | 500W | 500W | 500W | 550W | 800W | 800W |
| Ave.power consumption | 175W | 175W | 175W | 185W | 270W | 270W |
| Energy Saving design | 2.8V & 3.8V Low voltage | 4.6V / 5V voltage | ||||
| Protection Degree | Front IP67/Rear IP65 | |||||
| Service | Front & Rear Dual service | |||||
| Power Supply | AC120 /240V (50Hz) (optional) | |||||
| Refresh Rate | ≥ 1920Hz(3840Hz Optional) | |||||
Advantages:
1. Lightweight and ultra-thin: Light weight, easy to install and maintain, no need to support structural reinforcement costs, high efficiency.

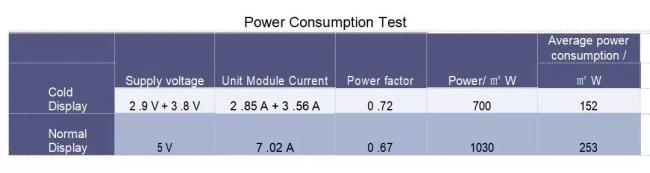

2. Low power consumption: Using high-brightness LED lights, high conversion efficiency and PFC function power supply, reducing power consumption by more than half compared with conventional power supplies.
3. No steel structure: When installed on the wall of a building without steel structure, it can reduce the weight of steel structure by about 50kg per square meter.

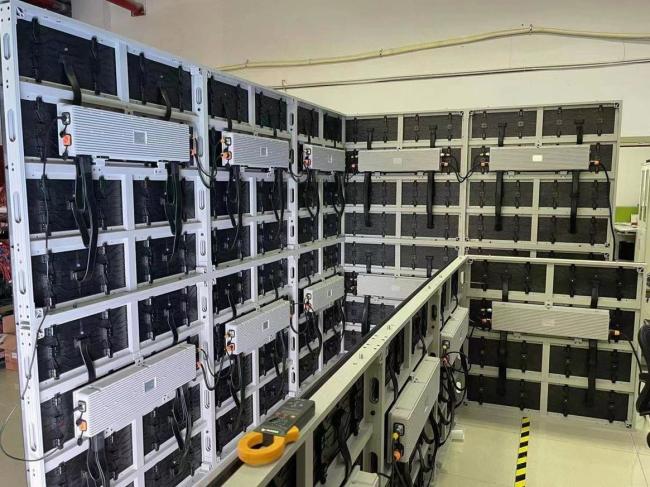

4. Front maintenance: It can be installed from front and back, greatly improving various adaptive conditions for on-site installation.
Application:

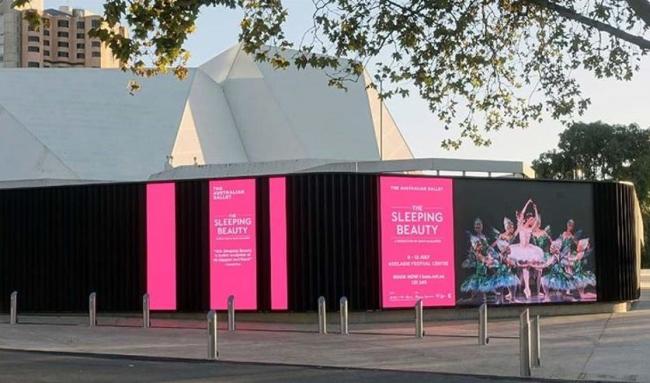

Mainly for outdoor advertising, information publishing, journalism and communication in some places, such as cultural square, traffic arteries, stations, terminals, information centers, entertainment venues, shopping, centers, commercial city and etc.
1. High brightness LED is used for outdoor LED display, keeps the display content visible even if facing the strong sunshine directly.
2. Weatherproof design, completely outdoor use.
3. High color uniformity and clear image can bring you a vivid audio visual effect.
4. Easy for assembling and connection with the connector added.
5. Optional of convex shaped,concave shaped and wave shaped screens
6. Standard cabinet achieves seamless and smooth assembling overall the display.
7. The cabinet can be operate in all-weather for its slim design and waterproofing that with a protection level of class IP65 in front and IP54 in back.
8. Easy installment and low maintenance cost.
