P1.538 Fine Pitch LED Display
Fine Pixel Pitch HD LED Display Screen Led Advertising Display For Meeting Room
Features:
1. 320*160mm module size design, compatible with 640*480mm die cast aluminum cabinet, compatible with P1.25/P1.538/P1.667/P1.86/P2/P2.5, etc
2. Select high-performance PCB board substrate and cooperate with rigorous process to greatly reduce the color temperature phenomenon
3. Die cast aluminum cabinet structure, ultra-light and ultra-thin, with a weight of 6Kg and a thickness of 50mm
4. Unit cabinet seamless splicing, more convenient for assembly and transportation
5. Wireless connecting between module and board, front maintenance design,easy installation and cost saving
6. High precision, the cabinet is CNC processed
7. Reliable, high strength and good heat dissipation
| Pixel Pitch(mm) | 1.538 | 1.667 | 1.86 | 2 | 2.5 | 3.076 |
| Pixel Matrix Per Sq.m | 422,500 | 360,000 | 288,888 | 250,000 | 160,000 | 105,625 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD2121 | |||
| Brightness (nits) | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| Scan | 1/52 | 1/48 | 1/43 | 1/40 | 1/32 | 1/24 |
| Cabinet Resolution | 416x312 | 384x288 | 344x258 | 320x240 | 256X192 | 208X156 |
| Power Con. (Max / Avg) | 500/150 w/sqm | |||||
| Module Dimension | 320x160mm | |||||
| Cabinet Weight | 6kg ( Die-casting Aluminum) | |||||
| Cabinet Dimension | 640x480mm | |||||
| Service Access | Full Front | |||||
| Refresh Rate (HZ) | ≥3840 | |||||
| Grey Scale (bit) | 16 | |||||
| Viewing Angle (H/V) | 160 / 160 | |||||
| IP Rate | IP41 | |||||
| Input Voltage (AC) | 110V / 240V | |||||

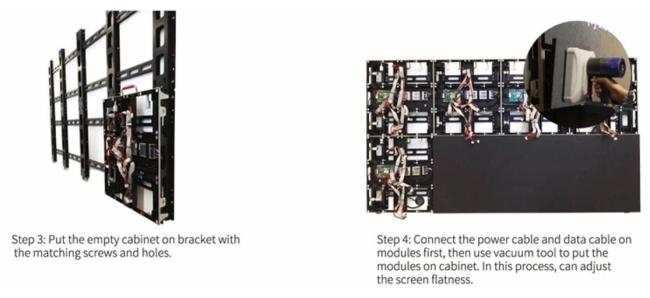

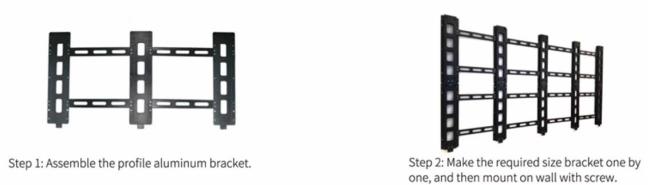

How to Install the Screens:
Our Advantages:
1. Providing excellent customer service and technical support.
2. We have very strict quality control system for every production procedure.
3. We introduced advanced technology equipment, we can delivery products on time, no matter samples or customized products.
4. We have experienced technology enginners team and sales team to answer and solve all your concerned matters.
5. Our products passed CE, FCC and RoHS certificates.
6. The best price. You are welcome to contact us for a free project evaluation.
After-sale Service:
1. Warranty is for 2 years: During the warranty period, we will maintain and replace the defect components for free if there is any quality problem due to us. After 2 years, we will charge the material and freight cost.
2. Free Training: You can send your engineers to our factory for free of charge training, which includes the software, operation, installation, adjustment, basic repairing, etc.
3. Technical Support: All operation manuals, software, CAD drawings of the steel structure and instruction of installing the cabinets can be provided for free. Online technical support by remote control is also available. If needed, we can send engineers to your country to instruct and help the installation.
4. If you need, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such hotel, food, round trip ticket.
