SUS 304 ISO9001 1500bph Beer Filling Machine

Full Set Automatic Complete Aluminum Can Carbonated Beverage Production Line / Aluminum Tin Can Filling Sealing Machine

1. Model GF12-1

It is suitable for cans filling and sealing for juice or carbonated beverage such as BEER, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system. It is the preferred equipment for the medium beer and beverage plant.

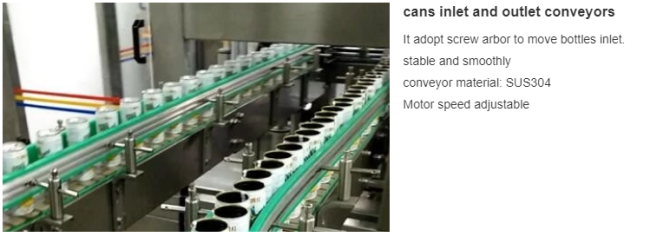

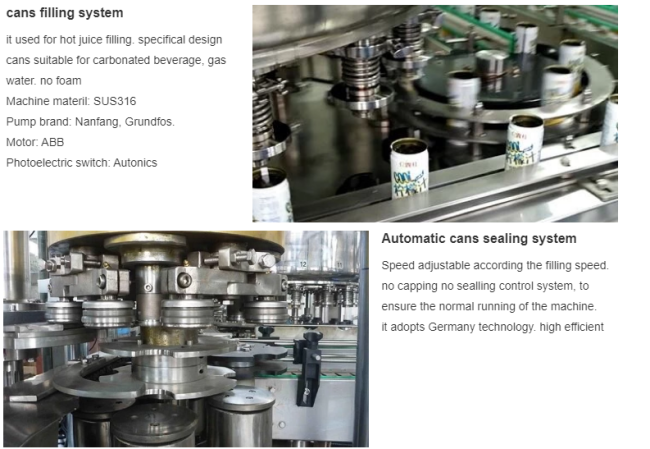

Cans is pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to capper. Capper will take cap, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can is transferred to conveying system.

The front can turning- over cutter cage of the washer is connected with the rapid transportation of the unpiler .
The empty cans that come from the can turning-over machine have a 90°turn. Then the can entering the washing tank of the empty can wash by the opening downward. There is a spray tube on the bottom of the tank and 12 nozzles that can spray 850mm clean water column. The back of the tank is the drain part. The water, which sprayed into the empty can flow back the tank, then the wastewater.discharged by the discharge pipes. After cleaning the empty can have a 90°turn by the back can turning-over machine, then the can entering the feed conveyor belt by opening upward.



Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
