4x4/6x6 Airport Fire Truck ARFF Rescue Vehicle Airport Crash Tender Good Price China Factory
Price:
USD500,000-USD1,000,000
MOQ:
1 Unit
Delivery Time:
10 months
Brand:
CXFIRE
Product Description
4x4/6x6 Airport Fire Truck ARFF Vehicle Airport Crash Tender Good Price China Factory
1. ARFF Aiprot Fire Fighting Truck China Manufacturer for Fire Engine
This vehicle is a special fire-fighting vehicle for the airport. It has strong power and excellent road passing ability. It can arrive safely and quickly for fire-fighting and rescue.The detailed parameters are as follows.
2. The Whole Fire Truck's Parameters
| No. | Main Items | Technical Parameters |
|---|---|---|
| 2.1 | Model | SXF5322GXFJX110/B |
| 2.2 | Overall Dimension | 9800mm×2500mm×3900mm |
| 2.3 | Full Load Weight | 27100kgs |
| 2.4 | Number of the Crew | 3 (include driver) |
| 2.5 | Max. Speed | 100km/h |
| 2.6 | Capacity | 10000L Water & 1000L Foam. PP composite material liquid tank |
| 2.7 | Fire pump flow rate | 100L/s @ 10bar |
| 2.8 | Fire monitor | 100L/s flow rate, 80m shoot range |
| 2.9 | Painting | Red paint of U.S. PPG |
3. Benz Chassis
- Manufacturer: Germany Benz
- Model: Benz Arocs 3358
- Drive type: 6*6
- Wheelbase: 4450mm+1450mm
- Engine model: OM473
- Engine type: Inline 6-cylinder, turbocharged, inter-cooled diesel engine
- Rated power: 425Kw
- Gearbox form: Automatic transmission, 16 forward gears + 4 reverse gear
- Fuel tank capacity: 290L
4. Fire Extinguishing System
4.1 Fire Pump
- Flow Rate: 100L/s @ 10bar
- Vacuum Pump: Integrated design with the water pump, directly driven by the pump shaft, no need for additional power, no noise
- Priming Manner: Automatic
- Suction Height: 7m
- Priming Time: ≤80s
- Location: Rear mounted
4.2 Fire Monitor
- Flow Rate: 100L/s @ 10bar,adjustable flow
- Shoot Range: Water ≥ 90 m, Foam ≥ 85 m
- Location: On the top of the tank
- Control Manner: Remote control
- Horizontal Rotation Angle 0°~330°
- Pitch Rotation Angle: -15°~60°
4.3 Liquid Tank
- Capacity: Water 10000L, Foam 1000L.
- Material: PP composite material and Never Rust.
- Structure: Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.
4.4 Control Panel
- Structure: Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level.
- Location: In middle pump room.

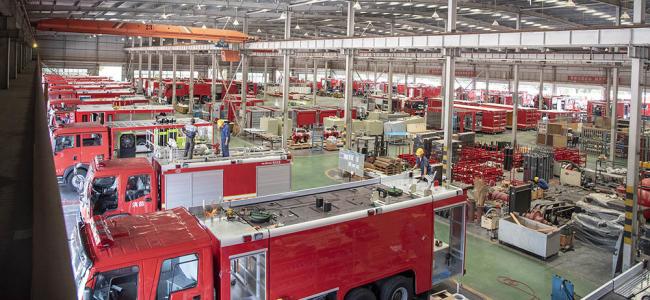

5. Company Pictures for Reference
