4.5KW Tube Ice Making Machine
Price:
$13,000.00
MOQ:
1 - 1 Sets
Delivery Time:
Negotiable
Brand:
Yixing ICS
Product Description
Advanced 3ton/ Day Small Capacity Tube Ice Making Machine, High Quality Tube Ice Maker, Ice Tube Making Machines
Product Description
|
Product Name
|
Tube Ice Machine
|
|
Cooling Type
|
Water CoolingAir Cooling
|
|
Refrigerant
|
R22/R404A
|
|
Package
|
standard export packing
|
|
Input Power
|
380V/3P/50HZ
|
|
Ambient temp
|
30℃
|
|
Water inlet temp
|
25℃
|
|
condensing temp
|
42℃
|
|
Compressor running power
|
4.25kw
|
|
Installation power
|
6kw
|
|
Dimension
|
1320*950*1800mm
|
|
Net weight
|
650kg
|
-
Product performance description
Tube ice machine is one kind of ice making machine. It is named for the regular cylindrical hollow Tube shape of the ice it
produces. The name of the produced ice cube is Tube ice. The contact area is the smallest of the existing ice types in the market with the best melting resistance. It is suitable for drinks, decoration, food ice storage and so on, so it is mostly edible ice.

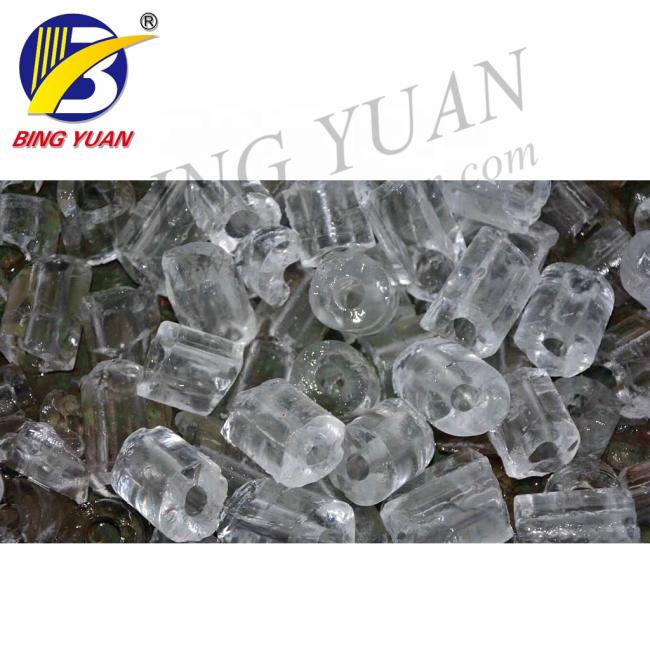

The tube ice produced by tube ice machine is a kind of ice block with irregular length and hollow tube. Its inner hole is 5mm~15mm, and the length is 25mm~42mm. There are various sizes to choose from. The outer diameter of the ice is as follows: 22,
29, 32, 35 mm, etc. It is suitable for daily consumption, vegetable preservation and fishery products preservation.
produces. The name of the produced ice cube is Tube ice. The contact area is the smallest of the existing ice types in the market with the best melting resistance. It is suitable for drinks, decoration, food ice storage and so on, so it is mostly edible ice.
The tube ice produced by tube ice machine is a kind of ice block with irregular length and hollow tube. Its inner hole is 5mm~15mm, and the length is 25mm~42mm. There are various sizes to choose from. The outer diameter of the ice is as follows: 22,
29, 32, 35 mm, etc. It is suitable for daily consumption, vegetable preservation and fishery products preservation.
Features of Tube Ice Machine
|
Pure Ice
|
Using Pre-PurifyTM water purification technology to filter the incoming water, the ice cubes are crystal clear.
|
|
Perfect Design
|
All the equipment adopts CAD-3D simulation assembly, which makes the arrangement of equipment parts and accessories and the direction of pipes more reasonable, compact structure and not crowded, and more humanized operation and maintenance.
|
|
Safety and Hygiene
|
Evaporator materials are made of stainless steel 304 and other materials, reaching the international health standards.
|
|
Efficient Performance
|
The evaporator adopts special processing technology, which makes the evaporator have better thermal conductivity.
|
|
Energy Saving And Water Saving
|
Each compressor condensing unit is equipped with heat exchange of return pipe and liquid supply pipe, control of evaporation temperature and condensation temperature, superheat of return gas and oil return, so as to ensure stable operation of compressor unit under safe working conditions.
|
|
High Quality Accessories
|
More than 80% of the refrigeration equipment accessories produced by Ice Source use well known brands at home and abroad. For example, Bitzer is used for the compressor. Hansen, Danfoss, Emerson and other world famous brands are used as refrigeration accessories.
|
|
Customized
|
The refrigeration equipment produced by Ice Source can operate normally under the working conditions of -20~+50℃ and water inlet temperature of +0.5~+45℃. The company can not only provide all kinds of standard refrigeration equipment for you but also customized the refrigeration system under special working conditions according to the actual needs.
|
|
Stable and Reliable
|
Perfect design, reduce the equipment internal unnecessary transmission parts, so that the equipment more simple and reliable. The unit is generally equipped with low water level, water flow, full ice, high pressure compressor, low pressure of compressor, oil pressure of compressor, et., so that the equipment can operate stably, reliably, and safely, and can operate continuously for more than 3000 hours without fault.
|
|
Standardization
|
Most of the products have been standardized, so that the production quality and processing technology are more mature and the quality is more guaranteed.
|
|
Fully Automatic
|
PLC computer module automatically controls ice making process at a glance.
|
Details Images
Structure
The structure of tube ice machine mainly includes evaporator, condenser, water storage tank, compressor and liquid storage tank.
Among them the evaporator structure is the most complex, the accuracy requirement is the highest and the manufacturing difficulty
is the biggest.
Among them the evaporator structure is the most complex, the accuracy requirement is the highest and the manufacturing difficulty
is the biggest.
Classification
Tube ice machine can be divided into small tube ice machine and large tube ice machine according to the daily output ( According to the international standard of working conditions: dry bulb temperature of 33°C, inlet water temperature of 20°C ) . The daily ice production of small tube ice machines ranges from 1 ton to 8 tons, and most of them are single structure. The daily ice production of large tube ice machine is from 10 tons to 60 tons, most of which are compound structure and need to be equipped with cooling tower.
Ice making process
Ice making ---Ice collecting/delivering---
Ice Packing and weighing---
Ice storage
Ice making ---Ice collecting/delivering---
Ice Packing and weighing---
Ice storage
Ice shape choice

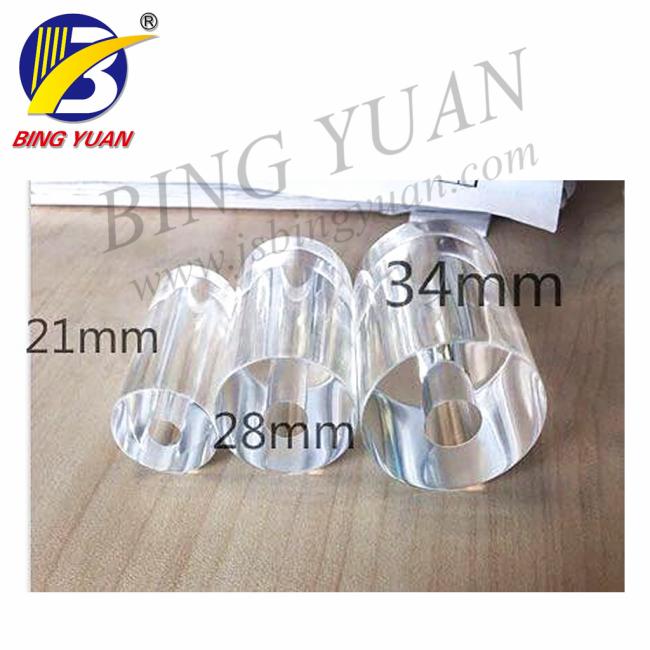

Choice 1-S:φ22*H35mm,inner hole 5mm,12g. Choice 2-M:φ28*H40mm,inner hole 8mm,20g. Choice 3-L:φ35*H50mm,inner hole 12mm,42g
Choice 1-S:φ22*H35mm,inner hole 5mm,12g. Choice 2-M:φ28*H40mm,inner hole 8mm,20g. Choice 3-L:φ35*H50mm,inner hole 12mm,42g
Product Usage
-
-
Product usage
-
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Related Products

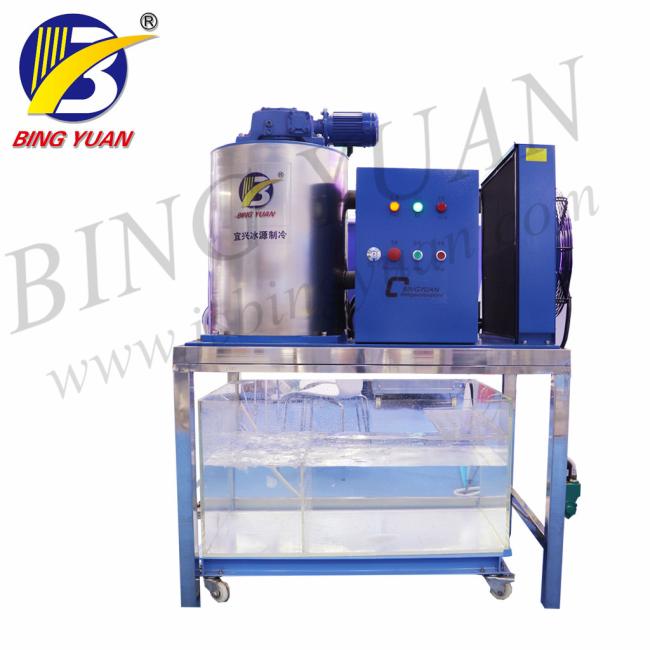

China Manufacturer Wholesale Price Commercial 1T/Day Flake Ice Making Machine
10 T capacity/ 24 hours high performance low price Slurry Ice Machine brine water/Sea water

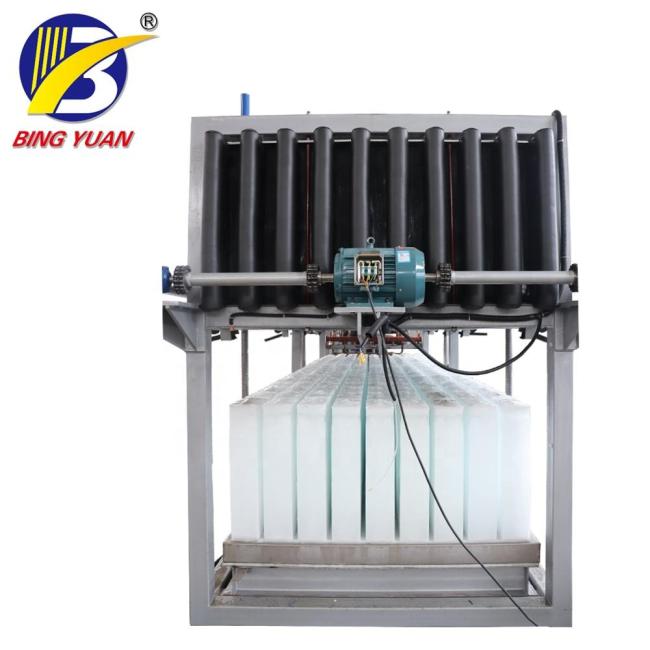

Direct System Block Ice Machine 10 ton/24h low price factory manufacture, ice block
Packing&Shipping
Standard export packing
Wood cases and protection film for package, ship in container
Company Introduction
Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.
ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
Our Services
Pre-sale service
* Inquiry and consulting support
* Sample testing support
* View our Factory
* Sample testing support
* View our Factory
After-sale service
* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas
* Engineers available to service machinery overseas
