Weather Resistant Adhesive Tape Laminated UF508 Anti-Aging Film for Plastic Molding
Price:
$0.17 - $0.69/rolls
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
upasschina
Product Description
Products Description

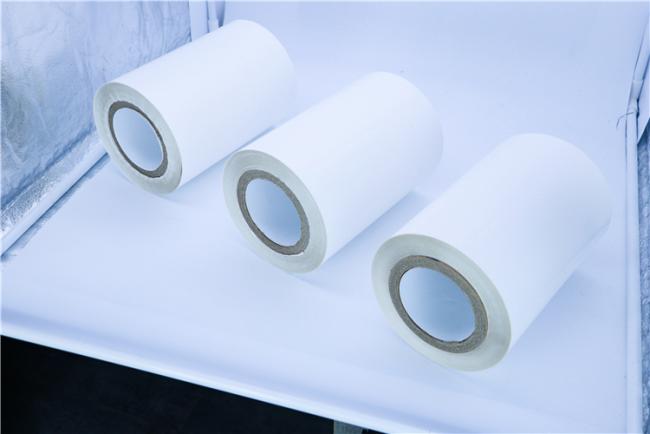

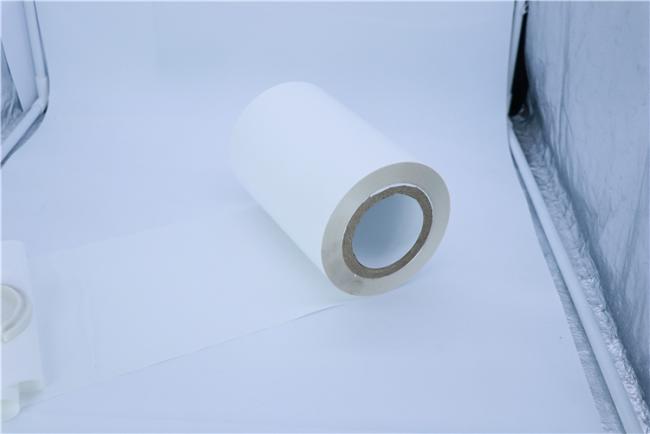

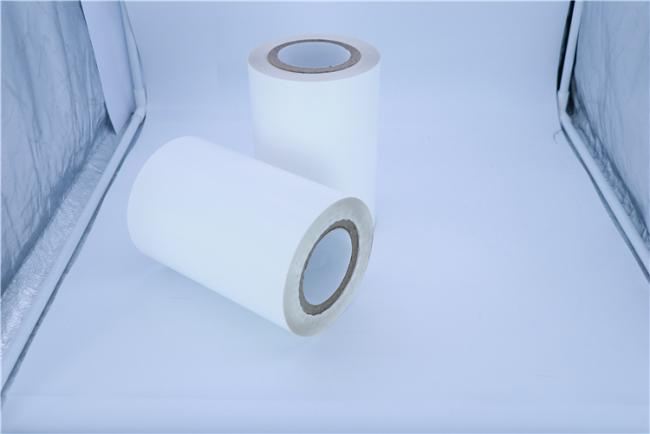

Anti-Aging Film(UF508)
Material: PET / fluorine film weathering film Type: Surface film Application: Polymer waterproofing membrane, butyl adhesive tape surface material Performance: Weather resistance Hardness: Hard Processing / production process: Laminated Transparency: Opaque Attribute: Color: white Thickness: 0.08-0.15mm Width: 900-1100mm Sleeve I.D.: 76mm Packaging: Bubble membrane + tray Product introduction: 1.According to the requirements of general specifications for waterproofing for construction and municipal engineering: The working period of waterproof design for roofing engineering should not be less than 25 years; 2.Excellent anti-aging, ultraviolet resistance, weather resistance, acid and alkali resistance, chemical corrosion resistance, high temperature and humid heat resistance, extreme cold resistance, reflectivity up to 85%, weather resistance life of more than 25 years, can replace the traditional exposed waterproof materials and waterproof coil film; 3.The structure is specially designed for the weather resistant industry, and it is cost-effective;
Application scenarios:
Weather resistant waterproofing membrane
Weather resistant adhesive tape
|
Performance index
|
|
|
|
|||
|
Test item
|
Test method
|
Value
|
Remark
|
|||
|
Thickness
|
GB/T6672-2001
|
/
|
0.12mm
|
|||
|
Width
|
GB/T6673-2001
|
/
|
As per requirements
|
|||
|
Max. tensile strength
|
GB/T 328.9-2007
|
MD:770N
TD:762N |
Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min.,
Fixture gauge length: 100mm |
|||
|
Max.F
|
N/50mm
|
≥200
|
≥300
|
|||
|
Elongation@Break
|
%
|
≥50
|
≥50
|
|||
|
Elongation @ break
|
%
|
≥500
|
≥500
|
|||
|
Peeling force
|
GB/T 529-2008
|
MD:23N
TD:21N |
Stretching speed:250mm/min
|
|||
|
Surface tension
|
GB/T14216
|
≧42dyn/cm
|
Dyne pen test
|
|||
|
Rate of dimensional changes
|
GB/T 35467-2017
|
MD:0%
TD:0% |
90℃&24h
|
|||
|
MVTR
|
|
≦70 g/m2.24h (20um)
|
38℃+100%RH
Electrolytic sensor method |
|||
|
Weather resistance
|
Artificial climate aging 3000h (appearance) |
No bubble,
No cracks, No layering defect, No Adhesion and No hole |
GB/T 16422.2-2014
GB/T 12952-2011 Method A: Exposure cycle 2, temperature 23℃±2℃, relative humidity (50±5)% |
|||
Recommend Products
Company Profile
Product packaging
FAQ
|
Q1: Are you trading company or manufacturer ?
|
|
A1: We are manufacturer.
|
|
Q2: Do you provide samples ? is it free or extra ?
|
|
A2: Yes, we could offer A4 sample for free charge but if you need in roll,we can offer 100-200m/roll for free, but shipping cost need you to paid.
|
|
Q3: How long is your delivery time?
|
|
A3: Depends on your quantity. Generally it is about 30 days for 20GP container.
|
|
Q4: How to pay for your goods?
|
|
A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).
|
