Waterproof 0.12mm 120 Micron Cross Laminated Film
Bitumen Waterproof Membrane Application Cross Laminated Film
What is cross laminated strength film?
It is a high-strength multi-layer composite film,It is made of HDPE as the base material,
adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other
additives through multi-layer co-extrusion blow molding into embryos, and then by multiple
pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution
of 45 °, and finally through cross-compositing. Due to its cross-stacking structure is different
from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability,
two-way tear resistance, two-way uniform tension and high elongation which are not available
in traditional films.
Type of waterproofing membranes:
Advantages:
|
► Excellent dimensional stability. It can fix its own size without deformation
► Two-way tear resistance. The vertical and horizontal mesh structure effectively solves the phenomenon of easy wrinkling and drumming after construction
► Performance against UV radiation. The use of outdoor high temperature conditions is guaranteed
► High strength and high elongation performance. Excellent resistance to high and low temperature
► Unique puncture resistance, self-healing and continuous tear resistance and excellent nail water tightness. |
Application:
Parameter:
| NO. | Item | Performance | ||
| SDM-30 | SDM-60 | |||
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| MaxF/(N/50mm) ≥ | 200 | 300 | ||
| Elongation as MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 250 | |||
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 | ||
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 | ||
| 4 | Angle Tear Strength/N ≥ | 25 | ||
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation | ||
| 6 | Cryogenic Flexibility ℃ |
-35℃, No fissure, No delamination |
||
| 7 | Thermal Ageing | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 80 | |||
| Elongation at MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 200 | |||
| 8 | Artificial Weathering | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 70 | |||
| Elongation at MaxF/% ≥ | 180 | |||
| Elongation at break/% ≥ | 180 | |||
About Upass:
|
Upass, founded in 2008, now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.
|

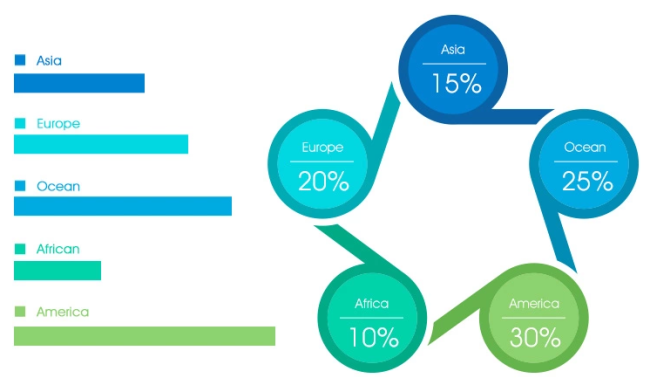

Main Market:
