100KN OPGW Cable Fittings , 3000MM Helical Tension Clamp
Price:
Negotiable
MOQ:
100
Delivery Time:
7 days
Brand:
HC , OEM
Product Description

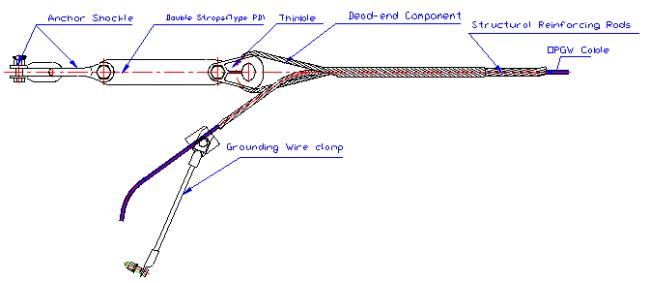

Helical Tension Set for OPGW Fiber Cable

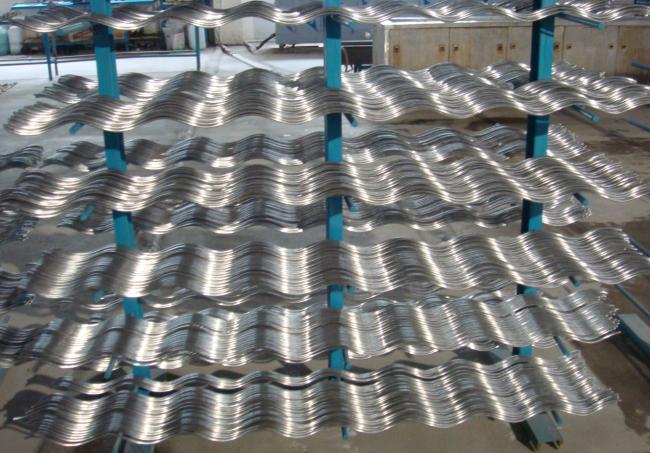

Instruction: Material: Aluminum-clad steel rod.
7.1 Specification
|
Model |
Dia. range | Length of Structural Reinforcing Rods (mm) | Length of Dead-end Component (mm) |
Weight (kg) |
Failing Load(KN) | Universal Scheme | |||
|
MIN(mm) |
MAX (mm) |
Clevis | Thimble | Anchor Shackle | |||||
| ONY 0780 | 7.2 | 7.8 | 1400 | 1000 | 1.10 | 70 |
Reference Appendix1
|
TC 07 | Reference Appendix1 |
| ONY 0880 | 7.9 | 8.8 | 1400 | 1000 | 1.15 | 70 | TC 07 | ||
| ONY 1010 | 8.9 | 10.1 | 1400 | 1000 | 1.28 | 70 | TC 07 | ||
| ONY 1140 | 10.2 | 11.4 | 1540 | 1120 | 1.70 | 90 | TC 10 | ||
| ONY 1280 | 11.5 | 12.8 | 1620 | 1200 | 2.41 | 112 | TC 12 | ||
| ONY 1410 | 12.9 | 14.1 | 1660 | 1240 | 2.55 | 112 | TC 12 | ||
| ONY 1550 | 14.2 | 15.5 | 1840 | 1360 | 2.89 | 112 | TC 12 | ||
| ONY 1730 | 15.6 | 17.3 | 2000 | 1480 | 3.61 | 112 | TC 12 | ||
| ONY 1920 | 17.4 | 19.2 | 2400 | 1800 | 4.68 | 112 | TC 12 | ||
| ONY 2110 | 19.3 | 21.1 | 2600 | 2000 | 5.14 | 112 | TC 12 | ||
Note: 1.All the above scheme are Universal Scheme, if use other link fittings, please illuminate in particular.
2.The above items not include all of our products, if you have any requirement, please consult with our technical Department.
Packing : Cartons , Wooden Case , Etc
