Bolt Type Galvanized Anchor Shackle For Fiber Cable
Price:
Negotiable
MOQ:
100
Delivery Time:
7 days
Brand:
HC , OEM
Product Description
Anchor Shackle For Fiber Cable
U anchor Shackle is one type of Link fitting for fiber cables.
to connect the insulator string and suspend to tower and other overhead line hardware.
Material with Hot dip galvanized steel ,Ductile iron,grade 604512

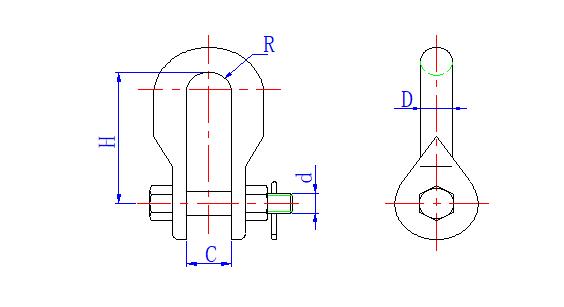

| Model | Dimension(mm) | Failing Load (KN) |
Weight (KG) |
||||
| c | d | D | H | R | |||
| U-6 | 22 | 14 | 16 | 75 | 12 | 60 | 0.4 |
| U-7 | 20 | 16 | 16 | 80 | 10 | 70 | 0.5 |
| U-10 | 22 | 18 | 18 | 85 | 11 | 100 | 0.6 |
| U-12 | 24 | 22 | 20 | 90 | 12 | 120 | 1.0 |
| U-16 | 26 | 24 | 22 | 95 | 13 | 160 | 1.5 |
| UL-7 | 20 | 16 | 16 | 120 | 22 | 70 | 0.7 |
| UL-10 | 22 | 18 | 18 | 140 | 24 | 100 | 0.9 |
| UL-12 | 24 | 22 | 20 | 140 | 18 | 120 | 1.1 |

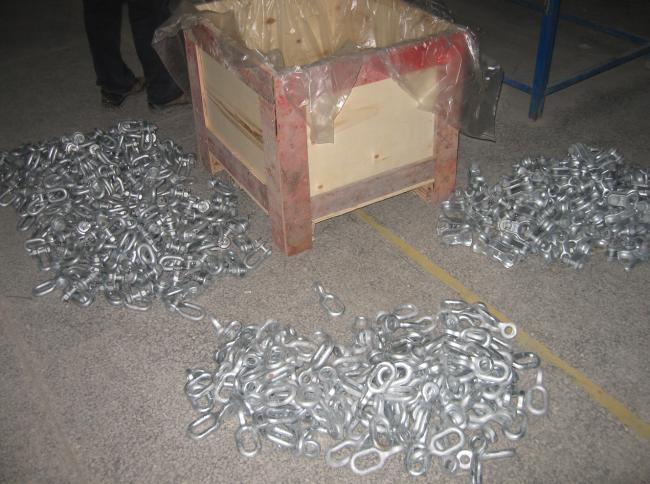

Packing: Wooden case , Cartons , Etc
