Double Helical Suspension Clamp , OPGW Preformed Suspension Clamp
Price:
Negotiable
MOQ:
100PCS
Delivery Time:
7 days
Brand:
HC , OEM
Product Description

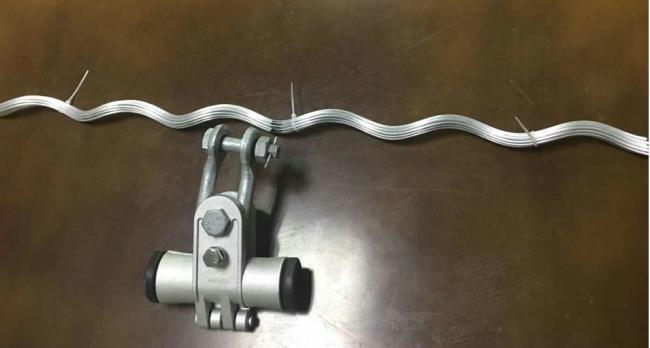

Double Helical Preformed Suspension Clamp Overhead Line for OPGW
Usage and characteristics
OPGW Double Suspension Set is adopted design proposal of dual suspension housings,the whole set is composed of Armor Rods,Outer rods,two sets of suspension housing ,Grounding wire Clamps and mated link fittings.it is mainly used for OPGW installation and supporting on straight pole and tower with high falling head,large span length,and line angle is larger than 30°
2. Product Specification
| Type | Available Dia. of Cable(mm) | Length of Structural Reinforcing Rods(mm) | Length of Outer Rods(mm) | |
| Min.(mm) | Max.(mm) | |||
| OXS-0800 | 7.4 | 8 | 2100 | 1600 |
| OXS-0870 | 8.1 | 8.7 | 2100 | 1600 |
| OXS-0940 | 8.8 | 9.4 | 2200 | 1600 |
| OXS-1010 | 9.5 | 10.1 | 2200 | 1600 |
| OXS-1080 | 10.2 | 10.8 | 2200 | 1600 |
| OXS-1150 | 10.9 | 11.5 | 2200 | 1600 |
| OXS-1220 | 11.6 | 12.2 | 2300 | 1700 |
| OXS-1290 | 12.3 | 12.9 | 2300 | 1700 |
| OXS-1360 | 13 | 13.6 | 2300 | 1700 |
| OXS-1430 | 13.7 | 14.3 | 2400 | 1800 |
| OXS-1500 | 14.4 | 15 | 2400 | 1800 |
| OXS-1570 | 15.1 | 15.7 | 2600 | 2000 |
| OXS-1640 | 15.8 | 16.4 | 2600 | 2000 |
| OXS-1710 | 16.5 | 17.1 | 2600 | 2000 |
| OXS-1780 | 17.2 | 17.8 | 2800 | 2200 |
| OXS-1850 | 17.9 | 18.5 | 2800 | 2200 |
| OXS-1920 | 18.6 | 19.2 | 3000 | 2400 |
| OXS-1990 | 19.3 | 19.9 | 3000 | 2400 |
