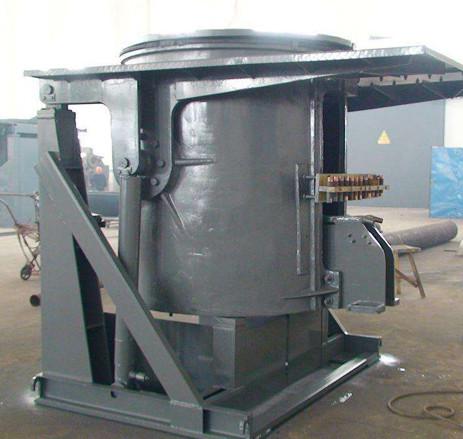

250kg Tilting Type Intermediate Frequency Furnace
250kg Tilting Type Aluminum Intermediate Frequency Induction Steel Melting Furnace
The working frequency of medium frequency induction furnace is between 50~ 2000 Hz, which is widely used in the smelting of non-ferrous and ferrous metals.Compared with other casting equipment, medium-frequency induction furnace has the advantages of high thermal efficiency, short melting time, less loss of alloy elements, wide melting material, less pollution to the environment, and accurate control of the temperature and composition of metal liquid, etc.
Features of induction melting furnace:
- Induction melting furnace power can adjust under different melt capacity requirement.
- Fast melt speed.Can melt Waste iron,steel,copper,aluminum,aluminum cans ,lead,etc all kinds of metals.
- Steel and Aluminum structure furnace body design.Work stable.
- Machine have multiple protection.With Good magnetic isolation,safe and reliable.
- Induction melting furnace are most used in foundry factory,rolling mill etc.
- Induction melting furnace are customized under customer's workshop size.and working environment ,customer's special requirement.
- Machine most used in foundry factory,to use the waste iron recycling to produce ingots.
| Item | Unit | Data | Remark |
| Electric furnace parameter | |||
| Rated capacity | t | 5.0 | Liquid steel water |
| Max. capacity | t | 5.5 | Liquid steel water |
| Working temperature | ℃ | 1600 | |
| Highest working temperature | ℃ | 1750 | |
| Lining thickness | mm | 150 | |
| Inner diameter of induction coil Φ | mm | 1410 | |
| Height of induction coil | mm | 1620 | |
| Electricity parameter | |||
| Transformer capacity | KVA | 3150 | |
| Primary voltage of transformer | KV | 10 | |
| Secondary voltage of transformer | V | 900 | 12-pulse dual output |
| Rated power of intermediate frequency power supply | KW | 3000 | 12-pulse dual input |
| Rated input current | A | 2280 | |
| DC voltage | V | 1200 | |
| DC current | A | 1500 | |
| Exchange efficiency | % | 96 | |
| Successful rate of first startup | % | 100 | |
| Working noise | db | ≦75 | |
| Integrative parameter | |||
| Melting rate(To 1600℃) | T/h | 4.96 | The time of melting is related to the charging |
| Melting power consumption(To 1600℃) | KW.h/T | Less than 530 | |
| Cooling water system | |||
| Circulation flow of cooling water | T/h | 80 | |
| Water supply pressure | Mpa | 0.25-0.35 | |
| Inlet temperature | ℃ | 5-35 | |
| Outlet temperature | ℃ | <55 | |
Technical parameter
| Model | Rated Capacity | Input Voltage(V) | Rate Power(kw) | Rated Frequency(Hz) | Melting Time(min/stove) | Consume Electricity(kw/h/t) | Consume Water(M3/h) | Matched transformer(KVA) |
| GW-0.15 | 150 | 380 | 100 | 1000 | 85 | 800 | 3 | 150 |
| GW-0.25 | 250 | 380 | 160 | 1000 | 85 | 800 | 3 | 180 |
| GW-0.5 | 500 | 380 | 250 | 1000 | 80 | 750 | 5 | 250 |
| GW-1.0 | 1000 | 380 | 500 | 1000 | 75 | 750 | 8 | 500 |
| GW-1.5 | 1500 | 380 | 750 | 1000 | 75 | 720 | 10 | 800 |
| GW-2.0 | 2000 | 380/660 | 1000 | 500 | 75 | 700 | 12 | 1000 |
| GW-3.0 | 3000 | 660 | 1500 | 500 | 75 | 700 | 16 | 1500 |
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
