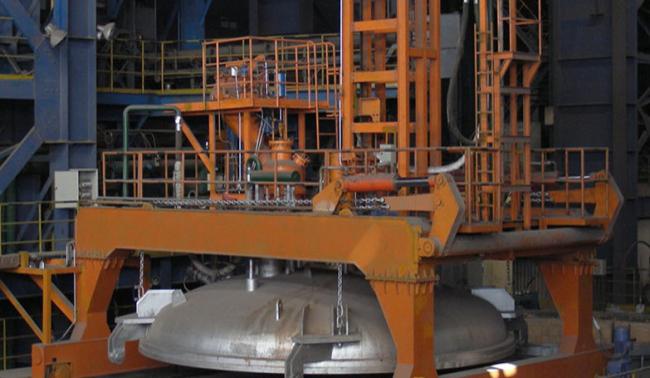

20 Ton Vacuum Degassing Furnace VOD In Steel Making
50kg-20T VD-VOD Vacuum Oxygen Decarbonization Furnace Steel Making Equipment
The vacuum degassing furnace of induction smelting firstly melts the metal (or vacuum) in the atmospheric environment. In the refining stage, the molten metal is degassed in the vacuum state, and the liquid metal is cast in the atmosphere or under the protection of inert gas.We have improved and optimized the structure of the steel-shell induction furnace so that the liquid metal can be degassed and refined under vacuum conditions.We have improved and optimized the structure of the steel-shell induction furnace so that the liquid metal can be degassed and refined under vacuum conditions.
| Place of origin: | Jiangsu, China |
| Condition: | New |
| Specification: | 30T-150T |
|
Type: |
Steel making equipment |
| Voltage: | 380V |
| Power(kw): | Adjustable |
| Dimension(L*W*H) | Customized |
| Certification: | ISO9001 |
| Weight(T): | Customized |
| Warranty: | 1 Year |
| After Warranty Service: | Video technical support, Online support |
1. Composition of VOD(Vacuum oxygen decarbonization furnace)
- Vacuum tank and cover Vacuum cover lifting system
- Vacuum tank car Oxygen blasting system
- Oxygen gun system Argon and nitrogen system
- Vacuum feeding system Vacuum pump system
- Water-cooling system Hydraulic system
- Thread feed system Electric control syste
- Temperature measuring and sampling system
2. Features of VOD(Vacuum oxygen decarbonization furnace)
- VD / VOD type vacuum refining furnace can adopt either single or dual station.
- Overhead, pit or vehicle-mounted arrangement can be selected for vacuum tank.
- Unscrewing and vehicle-mounted movement are optional ways for movement of the vacuum tank
- Furnace operation controlled by Siemens PLC
- Water cooling system
- Advanced designs of the furnace ensure operation reliable and performance excellent.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
