Touch Proof 144H 50mm2 EV Battery Connector IEC Certification
Touch Proof 144H 50mm2 EV Battery Connector IEC Certification
Part No.: 1127
Features:
-
Secondary lock function
-
Cable range: 35~70mm2
-
Poka-yoke
-
HVIL
-
Touch-proof
-
360°shielding
Application:
- PDU
- MCU
- Battery Pack
Specifications:
- Rated current: 250A (70mm2), 200A (50mm2), 150A (35mm2)
- Rated voltage: 800V
- Insulation resistance: ≥5000mΩ(power) ≥1000mΩ(signal)
- Dielectric withstanding voltage:3000V AC (power), 1000V AC(signal)
- Temperature Range: -40~+125 ℃
- IP Rating: IP67
Parameters:
| Rated Current: | 250A (70mm2), 200A (50mm2), 150A (35mm2) |
| Rated Voltage: |
1000V |
| Insulation Resistance: | ≥4000mΩ(power)≥1000mΩ(signal) |
| Dielectric Withstanding Voltage: | 3500V AC (power), 1000V AC(signal) |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67&IP6K9K,IPXXB |
| Application: | Motor controller, battery, driving system, charging system |

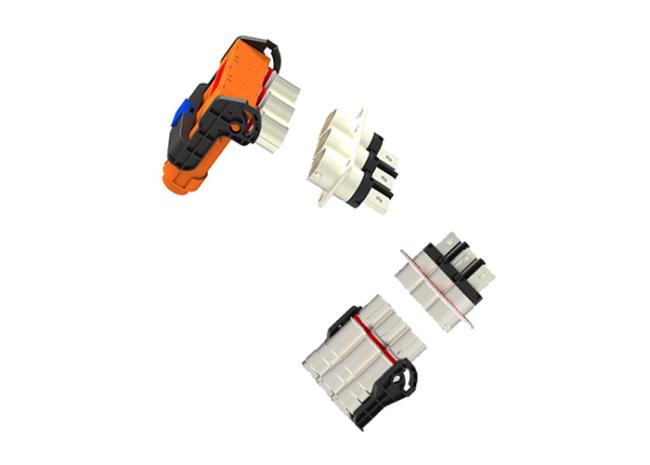

Product Pictures:
Drawings:

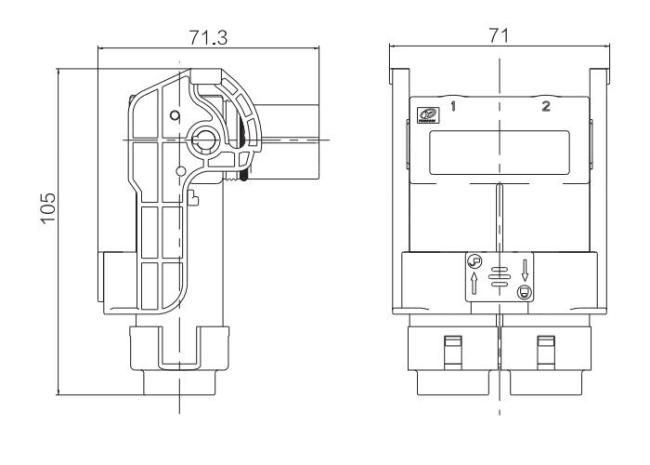

C959 2pin 90° Right Angle plug

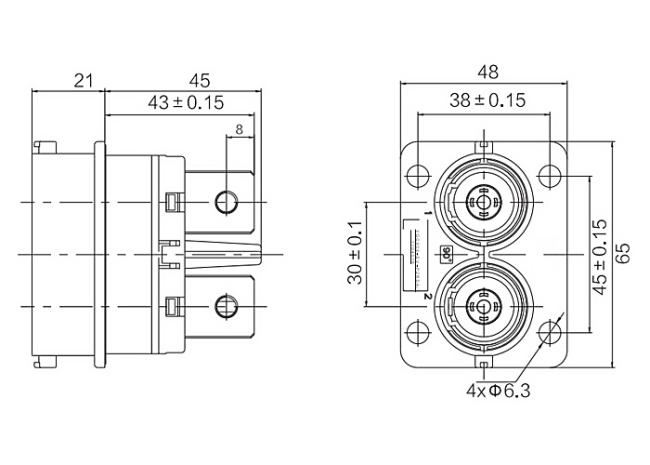

C959 2pin Receptacle

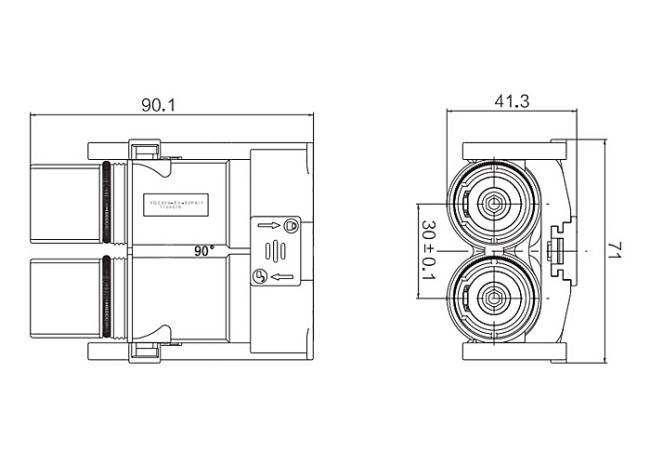

C959 2pin 180°plug
C959 3pin 180°plug

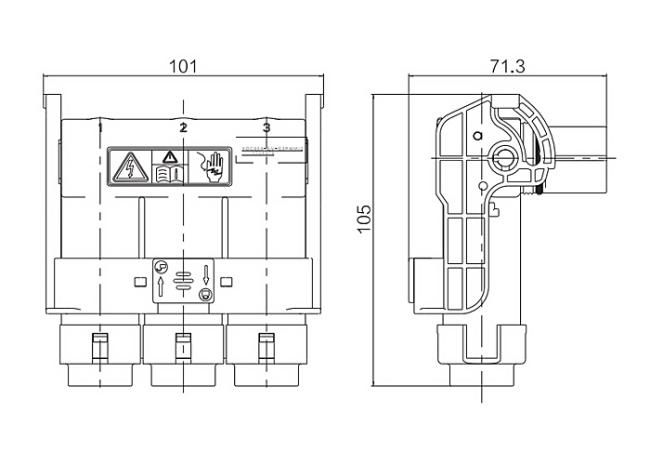

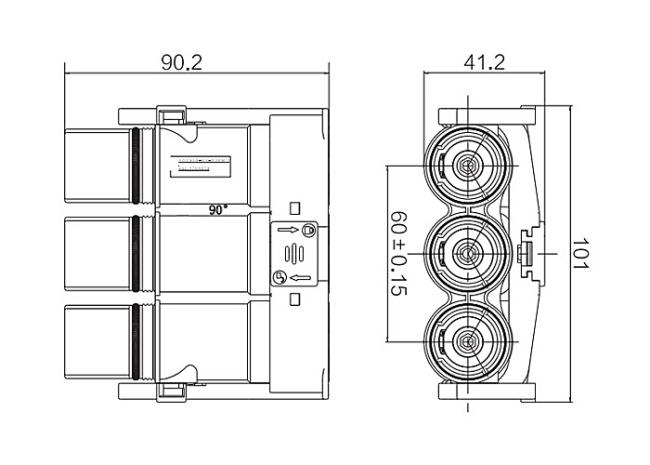

C959 3pin 90° Right Angle plug

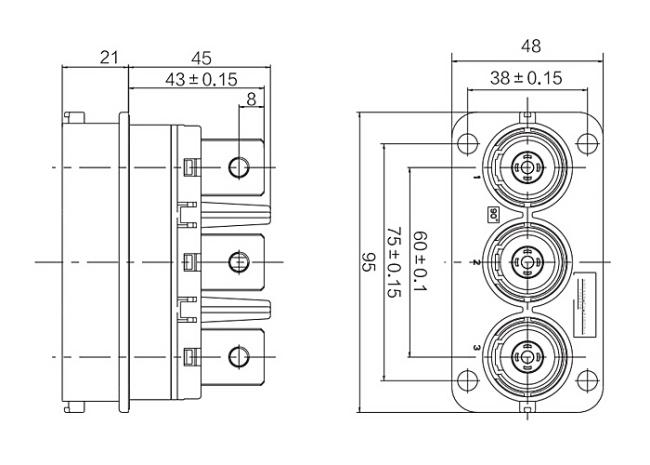

C959 3pin Receptacle

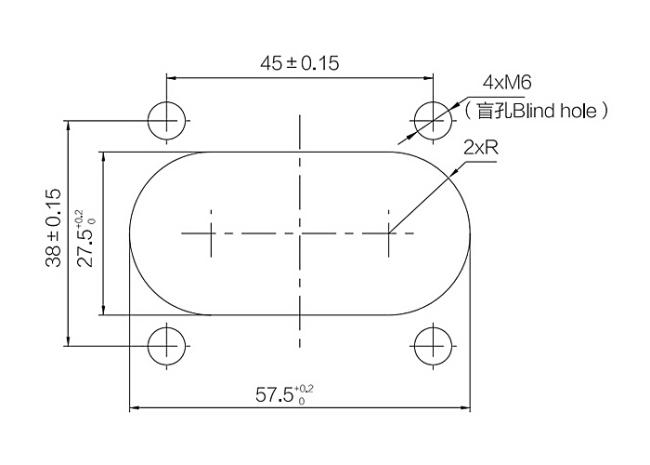

C959 2pin Mounting Hole Design

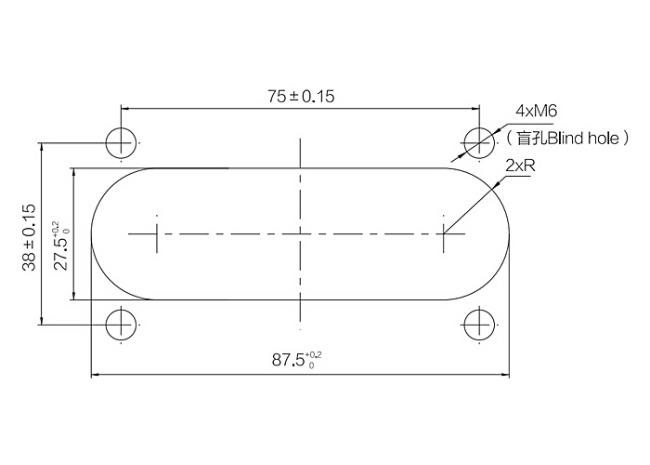

C959 3pin Mounting Hole Design
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

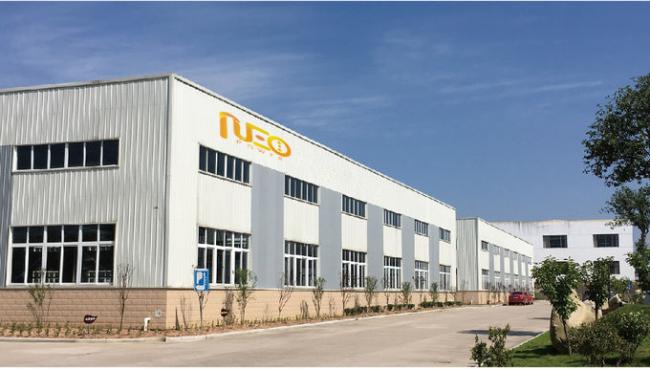

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
