1.5T 2 Stage Smooth Hydraulic Telescopic Transmission Jack For Auto Repair / Shops / Training
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description
1.5T Jack: 2-Stage Telescoping, Smooth Hydraulics for Auto Repair/Shops/Training
Product Specifications
| Parameter Category | Specific Value |
|---|---|
| Model No. | YD05-008 |
| Lifting Capacity - 1st Stage | 3300 LBS (1500 KGS) |
| Lifting Capacity - 2nd Stage | 2200 LBS (1000 KGS) |
| Lowered Height | 37" (940 mm) |
| 1st Stage Height | 56" (1422 mm) |
| Full Raise Height | 74.75" (1898 mm) |
| Base Dimension | 31" × 31" (787 mm × 787 mm) |
| Gross Weight (G.W.) | 194 LBS (88 KGS) |
| Net Weight (N.W.) | 176 LBS (80 KGS) |
| Package Size | 15" × 22.4" × 34.6" (38 CM × 56 CM × 88 CM) |
Product Details
The YD05-008 1.5-Ton Double-Ram Hydraulic Transmission Jack is a high-performance auxiliary tool tailored for professional automotive repair scenarios. It combines durable structure, smooth operation, and flexible adaptability to provide comprehensive support for transmission maintenance work.
- Super Durable Structure: Constructed from heavy-duty solid alloy steel with excellent tensile and wear-resistant properties. Features a 31" × 31" wide base for even pressure distribution and enhanced stability.
- Smooth Hydraulic Operation: Manual hydraulic system provides stable lifting/lowering without jamming, allowing precise control of transmission positioning.
- 2-Stage Telescoping & Versatility: Height adjustment from 37" to 74.75" with differentiated load capacities (1500 KGS for 1st stage, 1000 KGS for 2nd stage) for flexible adaptation to various transmissions.

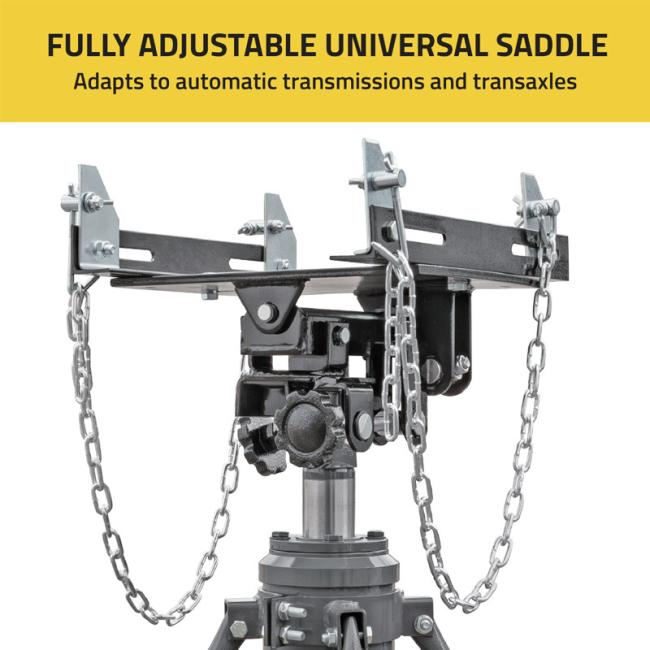

- Universal Saddle Adaptability: Fully adjustable saddle accommodates different transmission types with multi-angle positioning for secure contact and operational safety.
Application Scenarios
- Professional Auto Repair Shops / 4S Stores: Ideal for transmission repair and maintenance of sedans, SUVs, and light trucks with its versatile lifting capacity.
- Automotive Driveline Specialty Shops: Supports various transmission components with its universal saddle and precise hydraulic adjustment.
- Commercial Vehicle Maintenance Stations: Handles heavier transmissions of light trucks and vans with its 1500 KGS 1st stage capacity.
- Automotive Repair Vocational Training: Excellent teaching tool for demonstrating professional repair techniques and safety procedures.
Frequently Asked Questions
Q1: The load capacities of the 1st stage and 2nd stage are different. How to choose the corresponding stage during use?
A1: Select according to transmission weight: Use 1st stage (1500 KGS) for weights between 1000-1500 KGS. For weights ≤1000 KGS, either stage can be used based on required height. Never exceed the load capacity limit of the current stage.
Q2: If the lifting/lowering speed slows down, what might be the reason?
A2: Likely due to insufficient hydraulic oil or contaminated oil. Check oil level and add/replace with specified hydraulic oil. Operate handle 2-3 times to remove air from system.
Q3: How to adjust the universal saddle for different transmissions?
A3: 1) Loosen saddle bolts; 2) Adjust position to match transmission shape; 3) Fine-tune height if needed; 4) Tighten bolts and test stability before operation.
Q4: The product weighs 88 KGS. How to move it conveniently?
A4: Use a flat trolley for short distances on smooth floors, or have two people carry it. Never drag by hydraulic handle or telescopic column.
