Product Description

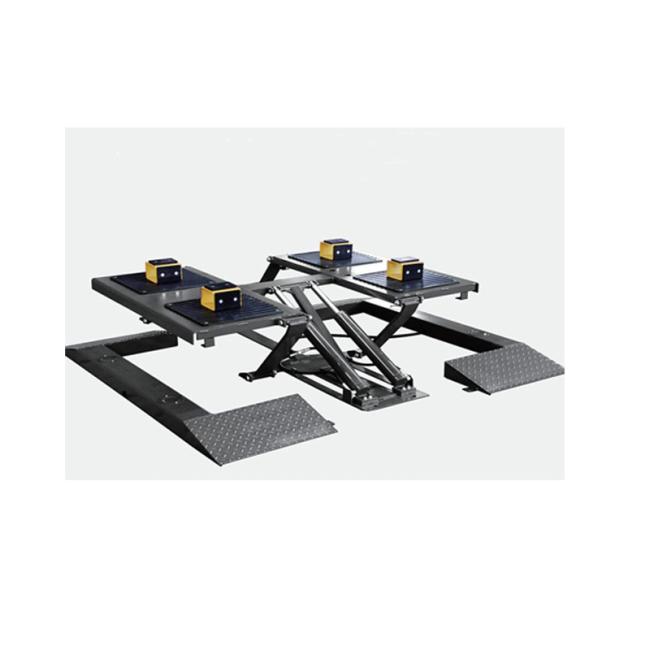

YD07-002 10,000-LB Car Lift
Professional heavy-duty car lift with 10,000 lb (4,545 kg) capacity, designed for low-height maintenance of heavy vehicles and light trucks.
Product Specifications
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD07-002 10,000-LB Car Lift |
| Model No. | YD07-002 |
| Capacity | 10,000 LBS (4,545 KGS) |
| Lifting Height | Min Height: 5.31" (10 CM) Max Height: 21.45" (54.5 CM) |
| Electric Motor | 2 HP, powerful for heavy-load lifting |
| Voltage | Single phase: 230 V |
| Weight | Main Unit Gross Weight: 1034 LBS (470 KGS) Main Unit Net Weight: 990 LBS (450 KGS) Accessory Package G.W.: 88 LBS (40 KGS) Accessory Package N.W.: 83.6 LBS (38 KGS) |
| Package Size | Package A: 92.5"*85.5"*5.9" (235*218*15cm) Package B: 33.6"*14.56"*14.56" (85.5*37*37cm) |
Core Features
- 4545kg Ultra-Heavy Load Capacity: Sturdy Q355 low-carbon alloy steel frame with 16mm main beam thickness and 510MPa tensile strength.
- 10-54.5cm Low-Rise Design: Accommodates ultra-low chassis vehicles without removing chassis guards.
- 2HP High-Power Motor: All-copper coil motor with 1.5kW output power and efficient hydraulic system (80mm cylinder).
- Triple Safety Protection: Mechanical safety lock (3 positions), anti-slip workbench, and overload protection system.
- Durable Construction: Sandblasted and double-layer fluorocarbon painted surface (90μm thick) with 18+ year lifespan.
Technical Advantages
- Frame deformation limited to 0.4mm under 10,000-LB load
- Lifting speed of 8mm/sec (10cm to 54.5cm in 5.5 minutes)
- High-precision hydraulic filter (≥5μm filtration)
- Diamond anti-slip patterns with 3mm rubber pads (friction coefficient ≥0.98)
- 150% load-bearing redundancy in locked position
Compatible Vehicles
- Heavy SUVs (Toyota Land Cruiser, Jeep Wrangler)
- Light-duty trucks (Foton Ollin, JMC Shunda)
- Medium/large family cars (Mercedes-Benz S-Class, BMW 7-Series)
- Commercial light trucks (≤4545kg)
Operation
Motor-driven hydraulic lifting with button controls. Manual safety lock activation and auxiliary support feet for balance adjustment.
