1000lbs Pneumatic Moto Lift: 680kg Capacity, 178-940mm Ht for Repair/4S/Modification
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description

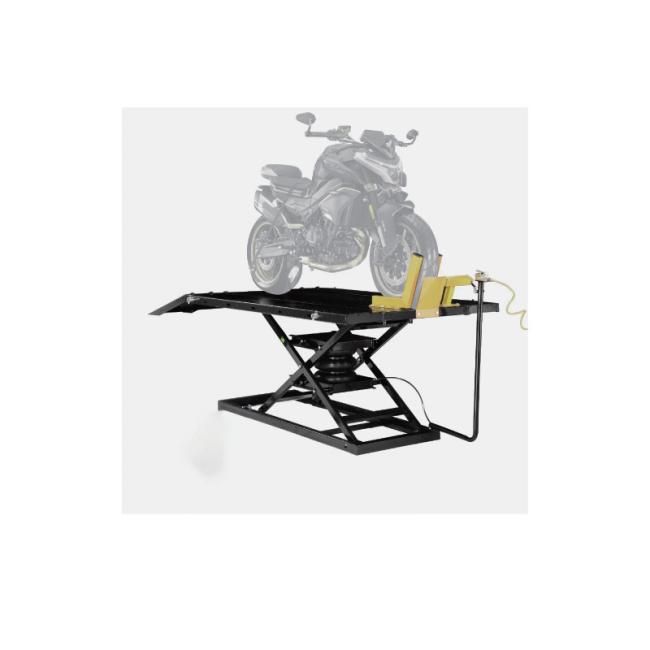

YD08-005A 1,500lbs (680KGS) Pneumatic Motorcycle Lift
High-efficiency pneumatic lift designed for medium and heavy-duty motorcycle maintenance, featuring exceptional load capacity, low minimum height, and rapid pneumatic lifting.
Product Specifications
| Parameter Category | Specific Value |
|---|---|
| Model No. | YD08-005A |
| Product Name | 1,500lbs (680KGS) Pneumatic Motorcycle Lift |
| Capacity | 680KGS (1,500lbs) |
| Minimum Lifting Height | 178MM (7") |
| Maximum Lifting Height | 940MM (37") |
| Table Size | 2000MM × 1240MM (78.7" × 48.8") |
| Lifting Type | Pneumatic |
| Pressure Range | 1.6MPa |
| Net Weight (N.W.) | 254KGS (560Ib) |
| Package Size | 2035MM × 870MM × 390MM (80.1" × 34.25" × 15.35") |
Key Features
- Superior Load Capacity: 680KGS capacity with reinforced steel construction for heavy motorcycle support
- Optimal Height Range: 178MM-940MM lifting range accommodates low-profile and standing maintenance needs
- Pneumatic Efficiency: 30% faster operation than manual hydraulic lifts with 1.6MPa pressure range
- Enhanced Workspace: Oversized 78.7"×48.8" anti-slip tabletop with tool placement area
Applications
- Professional heavy motorcycle repair shops
- Motorcycle 4S shop after-sales workshops
- Commercial motorcycle maintenance stations
- Motorcycle modification workshops
Frequently Asked Questions
Q: Does the pneumatic drive require additional air source equipment?
A: Yes. Requires air compressor with output pressure ≥1.6MPa (recommended ≥200L volume for continuous operation).
Q: Can it adapt to ultra-low-pressure motorcycles with 170MM chassis height?
A: Not recommended directly. Use 5-8MM rubber pad or select dedicated ultra-thin lift for ≤170MM applications.
Q: How to address air leakage after long-term use?
A: Check/tighten connections, replace damaged pipes (≥2MPa), and replace cylinder seals if needed with original parts.
Q: What precautions for moving the 254KGS unit?
A: Use 2-3 person team or ≥300KGS capacity trolley. Install on level ground with non-slip pads for stability.
