1500LB Moto ATV Lift Hydraulic 14.76" For Home/Shop/ATV Camp
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description

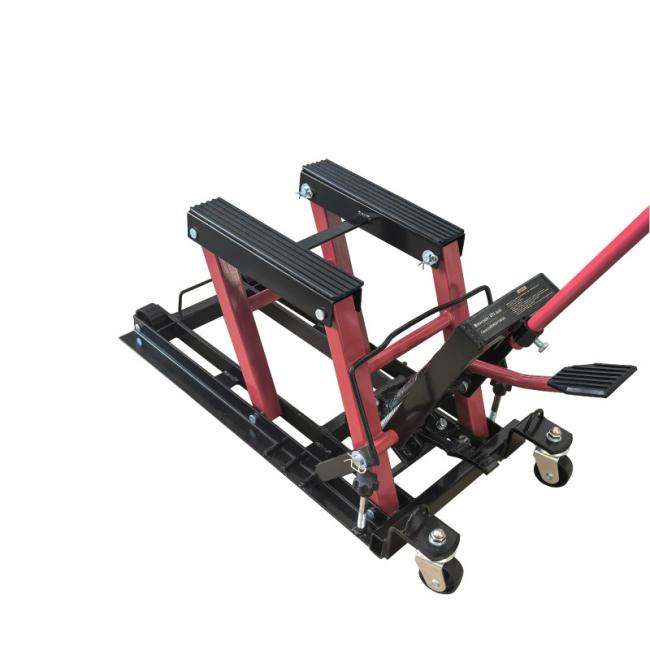

1500LB Moto ATV Lift: Hydraulic, 14.76" Lift for Home/Shop/ATV Camp
Product Specifications
| Parameter Category | Specific Value |
|---|---|
| Model No. | YD08-032 |
| Product Name | 1500LB Motorcycle ATV Lift |
| Capacity | 1500LB (680kg/680KGS) |
| QTY (Quantity per Carton) | 1PC/CTN |
| Gross Weight (G.W.) | 64LB (29kg/29KGS) |
| Net Weight (N.W.) | 61.5LB (28kg/28KGS) |
| Lift Height | 4.5"-14.76" (11.5cm-37.5cm/11.5-37.5CM) |
| Package Size | 32" × 16" × 5" (82cm × 41.5cm × 12.5cm/82x41.5x12.5CM) |
| Core Configuration | Heavy-duty hydraulic pump, lift saddle with rubber grip pads, wide low-profile base, rear-mounted ball bearing swivel casters, welded loops, extra-long operating handle |
| Core Functions | 1500LB load lifting, frame scratch protection, stable base anti-tipping, flexible movement, tie-down reinforcement anti-displacement, labor-saving operation |
| Applicable Models | Motorcycles (including street bikes, cruisers, off-road motorcycles), ATVs (all-terrain vehicles) and other models with weight ≤680kg |
Product Features
- Heavy-Duty Hydraulic Pump: Rated load capacity of 1500LB (680kg) with stable lifting from 4.5" to 14.76" height. Sealed hydraulic system prevents leaks and reduces operating force by 70%.
- Rubber Anti-Slip Saddle: High-density rubber pads protect vehicle frames from scratches while preventing displacement during lifting.
- Wide Base & Swivel Casters: Low-profile design ensures stability while 360° rotating casters (50kg capacity each) enable easy movement between workstations.
- Safety Features: Welded loops for tie-down reinforcement and extra-long ergonomic handle for comfortable, fatigue-free operation with anti-slip grip.
Application Scenarios
- Home Garage Maintenance: Ideal for chassis inspections, oil changes, and tire replacements with one-person operation.
- Repair Shop Operations: Handles multiple models up to 680kg with workstation mobility and customer vehicle protection.
- ATV Camp Emergencies: Compact package (82×41.5×12.5cm) fits in SUV trunks for off-road maintenance with stable performance on uneven ground.
- Dealership Displays: Elevates heavy motorcycles to showcase details while preventing accidental displacement during customer interactions.
Frequently Asked Questions
Q1: Can the 680kg load capacity adapt to a large ATV weighing 650kg?
Yes. 650kg is within the rated capacity (with 5% safety margin). Center the ATV on the saddle and use tie-downs with the welded loops for secure lifting and movement.
Q2: After long-term use, the lifting speed of the hydraulic pump slows down. How to maintain it?
Monthly check hydraulic oil level (add ISO VG32 if low). Clean the oil outlet every 3 months. If speed remains slow, inspect seals and contact after-sales for replacements.
Q3: With a net weight of 28kg, is it difficult for a single person to assemble and carry?
No. Assembly takes 15 minutes without tools. For transport, tilt to engage casters and roll rather than lift.
Q4: When lifted to the maximum height, will the stability of the base decrease?
No. The wide base (0.33㎡ contact area) and low center of gravity maintain stability. Engage caster brakes for additional security during maintenance.
