1100LB Moto Sky Lift: 3Ton Hydraulic, 45CM Lift, 3-Pin for Shop/Race/Warehouse
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description
1100LB Moto Sky Lift: 3Ton Hydraulic, 45CM Lift, 3-Pin for Shop/Race/Warehouse
Product Specifications
| Parameter Category | Specific Value |
|---|---|
| Model No. | YD08-035 |
| Product Name | 1100LB Motorcycle Sky Lift with Hydraulic Cylinder |
| Capacity | 1100LB (500kg/500KGS) |
| Hydraulic Ram Capacity | 6,600LB (3,000kg) |
| Lifting Height | 17.7" (45cm/45CM) |
| Connecting Pin Specifications | 3 replaceable connecting pins with diameters of 18mm, 23mm, and 25mm respectively |
| Gross Weight (G.W.) | 132LB (60kg/60KGS) |
| Net Weight (N.W.) | 105.6LB (48kg/48KGS) |
| Package Specification | 2 units per set, outer package is "L"-shaped wooden case, size 49.2"×21.2"×38.6" (125cm×54cm×98cm) |
Core Features
- 3-ton hydraulic cylinder with 500% safety margin for stable lifting
- Multi-specification connecting pins (18mm/23mm/25mm) for 90% model adaptation
- High-strength load-bearing frame with Q345 steel construction
- Safety locking device prevents falling with 1000kg locking capacity
- "L"-shaped protective wooden case for secure transportation
Product Details

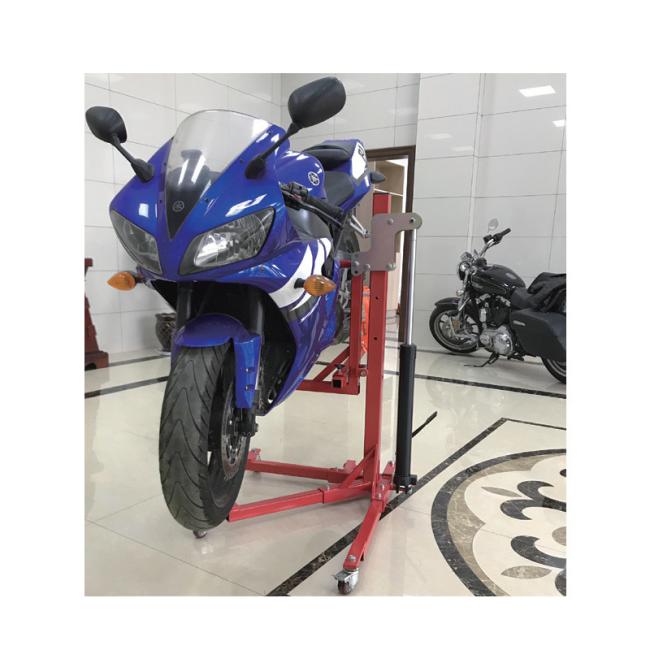

The YD08-035 1100LB Motorcycle Sky Lift is designed for vertical lifting and safe transfer of motorcycles in professional settings. It solves common challenges in repair shops, race logistics, and vehicle warehousing with its robust construction and advanced features:
Key Advantages
- 3-Ton Hydraulic Cylinder: Provides stable lifting with 6,600LB capacity and double-seal design for leak prevention
- Three-Specification Connecting Pins: High-strength alloy steel pins (18mm/23mm/25mm) adapt to various motorcycle frames
- Safety Locking System: Mechanical lock engages automatically at target height with 1000kg load capacity
- Durable Construction: Q345 steel frame with rust-preventive treatment and wear-resistant paint
- Secure Packaging: Custom "L"-shaped wooden case with EPE foam for transportation protection
Application Scenarios
- Professional Motorcycle Repair Shops: Ideal for engine disassembly and chassis overhaul of medium/heavy motorcycles
- Race Logistics: Enables efficient vertical transfer between transport vehicles and workstations
- Warehousing Centers: Maximizes storage space with vertical lifting capability
- Cross-Border Trade: Secure packaging protects high-value motorcycles during long-distance transport
Frequently Asked Questions
Q1: How to confirm if my motorcycle is compatible with this sky lift?
Check your motorcycle's weight (≤500kg) and frame for connecting pin holes (18-25mm diameter, ≥5cm depth). Consult your manual or a professional if unsure.
Q2: What maintenance is required for the hydraulic cylinder?
Check hydraulic oil level every 3 months, clean the oil inlet filter, and replace seal rings if needed. Use No. 46 anti-wear hydraulic oil.
Q3: Is single-person assembly possible?
Two-person assembly is recommended due to the 48kg weight. The process takes 30-40 minutes with proper tools.
Q4: How does the safety locking device work?
The mechanical lock engages automatically at maximum height, with 1000kg capacity to prevent accidental lowering.
