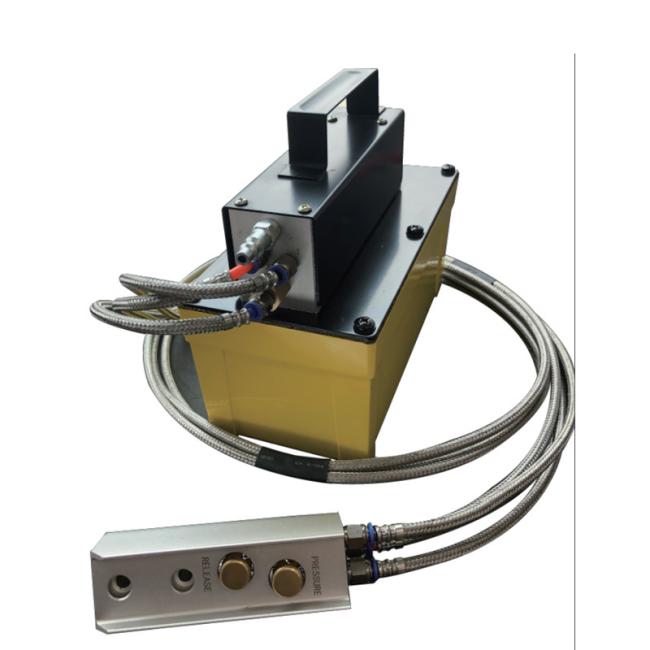

10,000 PSI Air Hydraulic Pump: 0.8/0.16L/min Flow, 2.3L Tank for Petrochemical/Aerospace/Repair
| Parameter Category | Specific Value |
|---|---|
| Product Name | 10,000 PSI Air Hydraulic Pump |
| Input Air Pressure | 110-145 PSI |
| Maximum Output Pressure | 10,000 PSI (approx. 68.95 MPa) |
| Oil Tank Available Capacity | 2.3 L / 0.61 Gal |
| Air Flow Rate | 340 L/min |
| Hydraulic Pump Flow Rate | 0.8 L/min (No Load) / 0.16 L/min (Load) |
| Air Inlet Diameter | 1/4" NPT (13.7 mm) |
| Oil Outlet Diameter | 3/8" NPT (16.66 mm) |
| Net Weight | 18.74 lbs / 8.5 kg |
| Product Dimensions | 12.40*6.77*7.87 in / 315*172*200 mm |
| Core Configuration | High-pressure sealed oil tank, high-flow air-driven system, NPT standard inlet/outlet, pressure adjustment knob, pressure relief protection device (RELEASE PRESSURE), anti-slip base |
The 10,000 PSI Air Hydraulic Pump is a professional power device designed specifically for ultra-high pressure operation scenarios. It addresses the limitations of traditional hydraulic pumps with its advanced features:
- 10,000 PSI Ultra-High Pressure Output: Delivers stable 10,000 PSI (68.95 MPa) output with ≤2% pressure fluctuation, ideal for heavy bolt disassembly and high-pressure applications.
- Dual Flow Efficiency: 0.8 L/min no-load flow for quick tool preparation and 0.16 L/min loaded flow for precise high-pressure operations.
- Large 2.3L Oil Tank: Supports 8+ hours of continuous operation with leak-proof, rust-resistant construction.
- Safety & Portability: Quick pressure relief (≤10 sec) and lightweight design (8.5 kg) for safe, mobile operation.
Petrochemical Maintenance: High-pressure flange bolt tightening with continuous operation capability.
Aerospace Assembly: Precision component pressing with controlled flow rates.
Heavy Equipment Repair: Portable high-pressure power for field repairs.
Power Industry: Safe maintenance of high-voltage equipment with quick pressure relief.
A: Always: 1) Check pressure relief device before use, 2) Ensure tight NPT connections, 3) Wear protective gear, and 4) Release pressure before disassembly.
A: Verify: 1) Output pressure (110-145 PSI) and 2) Air displacement (≥0.3 m³/min). Use regulator if pressure exceeds 145 PSI.
