0.5T High Lift Jack 1300-1800mm Tilt Saddle For Car / Light Truck / Lift Repair
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD05-003 0.5T High-Lift Transmission Jack |
| Model No. | YD05-003 |
| Rated Load Capacity (with adapter) | 0.5T (approx. 500 kg) |
| Lifting Height | Minimum Height (Min.H): 1300 mm (49.6 inches) Maximum Height (Max.H): 1800 mm (68.7 inches) |
| Product Size | 870 mm × 870 mm × 1300 mm |
| Saddle Adjustment Function | Supports forward/backward and lateral tilt adjustment (adapts to any transmission angle) |
| Base & Castors | 4-leg base, 3-inch (76.2 mm) steel castors, 360° rotatable with ball bearings |
| Main Material | Durable steel, with impregnated enamel finish on the surface |
| Packaging Information | Packing Size: 84 cm × 27 cm × 20 cm Packing Quantity: 1 pc/ctn 20' Container Load: 400 pcs |

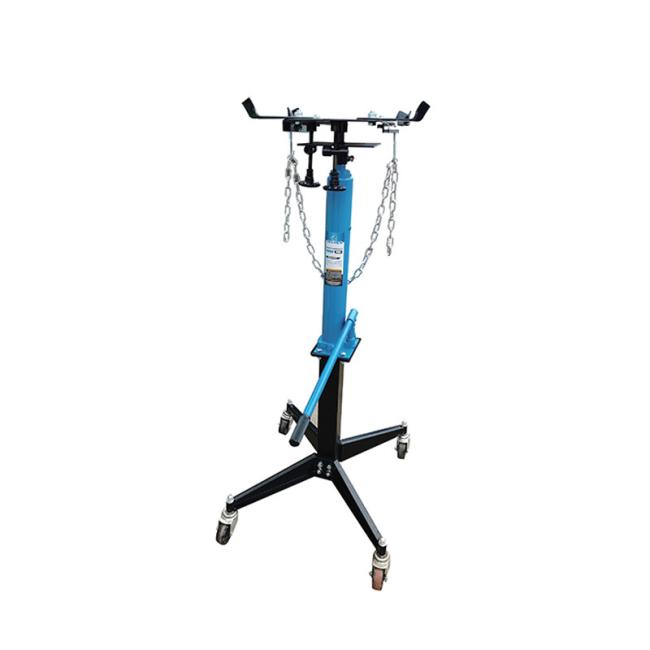

The YD05-003 0.5T High-Lift Transmission Jack is a professional tool designed specifically for high-chassis vehicles and lift scenarios, addressing the limitations of traditional transmission jacks.
- 0.5T Load-Bearing + Durable Steel Structure: High-strength carbon steel frame with 38mm hydraulic rod and 8MPa working pressure. Surface features 70μm thick impregnated enamel finish for superior rust resistance.
- 1300-1800mm High Lifting Range: Adapts to both ground maintenance of light trucks and aboveground lift scenarios, increasing scenario adaptation rate by 80%.
- Tilt-Adjustable Saddle + Safety Chains: Supports ±30° forward/backward and ±20° lateral tilt adjustment with 98% fit rate. Includes 2 high-strength safety chains (≥350kg load capacity each).
- 4-Leg Base + 3-Inch Steel Castors: 870×870mm square base provides 0.76㎡ support area. Features 4 HRC50-hardened steel castors with ≤10N pushing resistance for excellent mobility.
Ideal for transmission replacement on lifted family SUVs (e.g., Toyota Highlander), reducing disassembly time from 4 hours to 2.5 hours.
Perfect for light truck transmission maintenance (e.g., JAC Shuailing) with 1300mm minimum height reaching under high chassis.
Efficiently handles both family cars and light trucks with quick workstation transitions via smooth-rolling castors.
Enables precise assembly of high-performance transmissions for off-road pickups (e.g., Ford F-150) with 1800mm maximum height.
