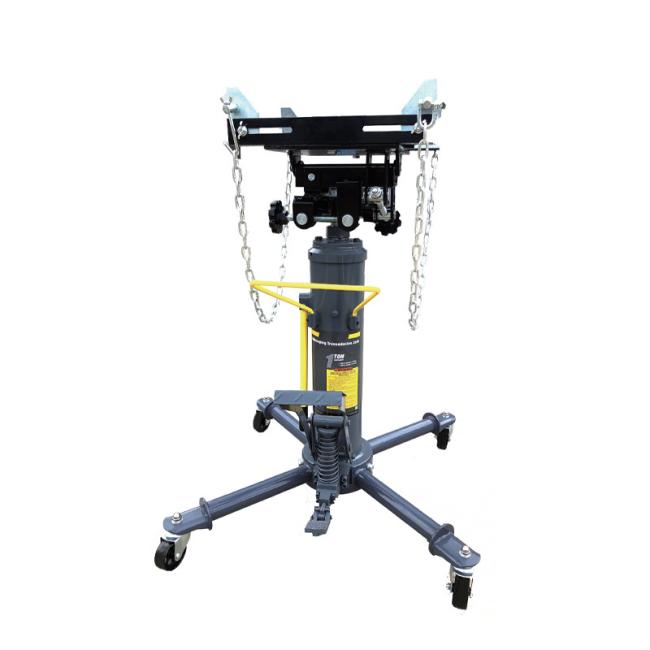

1T Hydraulic Transmission Jack Double Ram 94-190cm Lift For Heavy SUV / Light Truck / Commercial Vehicle Repair
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD05-006 1T Double Ram Transmission Jack |
| Model No. | YD05-006 |
| Capacity | 2200 LBS (1000 KGS) |
| Lifting Structure | Double Ram, 2-Stage Telescoping design, manual hydraulic system |
| Lifting Height | Min Height: 37" (94 cm) Max Height: 74.80" (190 cm) 1st stage height: 1422 mm 2nd stage height: 1898 mm |
| Main Material | Heavy duty solid alloy steel, wide base design |
| Base Dimension | 31" * 31" (787 mm * 787 mm) |
| Weight | Gross Weight (G. W.): 85 KGS Net Weight (N. W.): 77 KGS |
| Package Size | 15"*22.4"*34.6" (38 cm * 56 cm * 88 cm) |
- 1000kg ultra-load-bearing capacity with heavy-duty alloy steel construction for stable support of medium and heavy components
- 94-190cm wide lifting range with 2-stage telescoping for full coverage of multiple scenarios
- Manual hydraulic system with double ram design for stable, labor-saving operation
- 787*787mm wide base with safety chains for maximum stability and anti-tipping protection
- Sandblasted and electrostatic painted surface for corrosion resistance and long service life
Constructed from solid alloy steel with 50mm main load-bearing rods and 550MPa tensile strength. Fully welded and reinforced joints with maximum frame deformation of only 0.3mm under 1000kg load. Surface treatment includes sandblasting rust removal and 80μm electrostatic painting, passing 72-hour salt spray test.
2-stage telescoping design provides segmented adjustment with ±1cm accuracy. First stage (1422mm) for ground maintenance, second stage (1898mm) for lift scenarios. Manual hydraulic operation requires only 12-15kg pressure to lift 1000kg components.
0.62㎡ support area with overturning coefficient ≤0.2 under load. Includes 2 high-strength safety chains (single chain load-bearing ≥600kg) to eliminate component slipping risk during operation.
- Light truck transmission overhaul in heavy-duty auto repair shops
- Heavy SUV engine replacement in commercial vehicle repair stations
- Power component maintenance in engineering machinery workshops
- High-power assembly in auto modification shops
