1T Double Ram Transmission Jack 87-180cm Lift For Heavy SUV / Light Truck / Commercial Vehicle Repair
| Parameter Category | Specific Value |
|---|---|

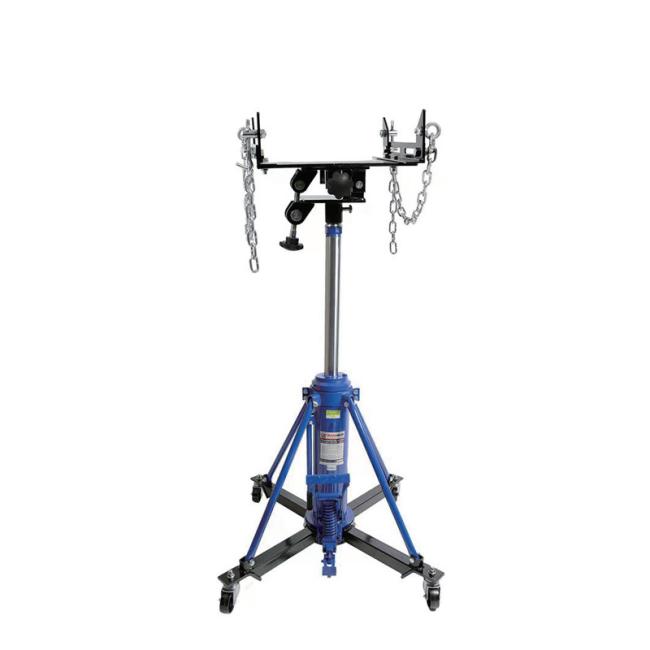

| Product Name | YD05-007 1T Double Ram Transmission Jack |
| Model No. | YD05-007 |
| Capacity | 1 TON (approx. 1000 kg) |
| Lifting Structure | Double pump pole, Two-stage piston design, equal stroke for each stage |
| Lifting Height | Min Height: 34.6" (87 cm) Max Height: 70.86" (180 cm) |
| Piston Stroke | 1st stage stroke: 18.3" (46.5 cm) 2nd stage stroke: 18.3" (46.5 cm) |
| Main Material | Heavy duty solid alloy steel, wide-base design (for stability and balance) |
| Weight | Gross Weight (G.W.): 80 kg Net Weight (N.W.): 75 kg |
| Package Size | 21.65"×14"×33.5" (55 cm × 36 cm × 85 cm, 55x36x85CM) |
| Core Configuration | Double pump pole hydraulic system, two-stage piston cylinder, heavy-duty alloy steel frame, wide-base stable base, anti-slip lifting platform, safety fixing chains, manual pressure relief valve |
| Core Functions | 1000kg ultra-load-bearing support, 87-180cm wide lifting range, double pump pole fast lifting, two-stage piston precise stroke adjustment, wide-base anti-overturning, chain anti-slip |
| Applicable Objects | Heavy SUV transmissions/engines, light truck transmissions, small-sized power components of medium commercial vehicles, 8-cylinder high-power engines (weight ≤1000kg) |
| Operation Method | Double pump pole foot operation (lift): fast pumping for efficient lifting; manual pressure relief valve (lower): slow control of lowering speed to avoid component collision |
The YD05-007 1T Double Ram Transmission Jack is a professional tool designed specifically for efficiency and safety in disassembly and assembly of medium and heavy-duty power components. It addresses the limitations of traditional jacks with its innovative double pump pole and two-stage piston technology.
- 1000kg Ultra-Load-Bearing + Alloy Steel Structure: Heavy-duty solid alloy steel construction with 550MPa tensile strength provides 80% better bending resistance than carbon steel. Features a 45mm hydraulic rod with 10MPa working pressure and minimal frame deformation under load.
- Double Pump Pole + Two-Stage Piston: Doubles lifting efficiency compared to single pump jacks, with segmented height adjustment capability (±1cm accuracy) for precise positioning.
- 87-180cm Wide Lifting Range: Accommodates both low-chassis vehicles and lifted vehicles without additional padding, increasing scenario coverage by 50%.
- Wide-Base + Safety Chains: 0.2㎡ support area with overturning coefficient ≤0.2 and dual 600kg-capacity safety chains ensure maximum stability during operation.
Ideal for maintaining 800kg transmissions in light trucks, reducing overhaul time from 5 hours to 3 hours with its efficient lifting and precise adjustment capabilities.
Perfect for handling 850kg engines in heavy SUVs, with controlled lowering speed to prevent component collision during installation.
Excellent solution for field maintenance of 900kg power components in rough construction environments, with stable wide-base design and quick height adjustment.
