Dolly: 4400LB Load, 40.75"-59" Width-Adjustable for Shop/Bodyshop Dismantled Car Transport
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description

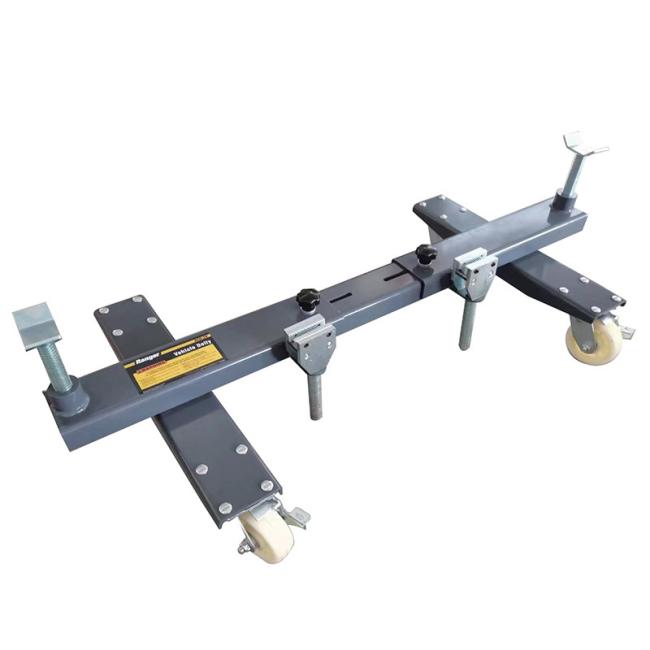

YD10-012B 2-Tonne Adjustable Transportacar Dolly
4400LB Load, 40.75"-59" Width-Adjustable for Shop/Bodyshop Dismantled Car Transport
Product Specifications
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD10-012B 2-Tonne Adjustable Transportacar Dolly |
| Model | YD10-012B |
| Core Purpose | Transports dismantled vehicles; supports single-unit or paired use for flexible shifting and precise positioning of vehicles awaiting repair/faulty vehicles |
| Lifting Capacity | 4,400 lbs. (1,996 kg); single-unit load capacity up to 2 tonnes; paired use can support the full weight of small and medium-sized sedans, SUVs, etc. |
| Dimension Parameters | Overall Height: 10" (254 mm) Width Adjust Range: 40.75"-59" (1,035 mm-1,499 mm) Caster Size: 4.5" (114 mm) Shipping Weight: 87 lbs. (39 kg) Shipping Dimensions: 48"×10"×6" (1,219 mm×254 mm×152 mm) |
| Main Material | High-strength carbon steel (5mm thick, surface electrophoretic anti-rust treatment, no rust in 160-hour salt spray test) + 4.5" heavy-duty nylon casters |
| Core Structure | Width-adjustable frame, support saddles (for easy vehicle alignment), lockable swivel casters, pinch-weld clamps (for easy vehicle loading), heavy-duty nylon casters |
Key Features
- 4,400 lbs. Heavy-Load Support: Single-unit lifting capacity of 4,400 lbs. (1,996 kg) with integrally welded 5mm-thick high-strength carbon steel frame (500N*m torsional strength).
- 40.75"-59" Width Adjustment: Easily adjustable via side knobs to fit most vehicles from compact sedans to medium SUVs without tool replacement.
- Saddle + Clamp Design: Support saddles for quick chassis alignment (60% more efficient loading) and pinch-weld clamps for secure vehicle fixing without chassis scratches.
- Lockable Swivel Casters: 4.5" heavy-duty nylon casters (wear resistance ≥3.8) with 360° rotation and locking function for flexible movement and secure parking.
Application Scenarios
Auto Repair Shops
For chassis maintenance on vehicles like Toyota Corolla (1.1 tonnes after engine removal) with precise positioning and easy movement between workstations.
Bodyshops
For damaged vehicles like Honda Civic (1.2 tonnes after door removal) with angle adjustment for sheet metal repair, reducing adjustment time from 25 to 10 minutes.
4S Stores
For high-end accident vehicles like BMW 3 Series (1.5 tonnes after bumper removal) with scratch-free movement on exhibition floors.
Auto Modification Shops
For vehicles like Volkswagen Golf (1.3 tonnes after wheel removal) with flexible movement between modification workstations.
Frequently Asked Questions
Q1: Can it transport medium SUVs with a curb weight of 2.2 tonnes (e.g., Buick Envision)?
A1: Not recommended for regular transport. For temporary emergency transport (≤8 meters), reduce vehicle weight below 4,400 lbs. and use 4 people. For long-term transport of vehicles over 2.2 tonnes, consider the YD10-013 model (6,000 lbs. capacity).
Q2: The frame gets stuck during width adjustment. How to fix it?
A2: Clean the track with high-pressure air, apply lithium-based grease, and test adjustment. If sticking persists, check knob tightness or contact manufacturer for replacement parts.
Q3: Can the support saddles be replaced individually when worn?
A3: Yes, replace when wear depth reaches ≥3mm. Contact manufacturer for original saddles (45 yuan/piece) and follow replacement steps.
Q4: Can 2 people carry it from the logistics box to the workshop?
A4: Yes, 2 people can easily carry (19.5 kg per person). For single-person carrying, tilt and roll on casters, but not recommended frequently.
