YD17-001~010 2-50Ton Hydraulic Jacks: Overload Protection, 2-Piece Handle for Cars/Trucks/Engineering
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description

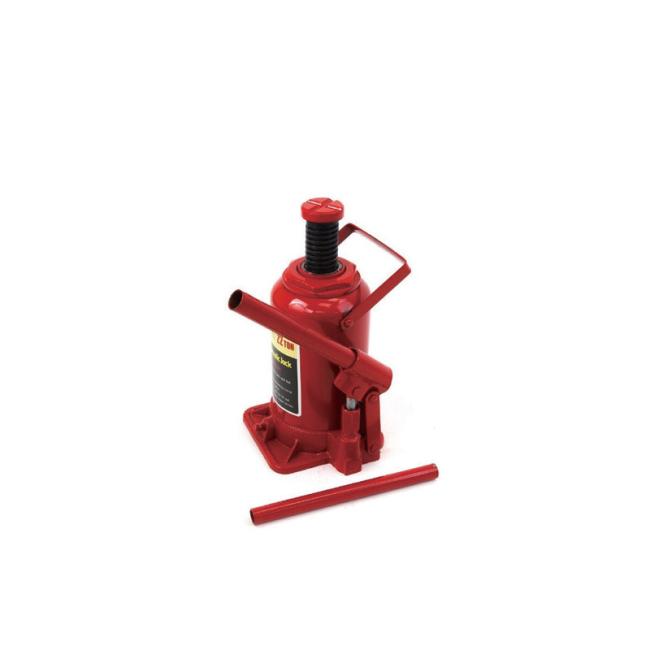

YD17-001~010 2-50Ton Hydraulic Jacks: Overload Protection, 2-Piece Handle for Cars/Trucks/Engineering
| Model | Capacity | Min.H(mm) | Lifting H (mm) | AdjustH (mm) | Max.H(mm) | N.W (kg) |
| YD17-001 | 2 | 150 | 80 | 55 | 285 | 2.2 |
| YD17-002 | 3-4 | 158 | 90 | 60 | 308 | 2.8 |
| YD17-003 | 5-6 | 195 | 125 | 60 | 380 | 3.7 |
| YD17-004 | 8 | 197 | 125 | 60 | 382 | 4.2 |
| YD17-005 | 10 | 205 | 125 | 60 | 390 | 5.4 |
| YD17-006 | 12 | 205 | 125 | 60 | 390 | 6.2 |
| YD17-007 | 15-16 | 210 | 125 | 60 | 395 | 6.8 |
| YD17-008 | 20 | 225 | 140 | 60 | 425 | 9.4 |
| YD17-009 | 30-32 | 245 | 145 | / | 390 | 13 |
| YD17-010 | 50 | 245 | 140 | / | 385 | 19 |
Product Specifications
Basic Information & Common Parameters
| Parameter | Description |
|---|---|
| Product Type | Manual hydraulic jack for static lifting scenarios including vehicle maintenance, equipment support, and component overhaul |
| Core Configuration | Overload protection system (10% above rated capacity), large stable base (25% larger area), notched anti-slip saddle, detachable two-piece handle |
| Working Principle | Manual hydraulic pump operation with pressure range of 25-50MPa (varies by model) |
| Structural Material |
|
| Applicable Scope | Family cars, SUVs, light trucks, engineering equipment, and industrial machinery |
Key Parameter Comparison by Model
| Model | Capacity | Min. Height | Lifting Height | Max. Height | Net Weight | Handle Force |
|---|---|---|---|---|---|---|
| YD17-001 (2T) | 2 Ton | 150mm | 80mm | 285mm | 2.2kg | ≤30N |
| YD17-002 (3-4T) | 3-4 Ton | 158mm | 90mm | 308mm | 2.8kg | ≤35N |
| YD17-010 (50T) | 50 Ton | 245mm | 140mm | 385mm | 19kg | ≤70N |
Product Features
Full Coverage of 10-Grade Loads
- Lightweight Models (2-4T): Portable for car emergencies (2.2-2.8kg)
- Medium Models (5-16T): Ideal for auto shops and small equipment
- Heavy-Duty Models (20-50T): For engineering and heavy equipment
Triple Safety Protection
- Overload protection system prevents cylinder bursting
- Large base with notched saddle for anti-slip stability
- High-strength materials resist deformation under heavy loads
User-Friendly Operation
- Two-piece handle for space-saving storage and flexible operation
- Optimized height design for various vehicle types
- Lightweight construction for easier handling
Application Scenarios
Car Emergency Tire Replacement (YD17-001)
2.2kg jack easily lifts family cars (1.5-2T) for quick tire changes with built-in safety protection.
Truck Chassis Maintenance (YD17-005)
10T capacity with 125mm lift height provides stable support for light truck maintenance.
Generator Installation (YD17-007)
15-16T capacity with anti-slip features for safe equipment installation.
Loader Overhaul (YD17-010)
50T capacity with high-pressure resistant cylinder for heavy machinery maintenance.
