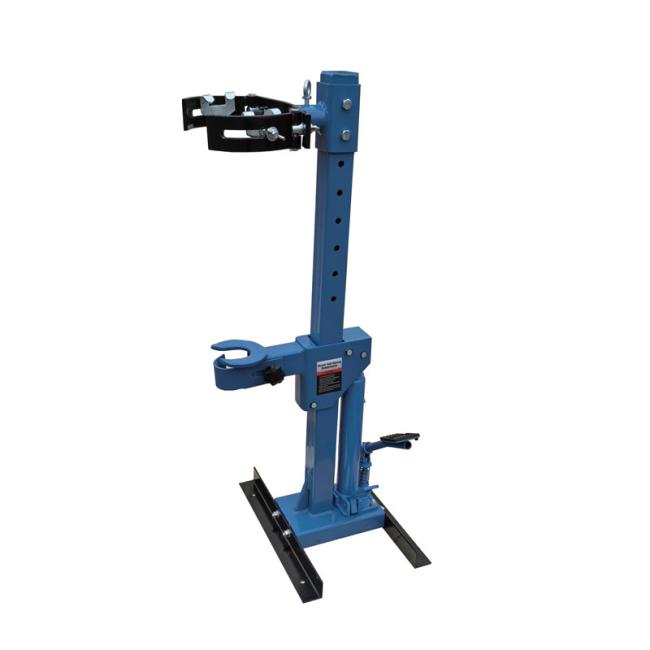

1Ton Hydraulic Spring Compressor: Foot-Operated, 102-160mm for Auto/Hardware Shops
| Common Parameters | Specific Description |
|---|---|
| Model No. | YD23-001 |
| Product Type | 1Ton Hydraulic Spring Compressor, specially designed for spring disassembly, assembly and compression operations. It mainly serves auto repair shops, car 4S stores, shock absorber repair workshops, and hardware accessory factories. |
- 1Ton Rated Load: Hydraulic drive outputs stable compression force for springs with diameter 102-160mm and length 210-570mm.
- Foot-Operated Hydraulic Unit: Single-foot stepping operation with ≤30N force, 40% more labor-saving than ratchet type.
- Plastic-Coated Yokes: Surface treatment increases friction coefficient to 0.8 and prevents spring surface damage.
- Optional Air Pump: Doubles compression efficiency for high-frequency operations.
- Compressed Spring Diameter: 7.8" (20cm)
- Compression Length: 8.26"-22.45" (21-57cm)
- Net Weight: 72.6LB (33kg)
- Gross Weight: 77LB (35kg)
- Package Size: 50.4"×11.8"×7.8" (128×30×20cm)
Stable 1Ton compression force handles small and medium-sized springs efficiently. The 21-57cm long stroke adapts to multiple specification needs without tool replacement.
Foot-operated design frees both hands for assistance. Optional air pump doubles efficiency for high-frequency operations in auto repair shops.
Plastic coating prevents spring slippage and damage. At only 33kg, the compressor is easily portable between workstations.
Efficiently compresses springs from 380mm to 220mm in 15 seconds with no surface damage, saving 33% time compared to ratchet compressors.
With air pump installed, completes spring compression in 8 seconds for professional 4S store maintenance standards.
Tests 50 springs per day with precise length adjustment and no surface damage, 150% more efficient than manual tools.
A: Compression is not recommended as it exceeds the rated capacity and may cause equipment damage or safety risks.
A: Check hydraulic oil level, clean oil circuit blockage, or inspect foot pump seals following the troubleshooting steps.
