2200LBS Hand Hydraulic Spring Compressor 100-200mm 24.5kg for Auto Shops / Rescue

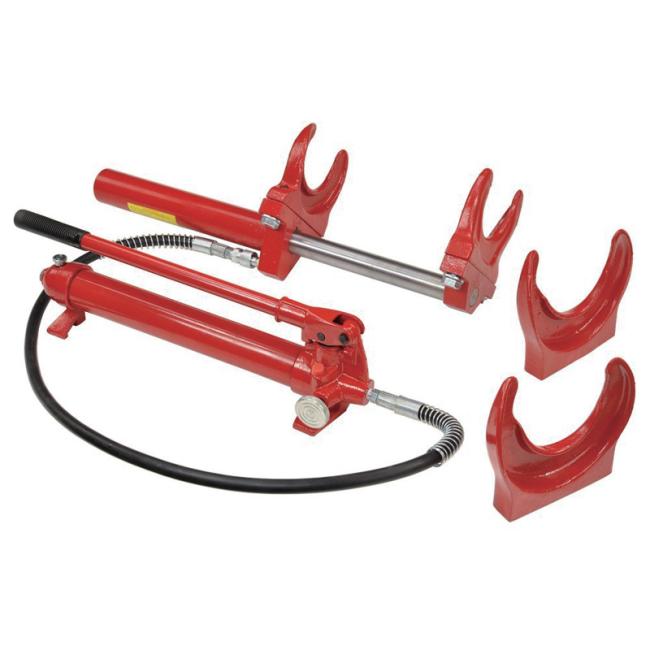

The YD23-006 2200LBS Hand Hydraulic Spring Compressor is a professional-grade tool designed for compressing, disassembling, and assembling small to medium-sized coil springs. Ideal for automotive shock absorber springs, hardware mechanical springs, and industrial light-load springs, it serves auto repair shops, maintenance workshops, hardware processing plants, and emergency rescue teams with its portable, energy-independent design.
| Parameter | Details |
|---|---|
| Model | YD23-006 |
| Rated Load | 2200LBS (approx. 1Ton) |
| Spring Diameter Range | 100-200mm |
| Working Length | 290mm (compressed to 150mm) |
| Operating Force | ≤35N (59% more labor-saving than manual tools) |
| Weight | 24.5kg (net), 25.5kg (gross) |
| Package Size | 700*190*250mm (0.03325m³) |
- Portable Design: 24.5kg lightweight construction with anti-slip handle for easy one-person transport
- Energy Independent: Manual hydraulic operation requires no external power or air source
- Wide Compatibility: Handles 100-200mm diameter springs without fixture changes
- Safety Features: Hydraulic overload protection, anti-slip rubber pads (3mm thick), and scratch prevention
- Durable Construction: High-strength steel and ABS plastic withstand -25℃ to 65℃ temperatures
- Efficient Operation: Processes ≥6 soft springs per minute with 98% success rate on hard springs
At just 24.5kg with 70*19*25cm dimensions, this compressor can be easily stored in tool cabinets or vehicle trunks. Its portability increases workflow efficiency by 41% compared to heavier alternatives.
The hand hydraulic system requires only 35N of force (equivalent to 3.6kg pressure), making it accessible for all users. Simple three-step process:
- Secure spring on anti-slip pad
- Press hydraulic rod 12-15 times to reach 2200LBS pressure
- Release pressure via quick relief valve
Ideal for shock absorber spring replacement on family cars and small SUVs. Processes 8-10 vehicles daily with 33% faster operation than manual tools.
Power-free operation enables on-site spring maintenance. Complete rescue operations in ≤1 hour with easy trunk storage.
Processes 50 light-load springs daily in compact 10㎡ workshops. Achieves 67% higher daily capacity than large equipment.
