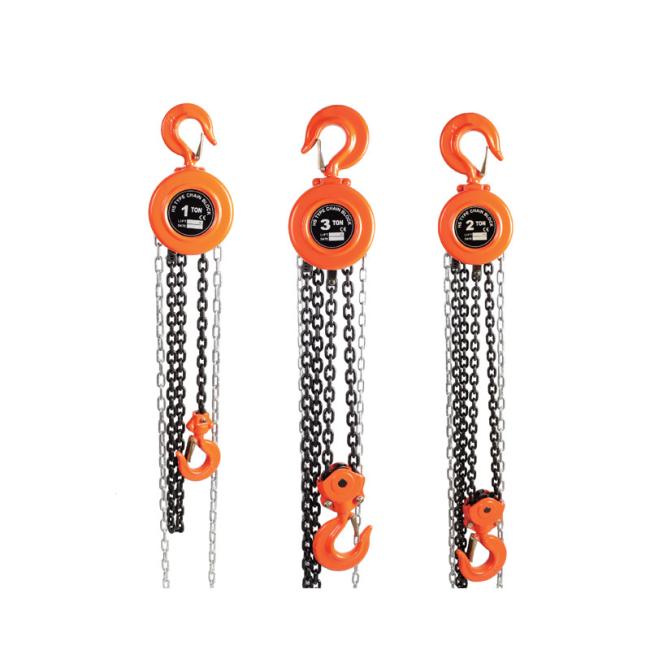

HSZ Chain Block 0.5-20T Load 2.5-3m Lift For Workshop / Construction / Rescue
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description
HSZ Chain Block: 0.5-20T Load, 2.5-3m Lift for Workshop/Construction/Rescue
Product Specifications
Core Parameter Summary Table
| Model | Capacity (T) | Lifting Height (m) | Test Load (T) | Min. Headroom (Hook to Hook, mm) | Chain Pull (Full Load, N) | No. of Load Chain Lines | Chain Spec (mm) | Net Weight (kg) | Gross Weight (kg) | Packing Measurement (L×W×H, cm) | Chain Box Size (cm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YD30-013-0.5T | 0.5 | 2.5 | 0.75 | 255 | 221 | 1 | 6 | 8 | 10 | 28×21×17 | 1.7 |
| YD30-013-1T | 1 | 2.5 | 1.5 | 306 | 304 | 1 | 6 | 10 | 13 | 30×24×18 | 1.7 |
| YD30-013-1.5T | 1.5 | 2.5 | 2.25 | 368 | 343 | 1 | 8 | 16 | 20 | 34×29×20 | 23 |
| YD30-013-2T | 2 | 3 | 3 | 444 | 314 | 2 | 6 | 14 | 17 | 33×25×19 | 25 |
| YD30-013-3T | 3 | 3 | 4.5 | 486 | 343 | 2 | 8 | 24 | 28 | 33×29×20 | 3.7 |
| YD30-013-5T | 5 | 3 | 7.5 | 616 | 383 | 2 | 10 | 36 | 45 | 45×35×24 | 5.3 |
| YD30-013-10T | 10 | 3 | 12.5 | 700 | 392 | 4 | 10 | 68 | 83 | 62×50×28 | 9.7 |
| YD30-013-20T | 20 | 3 | 25 | 1000 | 392 | 8 | 10 | 156 | 194 | 70×45×75 | 19.4 |
General Basic Parameters
| Parameter Category | Specific Description |
|---|---|
| Product Positioning | Designed for power-free, high-altitude heavy-load lifting scenarios, serving fields such as factory workshop equipment maintenance, construction material hoisting, warehouse cargo handling, and outdoor rescue. 8 models cover a load range of 0.5T-20T, balancing lightweight portability and industrial-grade load-bearing capacity. |
| Core Features |
|
| Structure & Material |
|
Product Details
Centered on heavy-load safety + labor-saving durability + power-free universality, the YD30-013 Series HSZ Type Chain Block is optimized for power-free heavy-load lifting scenarios.
Double-Bearing + High-Strength Chain, Effortless Heavy-Load Lifting
Double-Bearing Transmission, Excellent Efficiency and Durability
- Significant Labor-Saving Effect: Transmission resistance reduced by 30%, lifting efficiency increased by 25%.
- Less Wear: Bearings evenly distribute radial force, reducing wear by 40% and extending service life to 1.5 times ordinary products.
Grade 80 Alloy Chain, Rugged, Rust-Proof and Non-Jamming
- Strong Load-Bearing Capacity: Breaking strength much higher than ordinary chains.
- Excellent Rust Resistance: Double rust-proof treatment of hot-dip galvanizing + passivation.
- Smooth Meshing: Chain pitch accuracy ≤0.1mm for precise sprocket matching.
Multiple Safety Protections, No Risks in Heavy-Load Operations
"Lock-on-Release" Brake, More Reliable Anti-Fall Protection
- Brake locks instantly when hand chain is released, preventing heavy object from falling.
- Brake system passes 1,000 heavy-load start-stop tests without performance deterioration.
Anti-Detachment Hook + Compact Structure, Safe and Portable
- Anti-Detachment Hook: Automatically resetting safety latches with opening angle ≤60°.
- Lightweight Design: 0.5T model weighs only 8kg; 20T model features modular split design for easy transport.
Application Scenarios
Factory Workshop Equipment Maintenance (Core Scenario: Models 0.5T-5T)
Scenario Requirement: Lifting a 5T machine spindle out of equipment cavity (2.5m height) during power outage in narrow workspace.
Result: Reduces operators by 70%, shortens lifting time from 1 hour to 20 minutes.
Construction Material Hoisting (Scenario 2: Models 3T-10T)
Scenario Requirement: Hoisting 8T steel bundle to 10m-high platform at power-free construction site.
Result: Reduces hoisting cost by 80%, works continuously for 1 month in dusty environments.
Warehouse Cargo Handling & Outdoor Rescue (Scenario 3: Models 0.5T-20T)
Scenario Requirement: Moving 15T shelf in warehouse; lifting 5T vehicle in outdoor rescue.
Result: Increases warehouse efficiency by 80%; completes vehicle rescue in 30 minutes without power.
Frequently Asked Questions
Q1: How to choose the right model based on actual needs?
A1: Choose based on load, height, and scenario:
- Select model with rated load 20% higher than actual load
- Models 0.5T-1.5T have 2.5m lift; 2T-20T have 3m lift
- Prioritize galvanized chain models for outdoor use
Q2: The chain jams during lifting. Is this a fault? How to solve it?
A2: Usually operation or maintenance issue:
- For chain entanglement: Pull hand chain slowly in reverse direction
- For insufficient lubrication: Add lithium-based grease (Model Li-2)
Q3: After long-term use, the braking effect decreases. How to adjust it?
A3: Adjust brake clearance:
- Loosen brake spring fixing nut
- Rotate adjustment bolt clockwise (1/4 turn each time)
- Replace brake pad if wear ≥1mm
Q4: When used outdoors at low temperatures (-25℃), will the chain become brittle and the brake fail?
A4: No, with proper preparations:
- Grade 80 alloy chains maintain toughness at -25℃
- Brake grease is low-temperature type resistant to -30℃
- Preheat components by pulling hand chain empty 10-15 times
