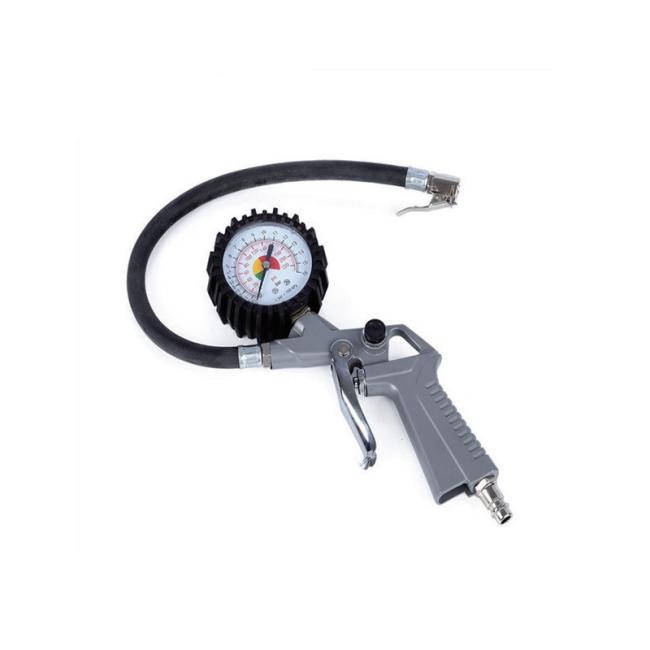

Tire Gauge w/Inflation Gun: 0-15bar, Short Hose for Cars/Motorcycles/Bicycles
Professional-grade tire pressure gauge with integrated inflation gun featuring a compact 330mm short hose design for cars, motorcycles, and bicycles. Precision measurement (0-15 bar/0-220 psi) with dual-unit display and rugged construction for reliable performance.
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD31-002 |
| Working Pressure Range | 0-15 bar / 0-220 psi |
| Interchangeable Gauge Scale | Yes (supports bar/psi dual-unit switching) |
| Air Inlet Specification | G1/4" (supports interface replacement) |
| Hose Length | 330mm (0.33 meters) |
| Reader Unit Size | 60mm (dial diameter) |
| Applicable Vehicles | Cars, motorcycles, bicycles, and most other vehicle types |
| Core Functions | Rapid tire pressure detection + precise tire inflation (integrated design) |
- Gauge Movement: Copper precision movement with ±1% accuracy, 60mm shatterproof PC dial
- Short Hose: PVC reinforced (6mm ID/10mm OD), pressure resistant ≥30 bar, flexible in -20℃ to 60℃
- Inflation Gun: Zinc alloy die-cast body with chrome plating, compatible with Schrader/Presta valves
- Interface: G1/4" brass air inlet, supports G3/8" conversion (adapters sold separately)
- 330mm short hose reduces storage space by 70% compared to standard 1m hoses
- Integrated measurement/inflation eliminates tool switching (saves 30% operation time)
- 280g lightweight design (comparable to smartphone) for easy portability
- ±0.025 bar accuracy in 0-10 bar range for reliable tire pressure readings
- 60mm high-contrast dial provides instant readings in all lighting conditions
- Push-type switch requires only 4N force for effortless operation
- Impact-resistant zinc alloy body survives 1m drops onto concrete
- Oil-resistant nitrile rubber seals maintain integrity through 500+ uses
- Wear-resistant PVC hose coating prevents damage during storage
Quickly check and adjust tire pressure before commutes using 12V car compressors. Compact size fits in glove boxes (150×100×80mm).
Adapts to Presta valves for bicycle tires. Fits in backpack side pockets (≤100mm diameter) for trailside adjustments.
Enables rapid servicing (4 tires in 2 minutes) at car washes and shops. Multiple units store neatly in tool carts.
A: No - the 330mm hose actually reduces gas residue by 66% compared to longer hoses, providing more accurate pressure readings after inflation.
A: Either (1) use optional hose extensions or (2) slightly turn steering to expose valve stems - no tools needed for most vehicles.
A: Simply pry out old gasket (8×3mm) and press in replacement. Includes 2 spare gaskets; replacements available in 5-10 packs.
