Tire Gauge w/Inflation Gun: 0-15bar/300PSI, Short Hose for Cars/Motorcycles/Bicycles
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description

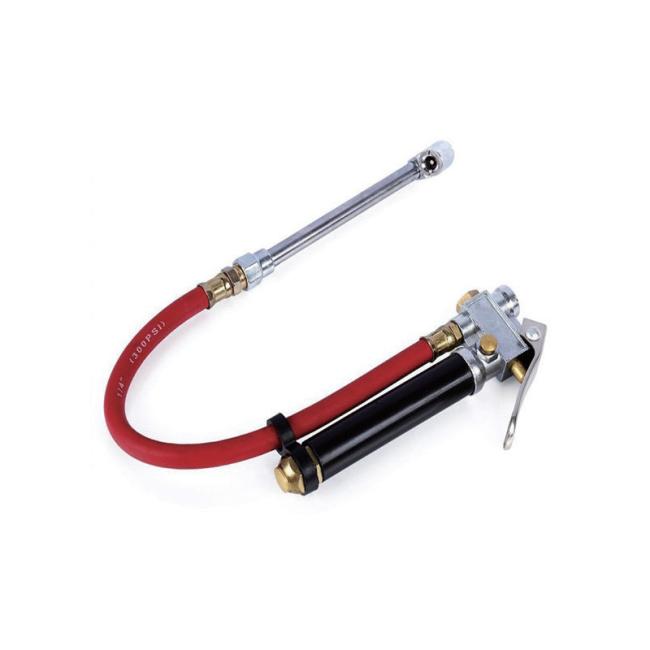

YD31-004 Multi-Vehicle Tire Air Pressure Gauge with Inflation Gun
Professional Tire Pressure Measurement and Inflation Tool for Cars, Motorcycles, and Bicycles
Product Specifications
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD31-004 |
| Working Pressure Range | 0-15 bar / 0-220 psi (compatible with max. 300PSI peak pressure) |
| Interchangeable Gauge Scale | Yes (supports bar/psi dual-unit switching) |
| Air Inlet Specification | G1/4" (standard universal interface) |
| Hose Length | 330mm (0.33 meters) |
| Reader Unit Size | 60mm (dial diameter) |
| Applicable Vehicles | Cars, motorcycles, bicycles |
| Core Functions | Rapid tire pressure detection + precise tire inflation |
Key Features
- High-Pressure Compatibility: Supports up to 300PSI peak pressure for bicycle tires and emergency scenarios
- Precision Measurement: Copper movement with ±1% accuracy in 0-15 bar range
- Compact Design: 330mm short hose and 165mm overall length for easy storage
- Durable Construction: Zinc alloy gun body and reinforced PVC hose withstand high-pressure use
- Multi-Vehicle Support: Works with Schrader and Presta valve stems for cars, motorcycles, and bicycles
Technical Details
Structure & Materials
- Gauge Movement: Copper precision movement with 60mm high-transparency PC dial
- Short Hose: PVC reinforced high-pressure hose (6mm inner diameter, 10mm outer diameter)
- Inflation Gun Body: Zinc alloy die-cast with chrome-plated rust-proof surface
- Interface Components: G1/4" brass air inlet with ISO 228 standard threads
Operation Method
- Tire Pressure Detection: 1-second reading with simultaneous bar/psi display
- Tire Inflation: Short-hose design reduces gas residue for accurate pressure control
- High-Pressure Adaptation: Built-in pressure buffer for short-term 300PSI inflation
Application Scenarios
Emergency Maintenance for Daily Commuting
- Quickly check and adjust tire pressure before driving
- Compact size fits in car armrest boxes
- Precise measurement prevents uneven tire wear
High-Pressure Inflation for Bicycles
- Supports up to 12 bar (174PSI) for road bikes
- Fits in cycling backpack side pockets
- Gradual inflation prevents tire blowout
Multi-Vehicle Service at Repair Stations
- Single tool for cars, motorcycles, and bicycles
- Compact storage on tool carts
- Lightweight design reduces operator fatigue
Frequently Asked Questions
Q: Why does it support 300PSI when marked for 0-220PSI?
220PSI is the continuous working range, while 300PSI is short-term peak compatibility. The built-in buffer structure allows temporary high-pressure use without damage.
Q: What if the short hose can't reach inner tire valves?
Optional hose extension adapters (500mm/1000mm) are available, or simply turn the steering wheel to access inner valves.
Q: How to handle dial pointer not returning to zero?
Minor deviations (≤0.1 bar) can be manually adjusted using the calibration screw on the back of the dial.
Q: Will it work in low temperatures (-25℃)?
Yes, the hose and seals are low-temperature resistant. For best results, preheat the movement by pressing the switch 3-5 times before use.
