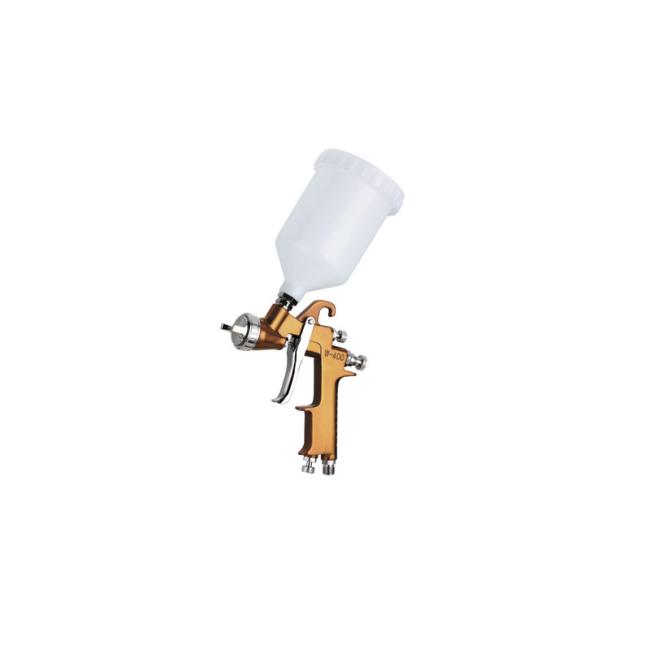

HVLP Spray Gun: 1.4/1.6/2.0mm Nozzles, 50PSI, 600mL Cup for Furniture/Auto/Decoration

Professional-grade HVLP spray gun with 1.4mm/1.6mm/2.0mm nozzle options, 50PSI working pressure, and 600mL gravity feed cup. Ideal for furniture manufacturing, automotive refinishing, and decorative painting applications.

• 1.4mm nozzle - For low-viscosity topcoats (clear coats, water-based paints)
• 1.6mm nozzle - For medium-viscosity coatings (nitrocellulose, acrylic paints)
• 2.0mm nozzle - For high-viscosity primers and industrial coatings

• Double-ring split air cap design for uniform particle distribution (≤40μm)
• Built-in high-precision pressure regulating valve (±1 PSi)
• 70% coating utilization rate (vs. 45% for traditional spray guns)

• Reduces refill frequency by 50% compared to 300mL cups
• High-transparency PC material for easy monitoring
• Thread + nitrile rubber sealing ring prevents leaks

• Gun Body: Aluminum alloy with integrated die-casting (780g), anodized surface
• Nozzle: 304 stainless steel (HRC52 hardness), precision ±0.01mm
• Cup Assembly: Impact-resistant PC material, 60° tilt angle operation

Bulk spraying of wooden doors, cabinets, and furniture components with nitrocellulose or water-based coatings.

Partial renovation of vehicle panels, including primer application and topcoat matching.

Wall painting and wooden door finishing for residential and commercial projects.

A: Fill to maximum 80% capacity (480mL) and maintain proper spraying angles (≤60° tilt).

A: Minimum 0.3m³/min for medium-to-large area spraying; 0.2m³/min only for small emergency jobs.

A: Check coating moisture content, adjust environment (20-25°C,
