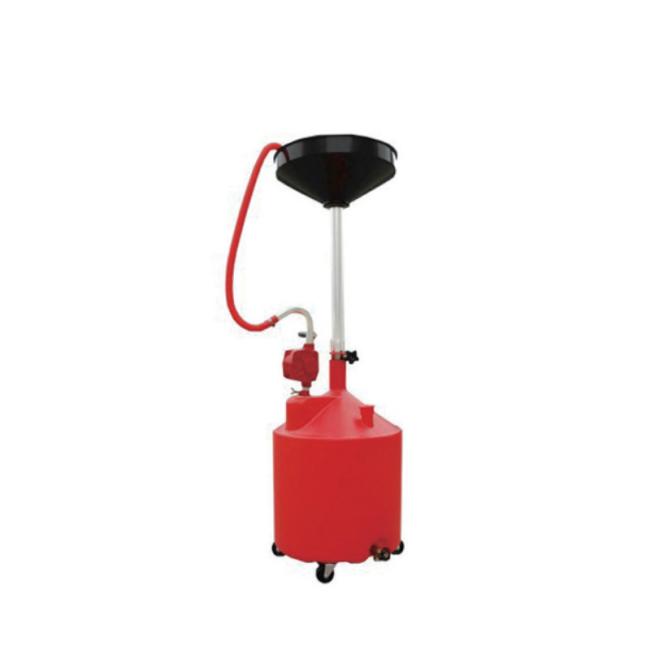

YD44-006 18Gal Oil Drainer: 37-72" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery
Price:
Negotiable
MOQ:
50pcs
Delivery Time:
30-45DAYS
Brand:
YEEDA
Product Description
YD44-006 18Gal Oil Drainer: 37-72" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery
Product Specifications
| Parameter Category | Specific Specification |
|---|---|
| Model | YD44-006 (Industrial-grade heavy-duty mobile oil drainer with hand pump, integrating 18-gallon large capacity, fast oil drainage via hand pump, and ultra-high adaptability) |
| Product Type | HDPE heavy-duty mobile waste oil drainer with iron hand pump |
| Basic Parameters |
|
| Core Structure Configuration |
Oil Storage System
Height Adjustment System
Mobility & Oil Drainage System
|
Key Features
Iron Hand Pump + Dual-Mode Oil Drainage
- 100ml per stroke displacement - drains 75L in 12 minutes (3x faster than natural drainage)
- Cold-rolled steel pump body with double-layer anti-rust coating
- 3/4-inch valve allows both pump-assisted and natural drainage modes
18-Gallon Capacity with Height Adaptability
- Collects oil from 3 heavy-duty trucks or 2 large tractors in single operation
- 37-72 inch height range accommodates medium trucks to large harvesters
- Buckle-locking system prevents pipe sliding during operation
Heavy-Duty Construction
- 3-inch casters with ≥25kg load capacity per wheel
- 5mm thickened HDPE tank withstands 18kg impacts
- Full HDPE construction resists corrosion in extreme environments
Performance Testing
| Test Item | Test Condition | Test Result |
|---|---|---|
| Hand Pump Drainage Efficiency | 75L waste oil drainage via manual pumping | Completed in 12 minutes (6.25L/min) with no leakage |
| Height Adaptation Stability | 72" height with 25L oil pour | No pipe shaking or oil spillage |
| Caster & Pump Stability | 300m movement on gravel with full load + pumping | No jamming or displacement |
| Low-Temperature Resistance | -30℃ exposure then 80℃ oil drainage | No tank damage or drainage issues |
Application Scenarios
1. Mining Equipment Maintenance
- Power-free operation in remote mining areas
- Handles 50L hydraulic oil changes for large excavators
- 3-inch casters navigate gravel terrain
2. Agricultural Machinery Maintenance
- Batch oil changes for multiple tractors
- Muddy field operation capability
- Reduces dumping frequency by 50%
3. Explosion-Proof Truck Repair Shops
- No electrical components - meets explosion-proof requirements
- Efficient manual drainage in restricted environments
- Compact design for workshop mobility
Frequently Asked Questions
Q1: Increased pump resistance or reduced oil discharge?
- Clean pump body impurities with high-pressure water
- Replace worn silicone sealing ring
- Monthly lubrication with food-grade oil
Q2: Casters sinking in mud?
- Install rubber anti-slip covers
- Create temporary paths with boards/plates
- Maintain steady pushing speed
Q3: Leakage at pump-tank connection?
- Tighten connecting bolts
- Replace aging sealing ring
- Quarterly inspection and cleaning
Q4: Can it collect high-viscosity industrial gear oil?
- Designed for ≤200cSt viscosity (vehicle oil)
- ≥300cSt gear oil may cause pump jamming
- Small-dose testing recommended if necessary
